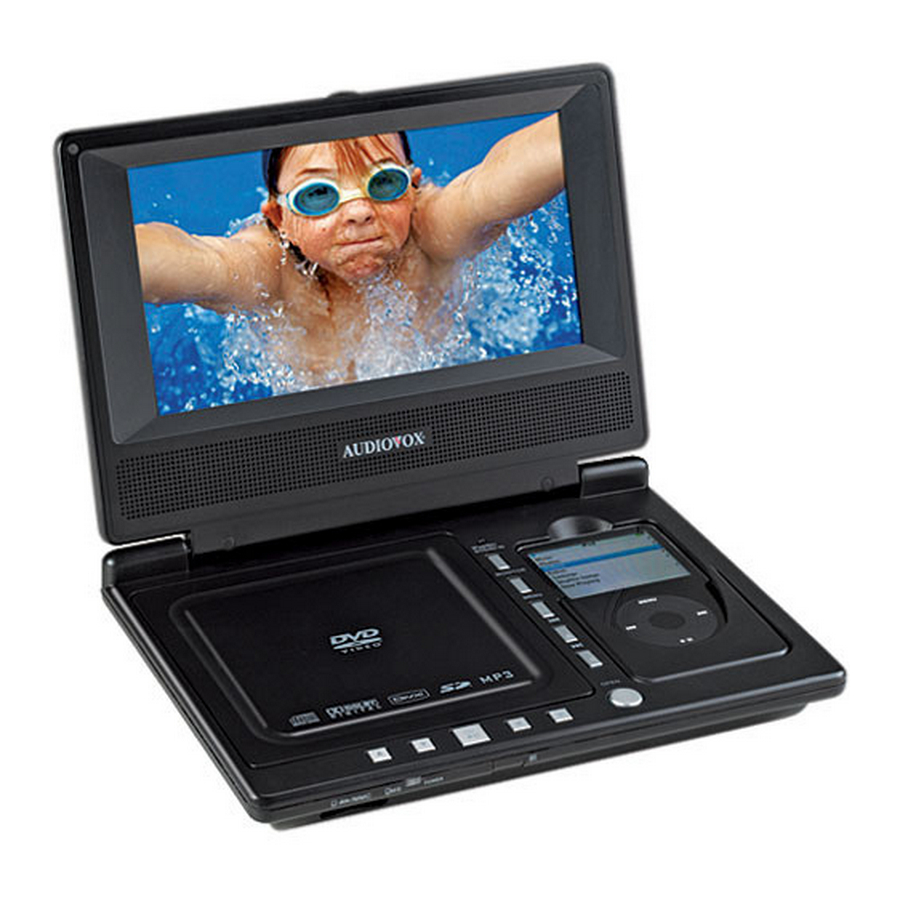

Audiovox D8000IP Instruction Manual

8" lcd monitor and portable dvd with dock for ipod
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
D8000IP
8" LCD MONITOR AND PORTABLE DVD WITH DOCK FOR
IPOD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D8000IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audiovox D8000IP

Summary of Contents for Audiovox D8000IP

  • Page 1 D8000IP 8" LCD MONITOR AND PORTABLE DVD WITH DOCK FOR IPOD...
  • Page 2 An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”...

  • Page 3: Table Of Contents

    Content A. Introduction ...4 B. Cautions and Warnings ...4 C. Contents ...6 D. Powering and Installation ...6 E. Controls, Indicators, and Connectors ...7 F. Loading and Playing a Disc ... 8 G. Basic Operation...9 Files Stored in H. Dock for iPod and Playing Your iPOD Player...10 I.

  • Page 4: Introduction

    A. Introduction Thank you for choosing the D8000IP portable DVD player. The main features include a 8" Screen (16:9 Aspect Ratio) Liquid Crystal Dis- play (LCD) monitor and a DVD player with a dock for your IPod. The unit is designed for use with SD/MMC, MS memory cards and USB memory devices.
  • Page 5 operation, never cover or block the slots and openings with a cloth or other material. Keep the unit away from an open flame such as fire, candle etc. It is hazardous to replace the battery incorrectly. Replace the battery only with the same or equivalent type, in order to protect the environment, please dispose the battery properly.

  • Page 6: Contents

    1. DVD is with other regional codes cannot be played in this unit C. Contents 1. 1 x 8’’ LCD Monitor & DVD Player Combo with dock for iPod 2. 1 x Remote Control with battery (CR2025) 3. 1 x Audio/Video Cable 4.

  • Page 7: Controls, Indicators, And Connectors

    E. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 2) 1) SD/MMC/MS Slot 2) Power/Charge LED 3) Remote Control Sensor 4) DC 9V Input Jack 5) Brightness Up/Down Control 6) AV In Jack 7) AV Out Jack 8) USB Port 9) Headphone Jack 1 10) Headphone Jack 2 11) Volume Up/Down Control...

  • Page 8: Loading And Playing A Disc

    19) Play/Pause Button F. Loading and Playing a Disc a. After connecting power to the unit, power on “DVD player” with the power switch. The power indicator will light. b. Open the disc tray by pressing the OPEN Button, and place a disc into the tray with the label side facing up.

  • Page 9: Basic Operation

    G. Basic Operation SOURCE POWER OPEN OK/PLAY/PAUSE STOP NEXT PREVIOUS FORWARD REVERSE LEFT/RIGHT/UP/DOWN ENTER NUMBERS MENU REPEAT DISPLAY SUBTITLE AUDIO SETUP WIDE Select respective sources: iPod / USB/SD / AV IN/DVD Turns the unit on/off Remove/load the disc Start Play/Execute item or setting Still Picture (1 time) Stop at the present playing point / (2 times) Stop playing...

  • Page 10: Dock For Ipod And Playing Files Stored In Your Ipod Player

    Only 30G, 60G and 80G iPods with video are supported. 2. Tilt the iPod dock upward (Figure 5). If the iPod hits the DVD player screen, tilt the screen backwards.
  • Page 11 Figure 6 NOTE: If the top of the iPod hits the surface of the DVD player it is not fully seated. Remove the iPod and re-insert it. 6. Set the DVD player to the power-on mode. 7. Press the SOURCE button repeatedly for the iPod input.

  • Page 12: Menu

    I. Menu A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu.
  • Page 13 2. SUBTITLE During disc playback press ‘SUBTITLE’ to select the subtitle language you desire*, with the current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) displayed. If there are mul- tiple languages press ‘SUBTITLE’ again to select another subtitle lan- guage.
  • Page 14 4. A-B REPEAT a. During playback press a first time ‘A-B’ to set the Starting Point b. Press ‘A-B’ a second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point B. c.

  • Page 15: Playing Audio Cds

    5. REPEAT a. During playback press ‘REPEAT’ constantly to see the repeat mode as right. Chapter: Repeat the current chapter Title: Repeat the current title All: Repeat all chapters and titles Repeat Off: Resume normal playback The ‘Chapter’ repeat display shows below for example: Chapter Repeat K.

  • Page 16: Using The Repeat Feature

    Total Elapsed: The current track playing and the total time that the Total Remain: The current track playing and the amount of time Display Off: Take ‘Single Elapsed’ display as a example shown above: USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: •...
  • Page 17 4. Use the ( NEXT ) button to move to the next song. Press the (PREVIOUS) button to move to the beginning of the previous song. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: •...

  • Page 18: Connecting To A Tv Or Another Monitor

    M. Connecting to other Electronical Equipment 1. Connecting to a TV or another monitor ( Refer to Figure 7) Connect one end of the audio/video cable’s black (1/8” plug) plug into the unit’s DVD AV Out jack, and connect the other end to the AUDIO INPUT jacks on your TV or Monitor through AV adapter cable (white = left channel, red = right channel, yellow=video).
  • Page 19 3. SD/MMC/MS Card and USB device Plug the SD/MMC/MS Card or USB device into the SD/MMC/MS Slot or USB slot and press SOURCE button repeatedly on the unit (or on the remote control) to select the USB /SD source. 4. Connecting headphones Connect the headphones into the headphone 1 jack or the headphone 2 jack of your unit.

  • Page 20: Setup

    Off: The screen will not display the angle mark. c) Screen Saver On: Enables screen saver. Note: The DVD player will enter the Screen Saver mode after ap- proximately five minutes if the same image remains on the screen. Off: Disables screen saver.
  • Page 21 d ) Last Memory *On: The unit will return to the last position on the disc. *Off: The unit will not return to the last position on the disc. Note: The Last Memory position function will only work when the disc tray is opened.
  • Page 22 4) Press to enter the sub menu. 5) Press the button to select the sub menu and press the ENTER to confirm your selection. 6) Repeat steps 3-5 for other menus. Note: Press to return the previous menu. a) Audio b) Subtitle c) Disc Menu Note: Language and subtitle selection is only available for discs that...

  • Page 23: Specifications

    Please fully charge the battery prior to first use. NOTE: When the DVD player is used with the battery as a power source, ensure that the battery has been charged for at least eight hours prior to connecting it to the DVD player.
  • Page 24 Cigarette Adapter can’t be used to recharge the batteries. 2. To charge the battery, please connect the power jack directly into the DVD player and leave the POWER switch in the OFF position. C) or exceed 95 F (35...
  • Page 25 3. Push the battery towards the rear flank of the player until it locks into position. The lock position is indicated by a click. The unit will fit snugly to the player. Figure 9. Installing the DVD Player Battery Removing the Battery Pack: 1. First, make sure the player is in “Power Off” mode.

  • Page 26: Troubleshooting

    Q. Troubleshooting PROBLEM No sound or distorted sound Can’t advance through a movie The icon ( ) appears on screen Picture is distorted No forward or reverse scan SOLUTION • Make sure your DVD is connected properly. Make sure all cables are securely inserted into the appropriate jacks.

  • Page 27: Troubleshooting (Cont)

    Troubleshooting (Cont) PROBLEM IR sensor inoperative Disc won’t play Play starts, but then stops immediately SOLUTION • Verify that the batteries in the remote are fresh. • Verify that the remote sensor eye is not obstructed. • Verify that the infrared transmitter is affixed over the sensor eye of the com- ponent to be controlled.

  • Page 28: Warranty

    90 DAY LIMITED WARRANTY Applies to Audiovox Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 29 © 2007 Audiovox Electronics Corporation 128-8162...
