Summary of Contents for Audiovox D2017

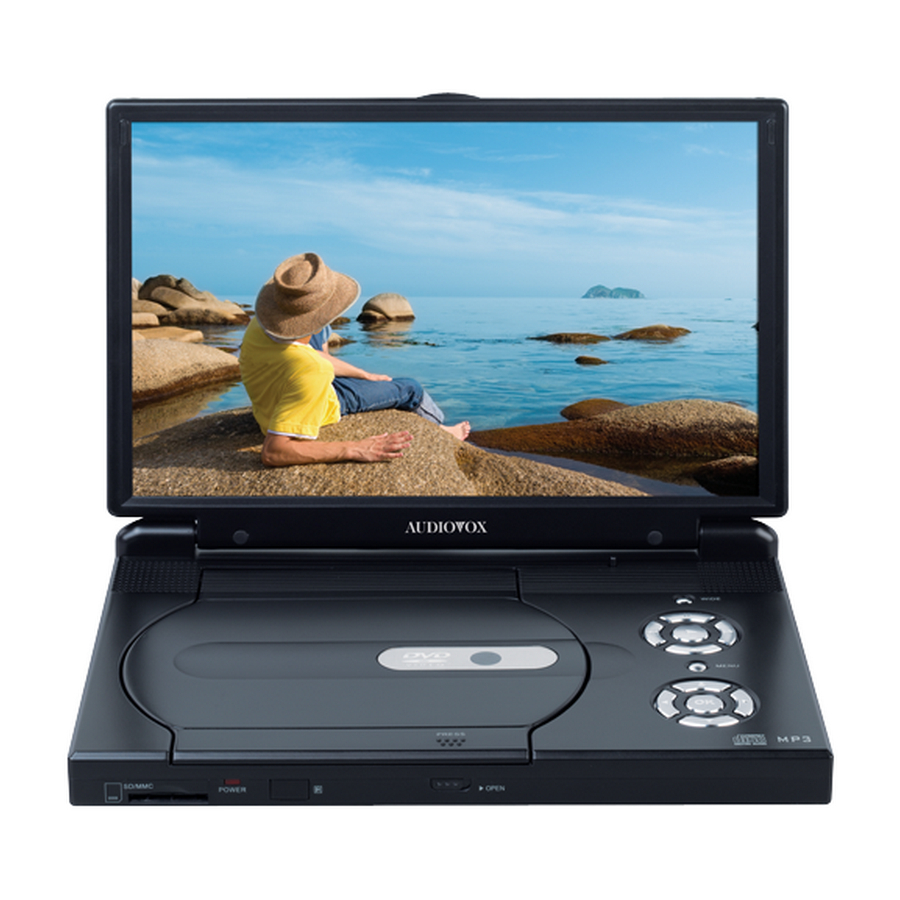

- Page 1 D2017 PORTABLE 10.2" LCD MONITOR AND DVD PLAYER PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com...
- Page 2 An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”...
-
Page 3: Table Of Contents
Content A. Introduction ... 4 B. Cautions and Warnings ... 4 C. Contents ... 6 D. Powering and Installation ... 6 E. Controls, Indicators and Connectors ... 7 F. Loading and Playing a Disc ... 8 G. Basic Operation... 9 H. -
Page 4: Introduction
A. Introduction Thank you for choosing the D2017 portable DVD player. The main features include a 10.2" Wide Screen (16:9 Aspect Ratio) Liquid Crys- tal Display (LCD) monitor and a DVD player. The unit applies the latest state of the art electronics and is designed for use in vehicles, hotels, offices or your home. - Page 5 operation, never cover or block the slots and openings with a cloth or other material. It is hazardous to replace the battery incorrectly. Replace the battery only with the same or equivalent type. In order to protect the environment, please dispose the battery properly. Do not use the unit in temperatures higher than 95 degrees Fahr- enheit or 35 degrees Celsius.
-
Page 6: Contents
Plug one end of the DC Power adapter into the DC input jack on the unit, then plug the other end into the vehicle power outlet. Note: Unplug the D2017 when not in use. PDF created with FinePrint pdfFactory Pro trial version... -
Page 7: Controls, Indicators And Connectors
E. Controls, Indicators and Connectors 1. Unit View (Refer to Figure 2) 1) Release Button of Battery 2) DC 9V Input Jack 3) AV Jack 4) AV In/Out SW 5) USB Port 6) Power On/Ooff SW 7) SD/MMC/MS Slot 8) Power LED 9) Remote Control Sensor * Connecting to headphone jack number 1 will disable the internal speakers... -
Page 8: Loading And Playing A Disc
22) 1-All Repeat Button F. Loading and Playing a Disc a. After connecting power to the unit, set the DVD player to ON using the power switch. The power indicator will light. b. Open the disc tray by sliding the OPEN switch in the direction of the arrow. -
Page 9: Basic Operation
G. Basic Operation POWER OPEN PLAY/PAUSE STOP NEXT PREVIOUS FORWARD REVERSE LEFT/RIGHT/UP/DOWN ENTER NUMBERS MENU REPEAT DISPLAY SUBTITLE AUDIO ZOOM SETUP PDF created with FinePrint pdfFactory Pro trial version Turn the unit on/off Remove/load the disc Start Play/Execute item or setting Still Picture (1 time) Stop and start at the present play- back point... -
Page 10: Menu
H. Menu A DVD is divided into sections called titles and chapters. When you play a DVD’s root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu. - Page 11 2. SUBTITLE During disc playback press ‘SUBTITLE’ to select the subtitle language you desire*, with the current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) displayed. If there are mul- tiple languages press ‘SUBTITLE’ again to select another subtitle lan- guage.
- Page 12 4. ZOOM During playback press ‘ZOOM’ mutiple times to enlarge the picture by 2X, 3X or 4X. 5. A-B REPEAT a. During playback press the ‘A-B’ button once to set the Starting Point A. b. Press ‘A-B’ a second time to set the Ending Point B. The player will repeatedly play the part between Point A and Point B.
-
Page 13: Playing Audio Cds
6. REPEAT a. During playback press ‘REPEAT 1/ALL’ repeatedly to cycle through the repeat modes. Chapter: Repeat the current chapter Title: Repeat the current title All: Repeat all chapters and titles Repeat Off: Resume normal playback J. Playing Audio CDS When playing an audio CD press the DISPLAY button repeatedly on the remote to view time information. -
Page 14: Playing Mp3 Discs
Total Elapsed: The current track playing and the total time that the Total Remain: Display Off: USING THE 1/ALL REPEAT FEATURE The default mode for the 1/ALL REPEAT feature is OFF. Pressing 1/All REPEAT button consecutively changes the repeat options: •... - Page 15 4. Use the song. USING THE1/ALL REPEAT FEATURE The default mode for the 1/ALL REPEAT feature is OFF. Pressing 1/ALL REPEAT consecutively changes the repeat options: • Repeat One (repeat playback of a song) • Repeat Folder (repeat playback of a specific folder) •...
-
Page 16: Viewing Jpeg File
L. Viewing JPEG Files 1) Load the JPEG Disc into tray. 2) Select a JPEG file by pressing “UP/DOWN” button. 3) You can preview the JPEG file by pressing “PLAY” or “ENTER”. 4) Pressing the “Down” button will rotate the picture clockwise. 5) Pressing the “Up”... - Page 17 3. Headphones Optional wired headphones may be used with the unit. Simply plug in the headset to either Headphone 1 jack or Headphone 2 jack on the right side of the DVD. ( Refer to Figure 5.) Figure 5 Plugging into Headphone jack 1 disables the internal speakers. 4.
-
Page 18: Setup
Screen Saver *On: Enables screen saver *Off: Disables screen saver *NOTE: The DVD player will enter the Screen Saver mode after ap- proximately three minutes if the same image remains on the screen. PDF created with FinePrint pdfFactory Pro trial version ”... - Page 19 c) Last Memory *On: The unit will return to the last position on the disc. *Off: The unit will not return to the last position on the disc. Note: The Last position memory function will only work when the disc tray is OPEN. 2.Video Quality Setup 1)In Setup menu, Press the Setup”...
- Page 20 4) Press 5) Press the ENTER to confirm your selection. 6) Repeat steps 3-5 for other menus. Note: Press a) Audio b) Subtitle c) Disc Menu Note: Language and subtitle selection is only available for discs that are recorded in the above listed languages. If the selected language is not available, the player will play and display on the screen the original recorded language contained in the disc.
-
Page 21: Specifications
Please fully charge the bat- tery prior to first use. NOTE: When the DVD player is used with the battery as a power source, ensure that the battery has been charged for at least eight hours prior to connecting it to the DVD player. - Page 22 battery in optimum condition. Do not short the battery terminals, store the battery in a metal container, or leave the battery in a humid or damp environment. Ideally, store the battery in an airtight container with desiccant or other dehumidifying agent. Each full recharge takes approximately five-hours and one full charge can provide power to the player for about 2.5 hours.
- Page 23 Installing the Battery Pack: 1. First, make sure the player is in “Power Off” mode and that the AC power supply has been disconnected. 2. Flip down the monitor. 3. Push the battery towards the rear of the player until it locks into position.
-
Page 24: Troubleshooting
Q. Troubleshooting PROBLEM No sound or distorted sound Can’t advance through a movie The icon ( appears on screen Picture is distorted No forward or reverse scan PDF created with FinePrint pdfFactory Pro trial version SOLUTION • Make sure your DVD is connected properly. Make sure all cables are securely inserted into the appropriate jacks. -
Page 25: Troubleshooting (Cont)
CDs and MP3s. • Both the unit and the disc are coded by region. If the regional codes don’t match, the disc can’t be played. This DVD Player is Region Number 1. • The disc is dirty. Clean it. -
Page 26: Day Limited Warranty
AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 27 © 2007 Audiovox Electronics Corporation 128-8029 PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com...
