Email - Avalonix 94200h User Manual

Step2: select fps and quality.
Step3: user can also setup all channels with same parameters.
Step4: click "apply" button to save the setting; click "exit" button to exit current interface.

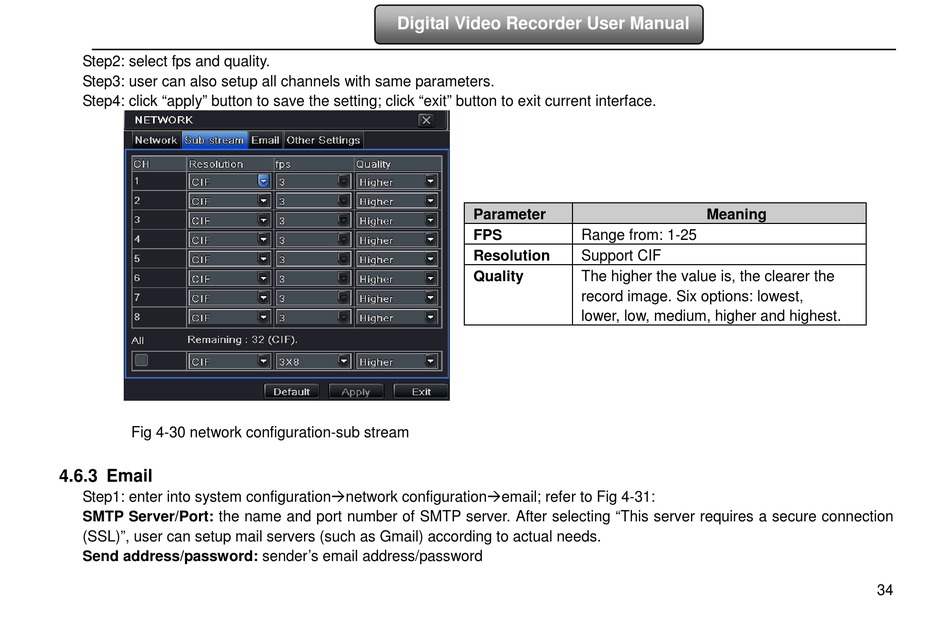

Fig 4-30 network configuration-sub stream

4.6.3 Email

Step1: enter into system configurationnetwork configurationemail; refer to Fig 4-31:
SMTP Server/Port: the name and port number of SMTP server. After selecting "This server requires a secure connection
(SSL)", user can setup mail servers (such as Gmail) according to actual needs.
Send address/password: sender's email address/password
Digital Video Recorder User Manual
Parameter
FPS
Resolution
Quality
Meaning
Range from: 1-25
Support CIF
The higher the value is, the clearer the
record image. Six options: lowest,
lower, low, medium, higher and highest.
34
