Spot - Avalonix 94200h User Manual

Step2: select split mode: 1×1、2×2、2×3、3×3 and channel.
Step3: dwell time: the time interval for a certain dwell picture display switching to next dwell picture display
Step4: select the split mode and then setup current picture group. Click
picture. Click button to set the latter channel groups of dwell picture.
Step5: click "default" button to resort default setting; click "apply" button to save the setting; click "exit" button to exit current
interface.

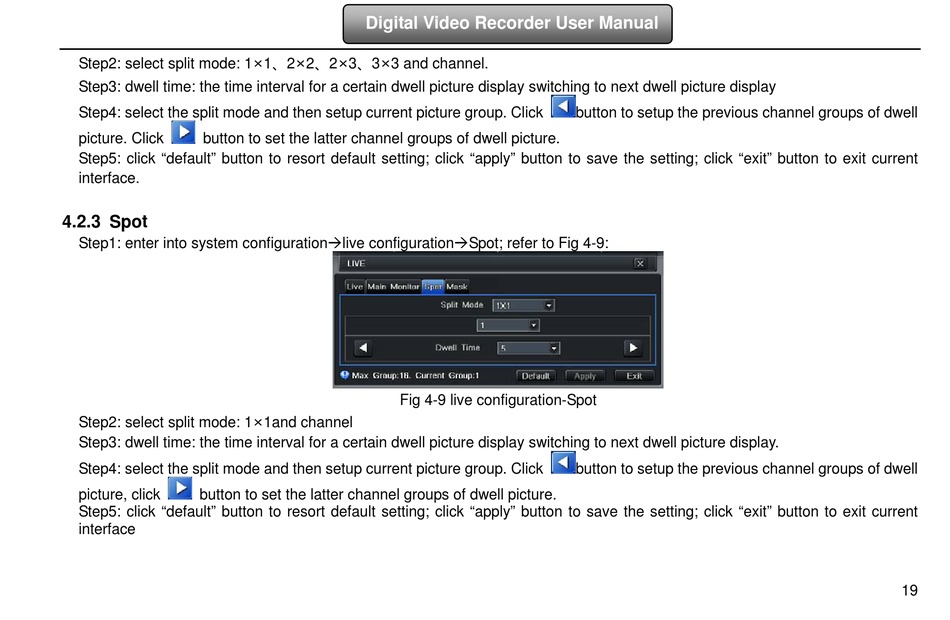

4.2.3 Spot

Step1: enter into system configurationlive configurationSpot; refer to Fig 4-9:
Step2: select split mode: 1×1and channel
Step3: dwell time: the time interval for a certain dwell picture display switching to next dwell picture display.
Step4: select the split mode and then setup current picture group. Click
picture, click button to set the latter channel groups of dwell picture.
Step5: click "default" button to resort default setting; click "apply" button to save the setting; click "exit" button to exit current
interface
Digital Video Recorder User Manual
Fig 4-9 live configuration-Spot
button to setup the previous channel groups of dwell
button to setup the previous channel groups of dwell
19
