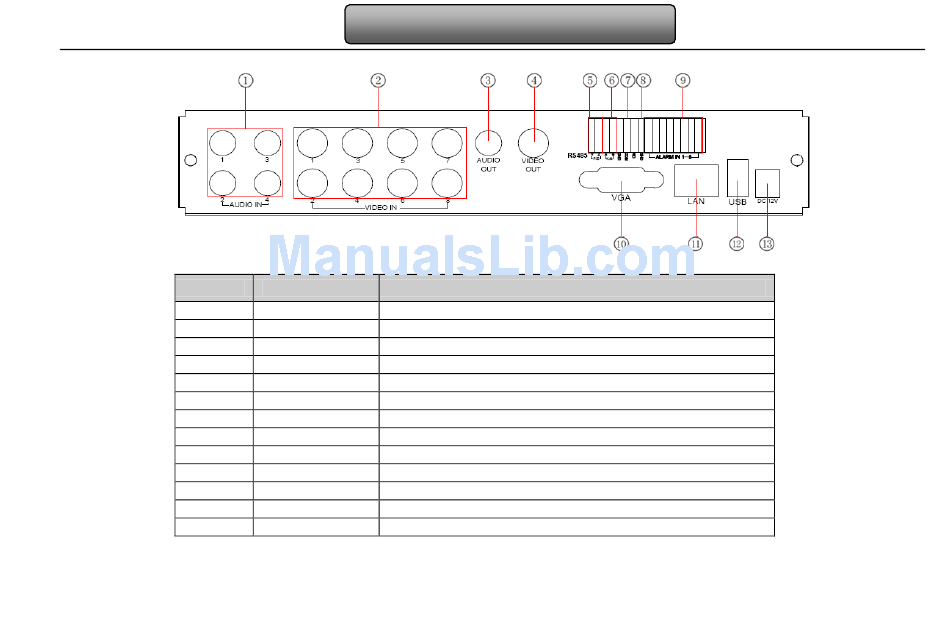

The rear Panel interface for 8-ch is shown as Fig 2.4:
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
Digital Video Recorder User Manual
Fig 2.4 Rear Panel for 8-ch
Name Description
Audio in 4 CH Audio input
Video in Video input channels from 1-8
Audio out Audio output, connect to the sound box
Video out Connect to monitor
P/Z Connect to speed dome
K/B Connect to keyboard
ALARM OUT 1-ch relay output. Connect to external alarm
+ 5V and GND +5 V and Grounding
ALARM IN Connect to external sensor1-8
VGA port VGA output, connect to monitor
LAN Network port
USB port Connect USB mouse or connect external USB devices
DC12V POWER INPUT
