Summary of Contents for Quantum Dynamo ATS

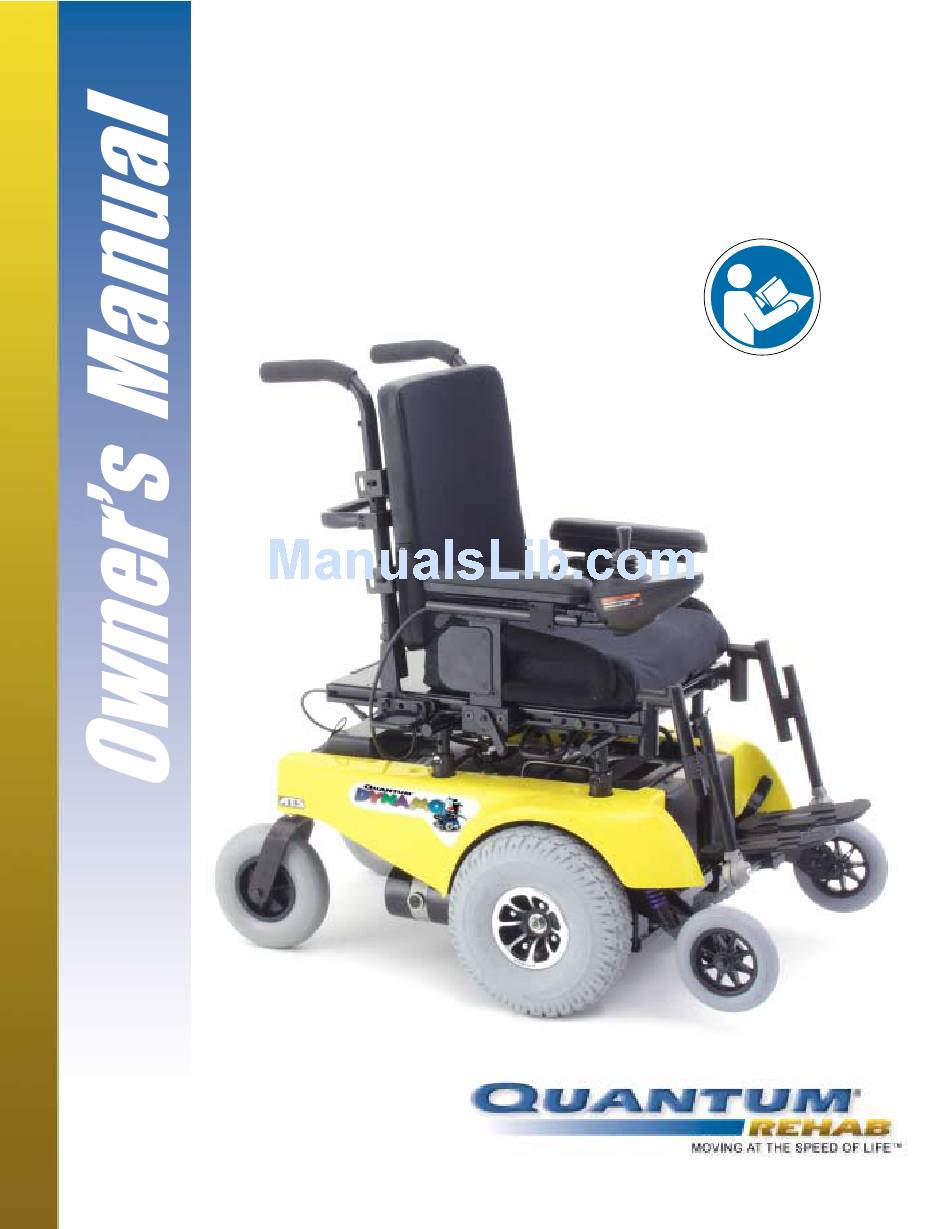

- Page 1 Dynamo 21 Healey Road, Dandenong, 3175, Victoria, Australia www.quantumrehab.com ACN# 088 609 661...
- Page 2 Performing a prohibited action can cause injury to personnel and/ or damage to equipment (black symbol with red circle and red slash). NOTE: Supplemental information that may be helpful to operate the equipment. 088 609 661 Copyright © 2004 Pride Mobility Products Corp. INFMANU2187 www.quantumrehab.com Quantum Dynamo ATS/RevA/Apr04...
-
Page 3: Table Of Contents
T A B L E C O N T E N T S INTRODUCTION..........................4 SAFETY ..............................5 III. THE QUANTUM DYNAMO ATS ....................14 IV. DISASSEMBLY AND ASSEMBLY ..................... 20 COMFORT ADJUSTMENTS......................24 VI. BATTERIES AND CHARGING ....................26 VII. -
Page 4: Introduction
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the safety and reliability of your new power chair, and about the service you received from your Quantum Rehab Specialist. Please notify us of any change of address, so we can keep you apprised of important information about safety, new products, and new options that can increase your ability to use and enjoy your power chair. - Page 5 Locked and in drive mode. Two (2) Battery Configuration: T = Terminal Post Connect Red wire to T with + Connect Black wire to T with – Do not remove anti-tip wheels. Quantum Dynamo ATS/RevA/Apr04 www.quantumrehab.com...
- Page 6 3-pronged adapter to an electrical outlet having 2-pronged plug access. Failure to heed could result in personal injury and/or property damage. Prevent personal injury and equipment damage. Do not connect an extension lead to the AC/DC converter or the battery charger. www.quantumrehab.com Quantum Dynamo ATS/RevA/Apr04...
-
Page 7: Safety
Pride has designed and engineered your power chair to provide maximum mobility and utility. A wide range of accessories is available from your Quantum Rehab Specialist to further customise your power chair to better suit your needs and/or preferences. However, under no circumstances should you modify, add, remove, or disable any feature, part, or function of your power chair. -
Page 8: Weight Limitations
Doing so may result in personal injury and/or damage to your power chair. WARNING! Never travel down an incline rearward. This may result in personal injury. www.quantumrehab.com Quantum Dynamo ATS/RevA/Apr04... - Page 9 Reduce your power chair’s speed when driving on uneven terrain and/or soft surfaces. n Avoid tall grass that can entangle the running gear. n Avoid loosely packed gravel and sand. n If you feel unsure about a driving surface, avoid that surface. Quantum Dynamo ATS/RevA/Apr04 www.quantumrehab.com...
-
Page 10: Freewheel Mode
Your power chair is equipped with a manual freewheel system to allow for manual maneuverability by a trained attendant. For more information about how to place your power chair into and out of freewheel mode, see III. “The Quantum Dynamo ATS.”... -
Page 11: Motor Vehicle Transport
Turn the power off. See VII. “Operation.” n Ensure your power chair is not in freewheel mode. See III. “The Quantum Dynamo ATS.” n Turn both caster wheels toward the transfer destination to improve power chair stability during transfer. -
Page 12: Positioning Belts
Positioning Belts Your Quantum Rehab Specialist, therapist(s), and other healthcare professionals are responsible for determining your requirement for a positioning belt in order to operate your power chair safely. WARNING! If you require a positioning belt to safely operate your power chair, make sure it is fastened securely. - Page 13 NOTE: For further information on EMI/RFI, go to www.pridemobility.com. If unintended motion or brake release occurs, turn the power chair off as soon as it is safe to do so. Quantum Dynamo ATS/RevA/Apr04 www.quantumrehab.com...
-
Page 14: The Quantum Dynamo Ats

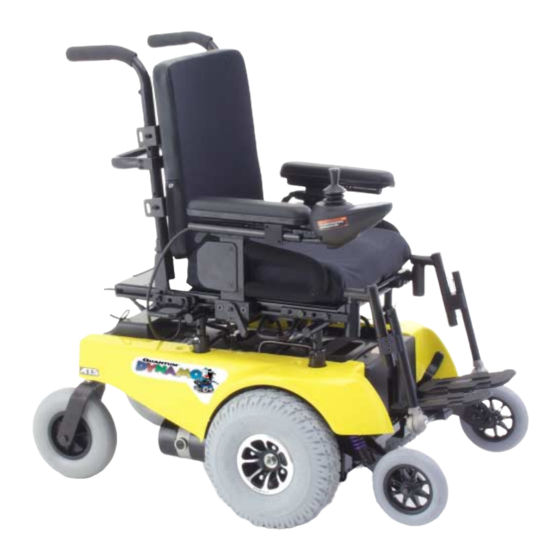

See figures 5, 6, and 7. SEATBACK ARMRESTS SEAT ASSEMBLY CONTROLLER SEAT BASE POWER BASE ASSEMBLY SWING-AWAY LEG RESTS BODY SHROUD CASTER WHEEL DRIVE WHEEL ANTI-TIP WHEELS Figure 5. The Quantum Dynamo ATS www.quantumrehab.com Quantum Dynamo ATS/RevA/Apr04... - Page 15 I I I . T H E Q U A N T U M D Y N A M O A T S QUANTUM DYNAMO ATS SPECIFICATIONS Class of Use: Suspension: Active-Trac Suspension, Limited Drive Wheels: 25 cm, pneumatic, centre-mounted (solid tyres are optional)
- Page 16 If the main circuit breaker continues to trip repeatedly, contact your Quantum Rehab Specialist. n Battery Charger AC Power Receptacle: This is where the battery charger lead plugs in when the batteries need to be recharged.
- Page 17 MAIN CIRCUIT BREAKER CONNECTOR POWER RECEPTACLE AMMETRE Figure 6. Power Base Rear View - Electronics Tray FRONT BATTERY BOX MOTOR CONNECTORS BATTERY CONNECTORS (QUICK-CONNECTORS) SEAT MOUNT CONNECTORS REAR BATTERY BOX Figure 7. Power Base Top View Quantum Dynamo ATS/RevA/Apr04 www.quantumrehab.com...
- Page 18 (nine flashing lights) on the controller. To clear this code, turn off the controller and place the power chair in drive mode. Then turn on the controller. The error message should be cleared. If it isn’t, contact your Quantum Rehab Specialist. To engage or disengage the drive motors: MANUAL FREEWHEEL 1.
- Page 19 WARNING! Do not attempt to use either manual park brake lever to stop your power chair. Serious injury may result. WHEEL WHEEL MOTOR MOTOR MANUAL PARK BRAKE MANUAL PARK BRAKE Figure 10. Manual Park Brake Engaged Figure 11. Manual Park Brake Disengaged Quantum Dynamo ATS/RevA/Apr04 www.quantumrehab.com...
- Page 20 BASE FRAME ASSEMBLY FRONT FRAME Figure 12. Quantum Dynamo ATS Component Assemblies To disconnect the joystick/controller harness: Disconnect the joystick/controller harness from its connector on the electronics tray. See figure 6. You may need to pull firmly and gently wiggle the harness to remove it from the connector.
-
Page 21: Disassembly And Assembly
5. Carefully let the power base frame assembly tilt to a resting position. 6. Repeat for the other power base frame assembly. Figure 15. Removing Battery Boxes Quantum Dynamo ATS/RevA/Apr04 www.quantumrehab.com... - Page 22 3. Fit the notch on either side of the rear of the battery well frame onto the locating pin on each power base frame assembly. 4. Make certain that the locking mechanisms snap securely into Figure 19. Connecting Front Frame Assembly place. www.quantumrehab.com Quantum Dynamo ATS/RevA/Apr04...
- Page 23 Reconnect the joystick/controller harness to its connector on the electronics tray. See figure 6. WARNING! Do not place the joystick/ controller harness so that it can be pinched in the seat frame or the power base frame. Quantum Dynamo ATS/RevA/Apr04 www.quantumrehab.com...
-
Page 24: Comfort Adjustments
Information on seat adjustment is contained in separate manuals that accompany this product. WARNING! If your power chair was configured at your Quantum Rehab Specialist or service centre, please consult your healthcare professional before changing seat position or making any other adjustment. - Page 25 2. Tilt the foot plate to the desired position. 3. Tighten the hardware. To change foot plate angle (D): 1. Turn setscrew clockwise to decrease angle. 2. Turn setscrew anticlockwise to increase the angle. SETSCREW Figure 23. Multi-axis Foot Plate Quantum Dynamo ATS/RevA/Apr04 www.quantumrehab.com...
-
Page 26: Batteries And Charging
The battery charger is essential in providing long life for your power chair batteries. The battery charger is designed to optimise your power chair’s performance by charging the batteries safely, quickly, and easily. Quantum Dynamo ATS power chairs use either an onboard charger or an optional off-board charger to charge the batteries. The onboard charger is plugged into the battery charger AC power receptacle on the electronics tray. - Page 27 NOTE: Your power chair’s charger will not operate after the batteries have been discharged to nearly zero voltage. If this happens, call your Quantum Rehab Specialist for assistance. n Daily Use If you use your power chair on a daily basis, charge the batteries as soon as you are finished using your power chair.
- Page 28 Battery Disposal and Recycling If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag and call your Quantum Rehab Specialist for instructions on disposal. Your Quantum Rehab Specialist will also have the necessary information on battery recycling, which is our recommended course of action.
-
Page 29: Operation
WARNING! Unless faced with an emergency situation, do not use the on/off key to stop the chair. This will cause the power chair to stop abruptly. WARNING! Always turn the power off when you are stationary to prevent unexpected movement. Quantum Dynamo ATS/RevA/Apr04 www.quantumrehab.com... - Page 30 “ripple up and down of lights,” turn off the controller and allow the joystick to return to the neutral position. Then turn on the controller. NOTE: If you still get “ripple up and down of lights”, contact your Quantum Rehab Specialist. www.quantumrehab.com...
- Page 31 The off-board charger/programming socket is located on the front of the Remote Plus. If you use an off-board charger, the charger current should not exceed 12 amps. Contact your Quantum Rehab Specialist for more information. WARNING! Only chargers with Neutrik NC3MX plugs should be connected to the off-board charger/ programming socket.
-
Page 32: Care And Maintenance
M A I N T E N A N C E CARE AND MAINTENANCE Your Quantum Dynamo ATS is a sophisticated power chair. Like any motorised vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your Quantum Rehab Specialist. -
Page 33: Daily Checks
Check the rubber boot around the base of the joystick for damage. Visually inspect the boot. Do not handle or try to repair it. See your Quantum Rehab Specialist if there is a problem. n Visually inspect the controller communications cable. Make sure that it is not frayed, cut, or has any wires exposed. -
Page 34: Cleaning Instructions
Keep your power chair clean and free of foreign material, such as mud, dirt, hair, food, drink, etc. Yearly Checks Take your power chair to your Quantum Rehab Specialist for yearly maintenance. This helps ensure that your power chair is functioning properly and helps prevent future complications. -
Page 35: Battery Replacement
To replace the batteries: 1. Turn off power to the controller. 2. Make sure that the power chair is in drive mode. See III. “The Quantum Dynamo ATS.” 3. Unplug the controller communications cable from the power module. 4. Remove the seat. -
Page 36: Corrective Maintenance
When to See Your Quantum Rehab Specialist for Service The following symptoms could indicate a serious problem with your power chair. If necessary, contact your Quantum Rehab Specialist. When calling, have the model number, serial number, nature of the problem, and the trouble code if available. - Page 37 All electronic parts, including controllers and battery chargers, have a one (1) year warranty. Servicing to the controller or battery charger must be carried out by your Quantum Rehab Specialist. Any attempt to open or dismantle these items renders the guarantee void on that item.
- Page 38 N O T E S www.quantumrehab.com Quantum Dynamo ATS/RevA/Apr04...
- Page 39 Dynamo Thank you for making the Quantum Dynamo ATS your choice in power chairs. Quality Control - Quantum Dynamo ATS We have thoroughly inspected your Controller Quantum Dynamo Model #____________ ATS. The Serial # following check- Serial #____________ marks indicate...
