Microphone Cable Termination
for Non-Lectrosonics Microphones

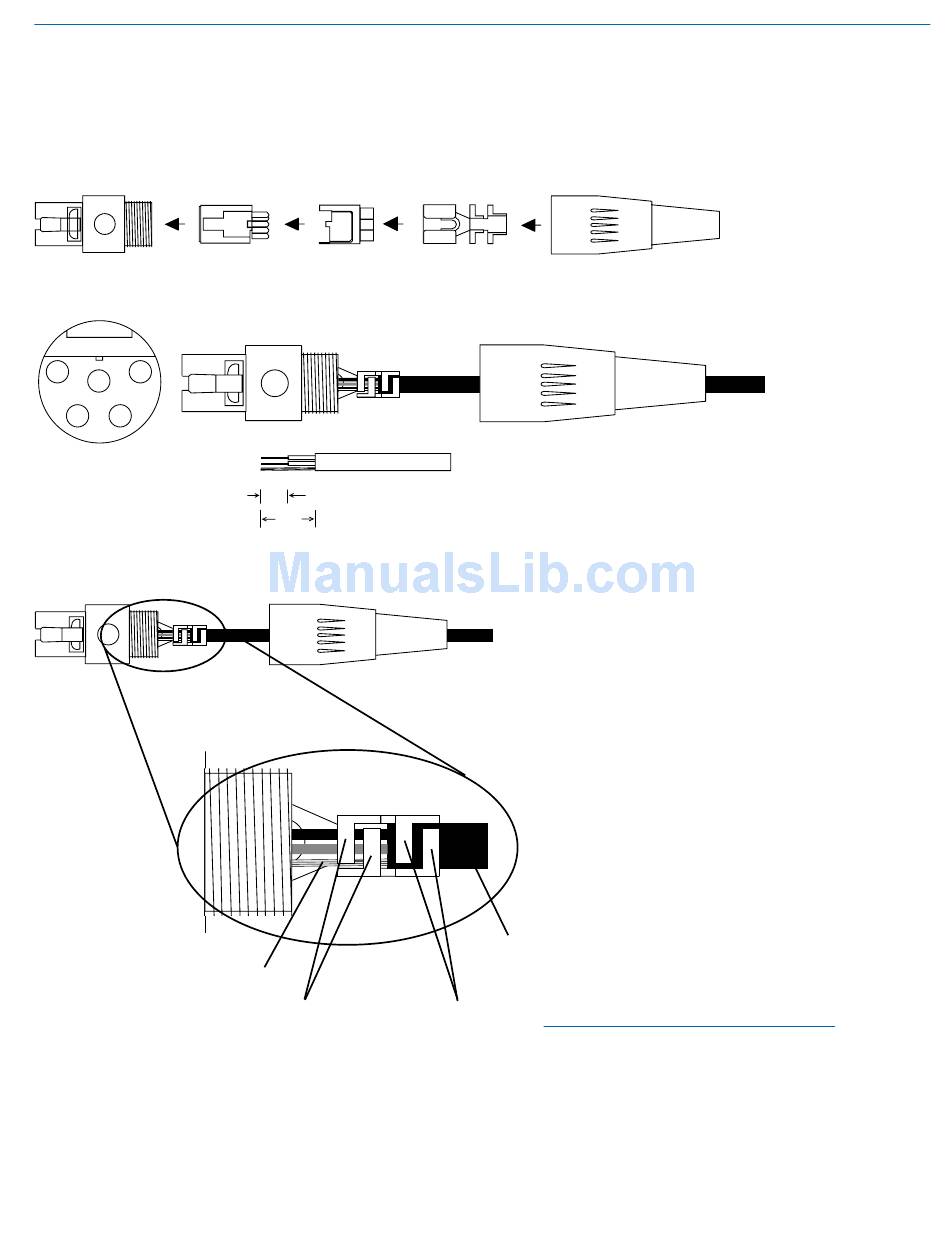

TA5F Connector Assembly
Mic Cord Stripping Instructions
1 4
5
2 3
VIEW FROM SOLDER
SIDE OF PINS
Crimping to Shield and Insulation
Shield
Rio Rancho, NM
0.15"
0.3"
Crimp these
fingers to
contact the
shield
Strip and position the cable so that the clamp
can be crimped to contact both the mic cable
shield and the insulation. The shield contact
reduces noise with some microphones and the
insulation clamp increases ruggedness.
Insulation
Crimp these
fingers to
NOTE: This termination is intended for UHF
clamp the
insulation transmitters and the PDR only. VHF transmitters
with 5-pin jacks require a different termination.
Lectrosonics lavaliere microphones are terminated
for compatibility with VHF and UHF transmitters,
which is different from what is shown here.
