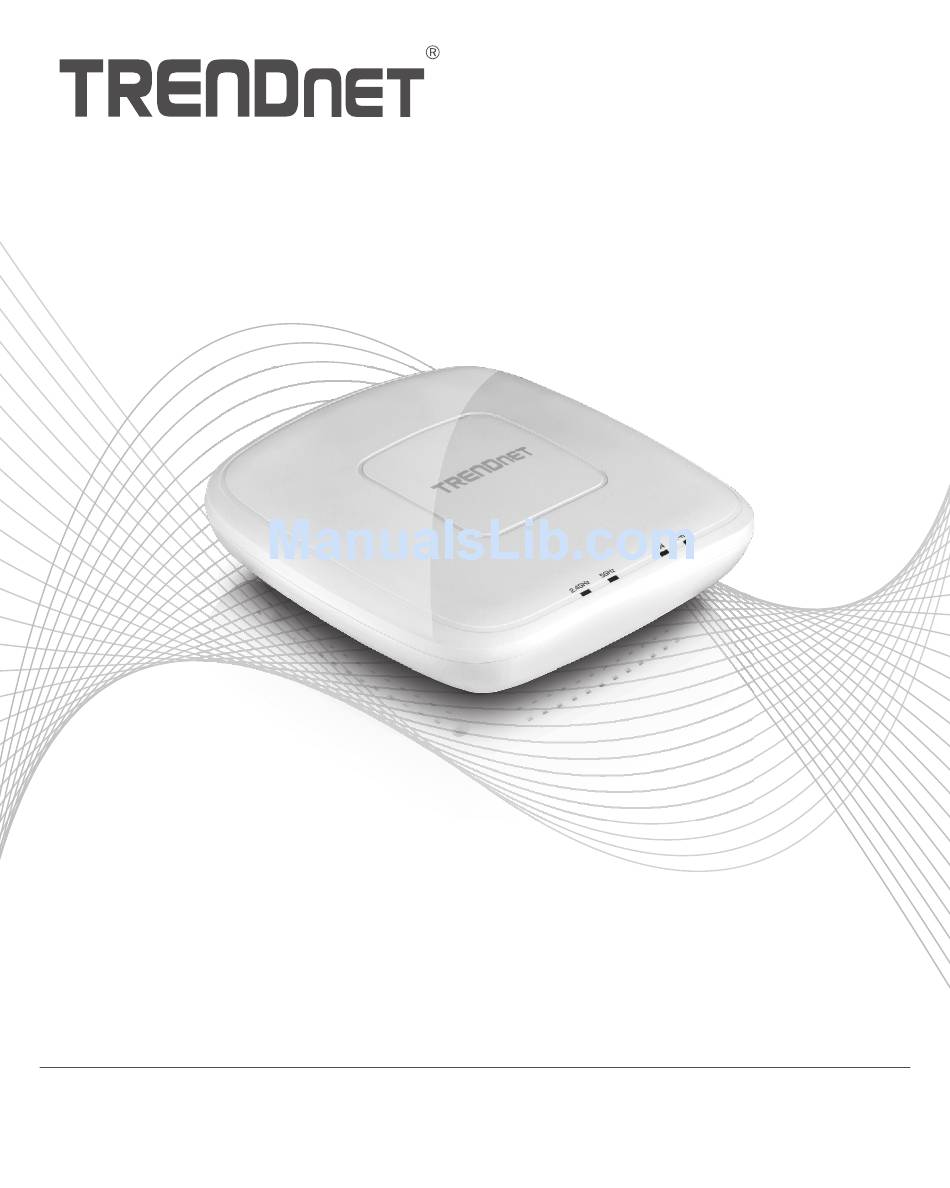

- Page 1 Quick Installation Guide TEW-825DAP(V1)
- Page 2 Table of Content 1 English 1. Before You Start 2. Initial Access Point Setup 3. AP Management Utility 4. Mounting the Device...
-
Page 3: Before You Start
1. Before You Start Package Contents Ÿ TEW-825DAP Ÿ 1 x Network cable (1.5m / 5 ft.) Ÿ CD-ROM (User's Guide and Configuration Utility) Ÿ Quick Installation Guide Ÿ Power adapter (12V DC, 1.5 A) Ÿ Mounting plate Minimum Requirements Ÿ... - Page 4 2. Initial Access Point Setup 1. Bring the TEW-825DAP to a location of its final installation point. 2. Connect the TEW-825DAP to your router or switch. You may also connect the device directly to a network port on your computer. If you are connecting to a router or switch, make sure your computer is connected to the same network.
- Page 5 1. Insert the included CD into your computer, and select AP Utility from the menu. Note: The AP Management Utilitly only supports Windows based computers. Please visit TRENDnet.com for complete list of the supported operating systems. Mac Users: Please refer to the User's Guide to manually configure the access point.
- Page 6 3. Select your device by checking the box next to your TEW-825DAP, and click on Device Settings. 4. The Device Settings page will show your basic Wi-Fi network settings. If your network requires a static IP address, select the Static radio button and enter your settings. If you are not sure, leave IP Mode on the default setting, DHCP.
- Page 7 5. To configure your wireless network, select the Band from the dropdown menu, and enter your settings. If you are using both 2.4GHz and 5GHz networks, they must be configured individually. The Key is your current WiFi password. The default key is located on the white sticker on the bottom of the TEW-825DAP.
- Page 8 9. To access the unit's advanced settings, launch the AP Management utility, locate your TEW-825DAP, click on the IP Address, and select Yes to configure your device. 192.168.10.62 10. This will launch your default web browser, and automatically direct it to your TEW-825DAP for advanced settings.
- Page 9 13. The status screen will display information about your TEW-825DAP access point, and the unit's wireless networks. 14. For detailed information on advanced settings and features, please refer to the User's Guide.
- Page 10 4. Mounting the Device 1. Remove the mounting plate from the TEW-825DAP. 2. Place the mounting plate on the wall or ceiling where the device will be located, and mark the location of the screw holes. Ensure that the device has enough clearance to slide on and off the mounting plate.
- Page 11 Product Name: Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2009: + A1: 2010 + A12: 2011 + A2: 2013 EN 301 489-1 V1.9.2: 09-2011...
- Page 12 каждого продукта на сайте компании TRENDnet. Garantia Limitada A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e serviço. Os períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos no site da TRENDnet.
- Page 13 Safety notes Before using your TRENDnet device for the first time, it is essential to read and understand all safety and operating instructions. Keep instructions in a safe place for future reference. Some TRENDnet products are rated for outdoor applications and can sustain certain weather conditions.
- Page 14 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: Toll free US/Canada: 1-866-845-3673 www.trendnet.com/register Regional phone numbers available at www.trendnet.com/support...
