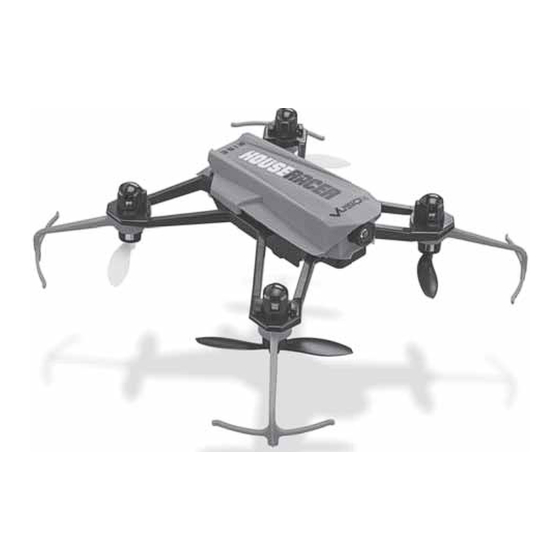

Rise Vision HOUSERACER Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTRUCTION
MANUAL
e x p l o r e - r i s e . c o m
WARNING
Please read and understand this manual, the operation and all safety aspects
required for the safe operation of the product. Before use, if you feel that this
product is not for you, please return it to the place of purchase.
Manual Specifications and Description Changes
The instruction manual, warranties, and other associated documentation are
subject to change without notice. Hobbico assumes no responsibility for
inadvertent errors to this manual.
™
© 2017 RISE, a Hobbico company.
RISE0207 FPV RTF v1.1
RISE0208 FPV-R v1.1

Advertisement

Table of Contents
loading

Related Manuals for Rise Vision HOUSERACER

Summary of Contents for Rise Vision HOUSERACER

  • Page 1 Manual Specifications and Description Changes The instruction manual, warranties, and other associated documentation are subject to change without notice. Hobbico assumes no responsibility for inadvertent errors to this manual. ™ © 2017 RISE, a Hobbico company. RISE0207 FPV RTF v1.1 RISE0208 FPV-R v1.1...

  • Page 2: Safety Precautions

    For the latest technical updates or manual corrections for the VUSION HOUSE RACER please visit the RISE web site at www.explore-rise.com. If there is any new technical information, changes or important updates to this model a “tech notice”...

  • Page 3: Fcc License

    WARRANTY RISE™ guarantees this kit to be free from defects in both material and workmanship at the date of purchase. This warranty does not cover any component parts damaged by use or modification. In no case shall RISE’s liability exceed the...
  • Page 4 Further, RISE reserves the right to change or modify this warranty without notice. In that RISE has no control over the final assembly or material used for final assembly, no liability shall be assumed nor accepted for any damage resulting from the use by the user of the final user- assembled product.

  • Page 5: Battery Charging

    FEATURES Entry Level 120 class indoor Flight Controller is pre- racing quad programmed with two stability Ready to Fly, no building required modes and a rate mode Wall Guards to increase stability 600TVL FPV Camera Flip Button 25mW VTX DIMENSIONS Size: 120 mm (4.7 in) diagonally motor to motor Width: 165 mm (6.5 in) Length: 165 mm (6.5 in)

  • Page 6: Radio System

    Wall Guard Installation The House Racer has wall guards to help prevent the House Racer from flipping over when it makes contact with other objects. Push them onto the tops of the motors. Radio System Remove the screw from the battery Turn on the transmitter and connect the battery door.

  • Page 7: Sensor Calibration

    Controls Sensor Calibration 1. Calibrate the sensors before the first flight. Turn on the transmitter. Center all the trim adjustments. To center the trim settings, hold down one side of the trim button until you hear a long beep. If the controller stops beeping, release the trim button and hold down the other side.

  • Page 8: Takeoff And Landing

    Flight Modes The Vusion has 3 flight modes. Stability Tilt Roll FLIGHT Switch Mode 1 – This mode has MODES Position Mode Angle Rate autolevel, mild roll rates and Mode 1 Away Stability limited tilt angles. Ideal for the Mode 2 Middle Stability Medium...
  • Page 9 FPV FREQUENCIES BAND The House Racer has a 5865 5845 5825 5805 5785 5765 5745 5725 built in FPV camera and 5733 5752 5771 5790 5809 5828 5847 5866 40 channel VTX that transmits on the A, B, E, 5705 5685 5665 5645 5885 5905 5925 5945 F and R bands.

  • Page 10: Maintenance

    FAILSAFE / BEACON The House Racer will autoland and start beeping when the signal from the transmitter is lost. This feature can be used as a beacon to help locate the quadcopter when it has crashed. Simply turn off the transmitter. BATTERIES The VUSION HOUSE RACER uses a 650mAh single cell LiPo.

  • Page 11: Replacing A Motor

    If you are using the House Racer/Vusion stock controller, 1. Turn off the transmitter and unplug the battery from the House Racer for at least 15 seconds. 2. Connect the battery to the House Racer. 3. Turn on the controller within 10 seconds. The status LED should be steady and the House Racer should beep once to indicate that it is linked to the controller.

  • Page 12: Battery Precautions

    BATTERY PRECAUTIONS The VUSION HOUSE RACER uses a lithium polymer (LiPo) battery. Follow these precautions to ensure safe and trouble-free operation. • ALWAYS disconnect the battery from the quadcopter when not in use. • Do not attempt to use this charger with NiCd or NiMH battery packs. •...

  • Page 13: Ic Radiation Exposure Statement

    • Consult the dealer or an experienced radio/TV technician for help • This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. RISE J2000 Transmitter FCC ID: IYFJ2000 RISE 25mW VTx FCC ID: IYF2051 CE COMPLIANCE INFORMATION...

  • Page 14: Declaration Of Conformity

    Declaration of Conformity Product: RISE 2.4GHz 6-Channel Tx Rx Item number: RISJ2000 J2000 Equipment class: 1 J2000 transmitter: The objects of the declaration described here are in conformity...
  • Page 15 SPARE PARTS Part # Description Goggle Parts 1 RISE2050 Canopy TACZ5200 FPV-G1 Goggles w/o Monitor 2 RISE2051 Camera Board & Antenna TACZ5610 FPV-G1 Head Strap 3 RISE2052 Camera Case TACZ5612 FPV-G1 Face Plate Foam 4 RISE2053 Screw Set (6) FPV Monitor Parts & Accessories 5 RISE2054 Motor Cap (4) 6 RISE2055 Main Motor CW L/F, R/R (2) TACZ5160 FPV-RM2 40ch 5.8 GHz Monitor...
  • Page 16 HOUSE RACER EXPLODED VIEW ™ © 2017 RISE, a Hobbico company. RISE0207 FPV RTF v1.1 RISE0208 FPV-R v1.1...
