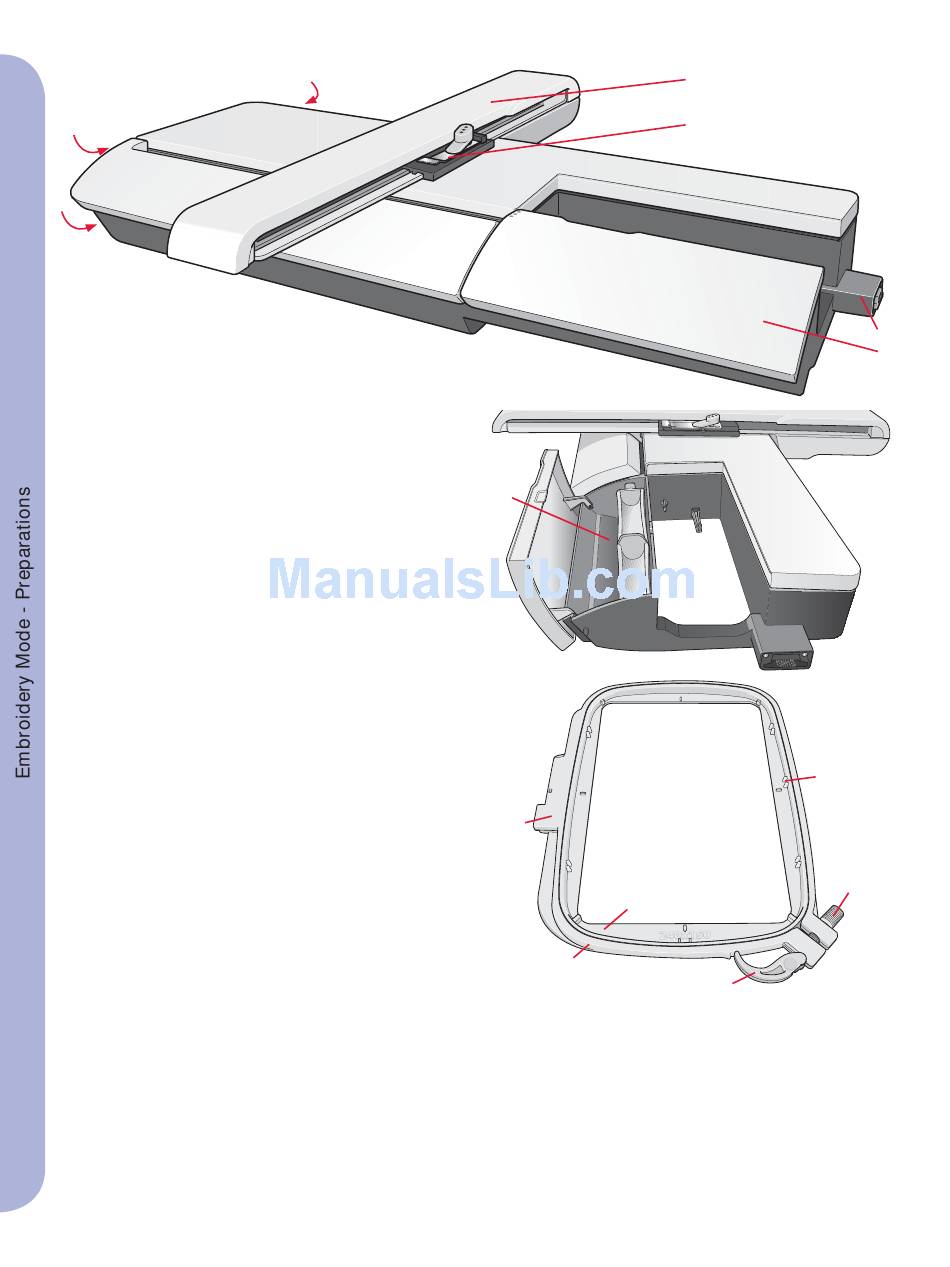

Embroidery unit overview

(type BE15)
A Embroidery unit release button
B Level adjusting feet
C Embroidery unit accessory tray
D Embroidery unit socket
E Embroidery hoop connection assembly
F Embroidery arm
Note: A smaller embroidery unit, 260x200mm, is
available to purchase at your local authorized PFAFF®
dealer.
Embroidery unit accessory tray
Use the tray in the embroidery unit to store
accessories used for embroidering.

Built-in designs

Over 200 designs are included in the memory
in your machine. All these designs are also
included on the creative vision™ CD for backup
if you temporarily want to remove them from the
machine memory.

Embroidery hoop

G Embroidery hoop connector
H Outer hoop
I Inner hoop
J Quick release
K Retaining screw
L Ribs for fi tting the clips
