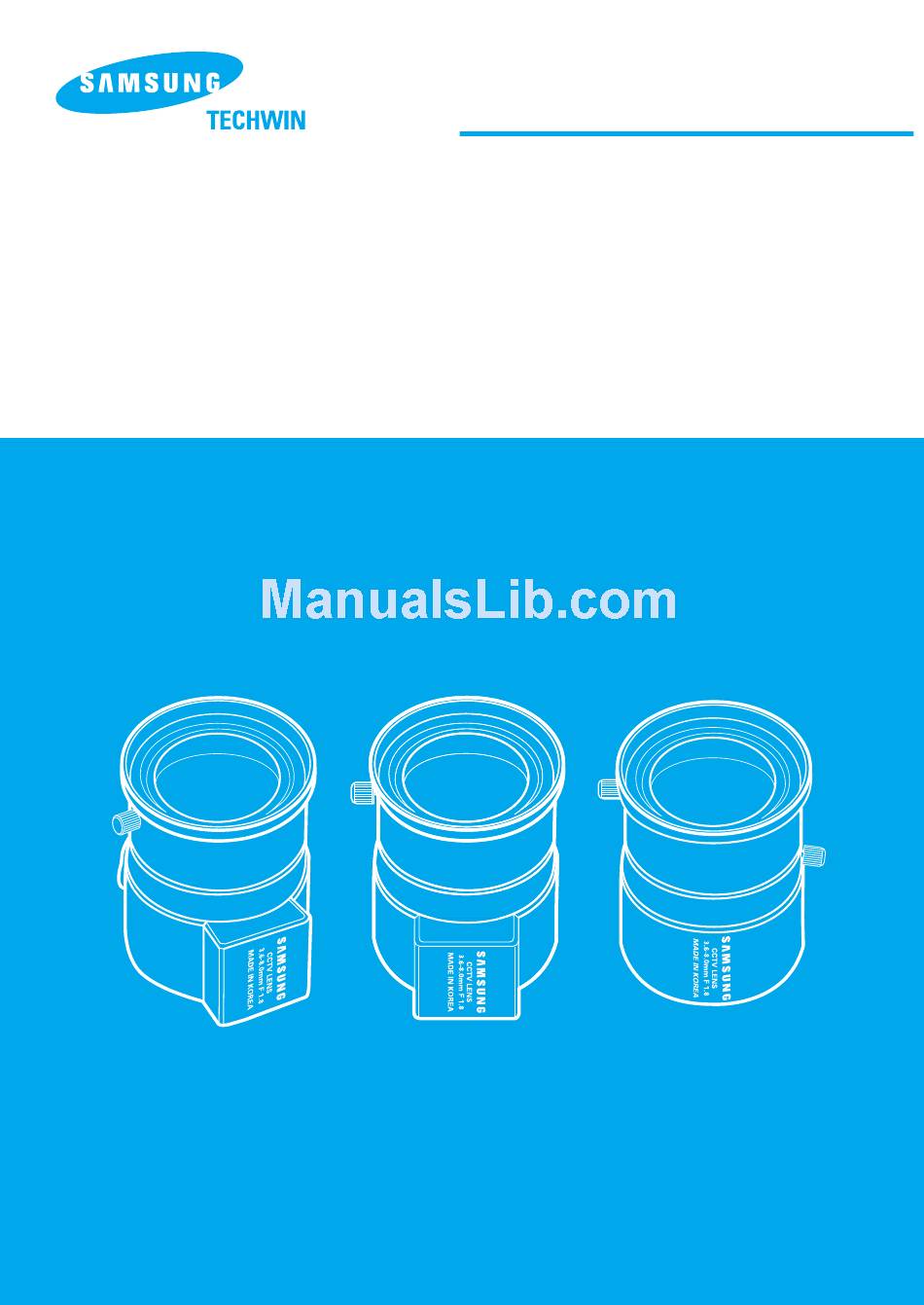

- Page 1 CCTV CAMERA LENS INSTRUCTION MANUAL SLA-358V/D SLM-358S SAMSUNG CCTV SYSTEM...
- Page 2 INSTRUCTION MANUAL VARI FOCAL LENS SAMSUNG VARI FOCAL LENSES for CCD CAMERA OPERATING INSTRUCTIONS SAMSUNG Vari-focal lenses are aimed at sharp, crisp images and exposure accuracy under even the most adverse lighting conditions. The iris auto-close function protects imagers and optical filters from extreme high lights when power is off.
- Page 3 TABLE OF CONTENTS 1. FUNCTION OF PARTS W 2 @ 6 X ? g ? W 2 @ 6 X ? g ? W 2 @ 6 X ? g ? W 2 @ 6 X ? g ? W 2 @ 6 X ? g ? W 2 @ 6 X ? g ? W 2 @ 6 X ? g ? W 2 @ 6 X ? g ?
- Page 4 FUNCTION OF PARTS (1) FUNCTION OF PARTS Shield cable D.C TYPE : 4core VIDEO TYPE : 3core TELE-WIDE RING To adjust the video signal To adjust picture size by level between 0.5 and 1.0 turning FOCUS RING To adjust the video signal To provide for accurate focusing level between peak and of an object within the lens field of...
- Page 5 CONNECTION (2) CONNECTION 1) SLA-358V : Video drive auto iris vari focal lens +VCC DC 8~16V WHITE VIDEO SHIELD GROUND 2)SLA-358D : D.C drive auto iris varifocal lens DRIVE WHITE YELLOW GREEN CONTROL To connect an Auto Iris Lens, First replace the plug on the lens cable with the plug supplied.
- Page 6 ADJUSTMENT (3) ADJUSTMENT(SLA-358V : VIDEO) 1) ALC Upon delivery, each lens is pre-set for average metering of the video signal level. Metering can be adjusted continuously between the peak and average methods by simply turning the ALC variable resistor towards the approproate...
- Page 7 SPECIFICATIONS 2) LEVEL The video signal level of lens is pre-set to an acceptable value at the factory and, under normal use, sensitivity adjustment is not necessary. Adjust the sensitivity level only is case of obtaining the best possible image quality.
- Page 8 Before using the lens, please read the camera instruction manual carefully. (1) Please set the lens selection switch on the camera at “DC” position for SLA- 358D and at “VIDEO” position for SLA-358V. (2) Fit the lens onto the mounting screw of the camera and turn the lens clockwise until it is completely stopped at the end.
- Page 9 SPECIFICATION 1) SLA-358V / SLA-358D Model No. SLA-358V/SLA-358D Iris Accurancy ±15% Focal Length 3.5~8.0mm Input Signal (V) Video Signal (V or Max. Aperture Rate 1 : 1.8 Sensitivity Adjustment (V) 0.5~1.0Vp-p Max. image formal size 4.8 x 3.6mm(ø6mm) Coil(D) Drive 232Ω...
- Page 10 [ SALES NETWORK ] ・SAMSUNG TECHWIN CO., LTD ・SAMSUNG OPTO-ELECTRONICS AMERICA, INC. 145-3 Sangdaewon 1-Dong, Jungwon-Gu, 40 Seaview Drive, Secaucus N. J. Sungnam, Kyungki-Do, Korea 07094, U. S. A 462-121 TEL : 201-902-0347 TEL : 82-031-740-8137~40 FAX : 201-902-9342 FAX : 82-031-740-8145 P/NO.:6806-0283-01A...
