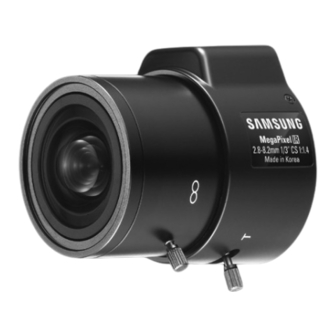

Samsung SLA-M2882 User Manual

Megapixel camera lens
Hide thumbs


Advertisement

Quick Links

SAMSUNG AUTO IRIS LENS FOR Megapixel CAMERA OPERATING
INSTRUCTIONS
SAMSUNG Lens is aimed at sharp, crisp images and exposure accuracy under even the most
adverse lighting conditions.
The iris auto-close function protects imagers and optical filters from extreme high lights
when power is off.
To receive the best possible results, read the instruction manual carefully before using the
lens.
Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to
provide customers with more environment-friendly products. The Eco mark
represents Samsung Techwin's will to create environment-friendly
products, and indicates that the product satisfies the EU RoHS Directive.
CONTENTS
LENS
PART NAMES AND FUNCTION
IRIS
HOW TO ASSEMBLE LENS AND CS MOUNT CAMERA
LINE BOUNDS
DIMENTION
Megapixel Camera Lens SLA-M2882
User's Manual
SPECIFICATION
Thank you for choosing this Samsung Megapixel Camera Lens product.
* Specifications are subject to change without prior notice.
Before attempting to connect or operate this product, please read the instructions
contained in this manual carefully.
Please save this instruction manual for future reference.
ENGLISH
Megapixel Lens
1. LENS
4. HOW TO ASSEMBLE LENS AND CS MOUNT CAMERA
This lens embeds ND filter and takes auto iris function by Galvanometer.
And apply this lens to CCD camera that use CS mount which equip 1/3˝ CCD element
and embed DC iris drive curcuit.
It has self focus and mount control function, operates DC iris function through lens
and attached cable.
2. PART NAMES AND FUNCTION
Zoom Lever
Auto IRIS Jack
Focus Lever
Model name
3
3
3
4 WIRE CABLE
4
4
3. IRIS
5
5. LINE BOUNDS
This lens have a built-in ND filter and iris by Galvanometer. This iris tool is driven by
6
inner circuit of camera.
If power is off, its state is locked.
3
Megapixel Lens
• Dimension
1) Turn the lens clockwise to lock onto camera part mount screw.
(When the lens locks successfully, it can turn around SLIP state)
2) Turn clockwise until stop by stopper even if it almost SLIP state.
3) From that point, if turn it anticlockwise, it moves 340 degree in SLIP state.
Then set the direction as want within that range.
4) Turn focus lever to adjust
5) Finally connect of lens cable to connector of camera.
Caution
This lens takes CS mount type so should be used 12.5mm FLANGE-BACK setting camera.
① Blue : Damping (-)
② Red : Damping (+)
③ White : Drive (+)
④ Green : Drive (-)
4
Megapixel Lens
Megapixel Lens
• SPECIFICATION
Model Name
SLA-M2882
Application of Council Directive(s)
Focus Length
2.8-8.2mm
Manufacturer's Name
Sensor
1/3"
Camera
Megapixel
Manufacturer's Address
Max, Aperture Ratio
1:1.4-360
xMax, Image Format
4.8X3.6
Iris
Auto (F1.4~360)
Operation
Focus
Manual
European Representative Name
Zoom
Manual
European Representative Address
Diagonal
116.5˚~42.4˚
Equipment Type/Environment
Angle Of View
Horizontal
94.2˚~34.1˚
Vertical
71.0˚~25.6˚
Model Name
Iris Type
DC
Beginning Serial NO.
Effective Lens
Front
Ø26.0mm
Year of Manufacture
Aperture
Rear
Ø8.6mm
Back Focal Length
7.97~14.12mm
Conformance to
Flange Back Length
12.5mm
Mount
CS(1˝-32UNF)
Dimension
52 x 43.8 x 48.1
Weight
100g
We, the undersigned, hereby declare that the equipment specified above conforms
• SALES NETWORK
to the above Directive(s).
SAMSUNG TECHWIN CO., LTD.
145-3, Sangdaewon 1-dong, Jungwon-gu, Seongnam-si Gyeonggi-do, 462-703, Korea
Manufacturer
TEL : +82-31-740-8151~8 FAX : +82-31-740-8145
Signature
SAMSUNG TECHWIN EUROPE CO., LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
Full Name
TEL : +44-1932-45-5300 FAX : +44-1932-45-5325
SAMSUNG TECHWIN AMERICA Inc.
Position
1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Place
Tol Free : +1-877-213-1222 FAX: +1-310-632-2195
www.samsungtechwin.com
Date
www.samsungcctv.com
5
6
DECLARATION OF CONFORMITY
89 / 336 / EEC
SAMSUNG TECHWIN CO., LTD
SAMSUNG TECHWIN CO., LTD
42, SUNGJU-DONG CHANGWON-CITY,
KYUNGNAM, KOREA, 641-716
Megapixel Lens
SLA-M2882
J202001
2009. 9. 1
EN 55022 : 1988 Class A
EN 501304 : 1995 / AI : 1988
SAMSUNG TECHWIN CO., LTD
Legal Representative in Europe
Signature
BONJENG JU
Full Name
QUALITY CONTROL MANAGER
Position
CHANGWON, KOREA
Place
2009. 9. 1
Date
