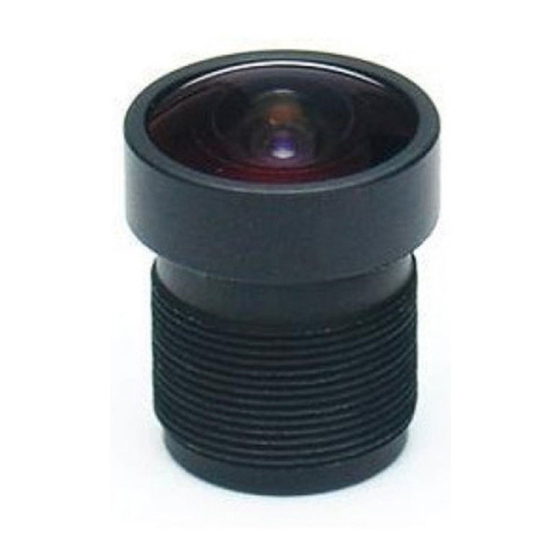

Samsung SLA-M-M21D Installation Manual

Samsung lens
Hide thumbs

Advertisement

Quick Links

NETWORK CAMERA
Samsung Lens
User Manual
Installation Guide
SNB-5003/SNB-5004
SND-5083/SND-5084
SLA-M-M21D

Advertisement

loading

  Related Manuals for Samsung SLA-M-M21D

  Summary of Contents for Samsung SLA-M-M21D

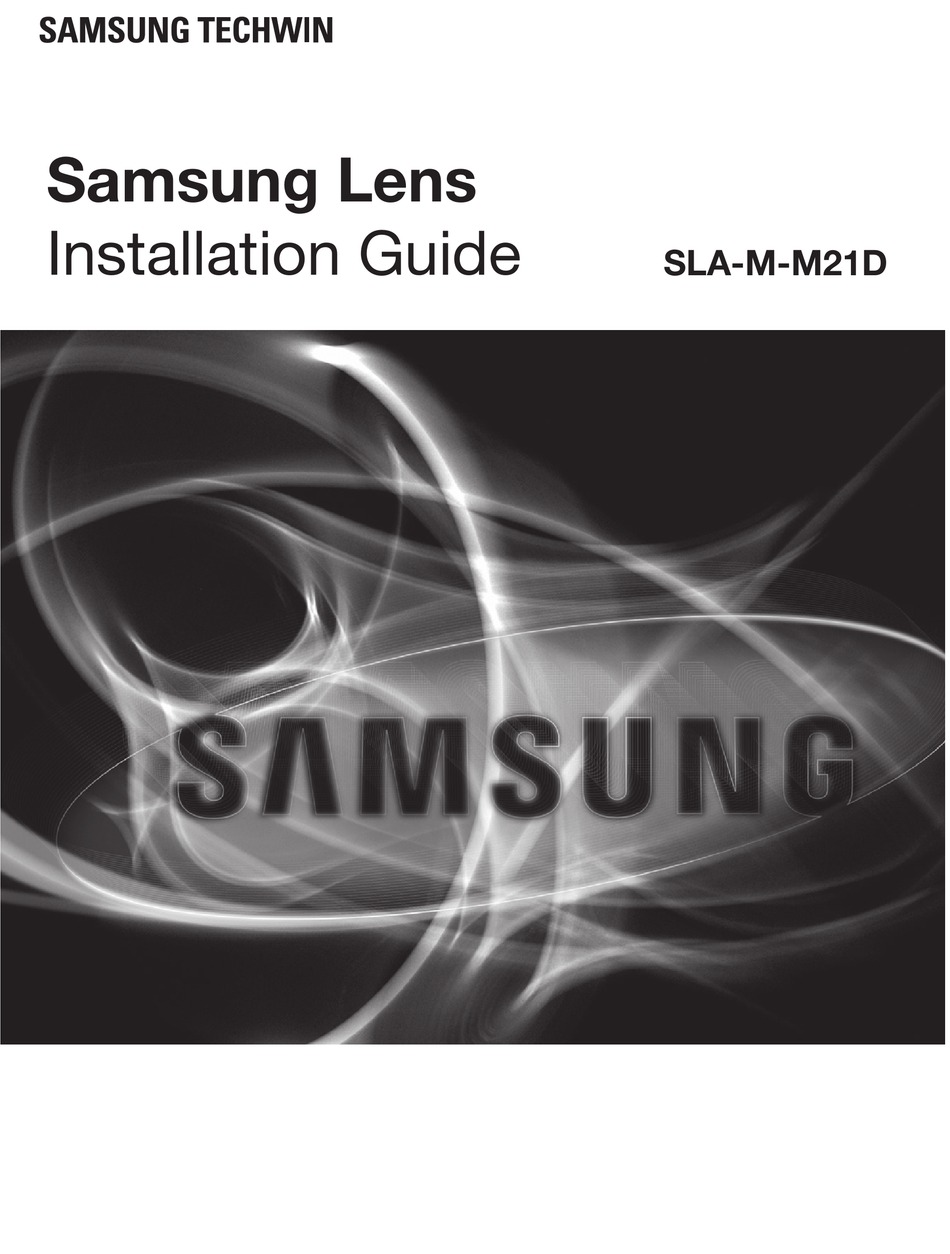

  • Page 1 NETWORK CAMERA Samsung Lens SNB-5003/SNB-5004 User Manual Installation Guide SND-5083/SND-5084 SLA-M-M21D...
  • Page 2 Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility.
  • Page 3: Important Safety Instructions

    overview SNV-6013 Overview important Safety inStructionS Thank you very much for purchasing our Cameras and Lenses. 1. Read these instructions. Please follow the procedures outlined in this guide for 2. Keep these instructions. changing out the lens on the SNV-6012M and SNV-6013 3.
  • Page 4 overview SNV-6013 Lens Installation important Safety inStructionS To install the lens on to the SNV-6013 camera, please open the camera. 1. Read these instructions. 2. Keep these instructions. Now remove the installed lens by turning it counter clockwise. 3. Heed all warnings. Please hold the camera module with your other hand.
  • Page 5 overview SNV-6013 Lens Installation important Safety inStructionS Take the new optional lens and insert the Nylon washer and spring washer, mount it to the camera as in the picture below. 1. Read these instructions. 2. Keep these instructions. Take care not to damage the threads or cross thread the lens. 3.
  • Page 6 overview SNV-6013 Lens Installation important Safety inStructionS Turn the lens until the spring washer starts to compress some pressure is felt. 1. Read these instructions. 2. Keep these instructions. Now power up and focus the camera by moving the lens until 3.
  • Page 7 overview SNV-6012M Overview important Safety inStructionS Thank you very much for purchasing our Cameras and Lenses. 1. Read these instructions. Please follow the procedures outlined in this guide for 2. Keep these instructions. changing out the lens on the SNV-6012M and SNV-6013 3.
  • Page 8 overview SNV-6012M Lens Installation important Safety inStructionS Install the lens in to the camera. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7.
  • Page 9 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 Samsung House, 1000 Hillswood Drive, Hillswood Business Toll Free : +1-877-213-1222 Direct : +1-201-325-6920 Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS Fax : +1-201-373-0124 TEL : +44-1932-45-5300 FAX : +44-1932-45-5325 www.samsungcctvusa.com...
