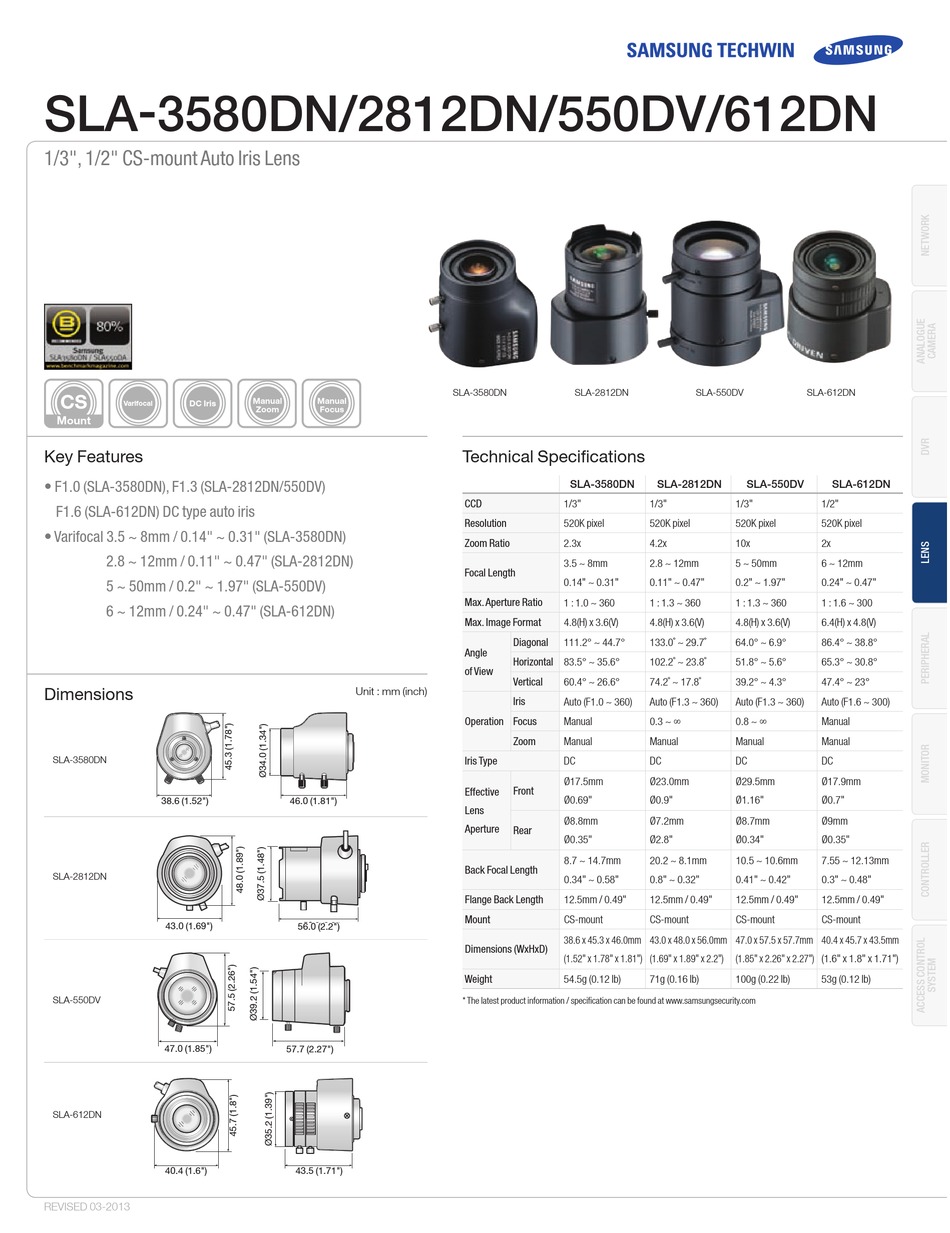

Samsung SLA-3580DN Technical Specifications

1/3", 1/2" cs-mount auto iris lens
Hide thumbs


Advertisement

Quick Links

SLA - 3580DN/2812DN/550DV/612DN
1/3", 1/2" CS-mount Auto Iris Lens
CS
DC iris
Varifocal
Mount
Key Features
• F1.0 (SLA-3580DN), F1.3 (SLA-2812DN/550DV)
F1.6 (SLA-612DN) DC type auto iris
• Varifocal 3.5 ~ 8mm / 0.14" ~ 0.31" (SLA-3580DN)
2.8 ~ 12mm / 0.11" ~ 0.47" (SLA-2812DN)
5 ~ 50mm / 0.2" ~ 1.97" (SLA-550DV)
6 ~ 12mm / 0.24" ~ 0.47" (SLA-612DN)
Dimensions
SLA-3580DN
38.6 (1.52")
38.6 (1.52")
38.6 (1.52")
SLA-2812DN
43.0 (1.69")
43.0 (1.69")
SLA-550DV
47.0 (1.85")
47.0 (1.77")
SLA-612DN
40.4 (1.6")
40.4 (1.6")
40.4 (1.6")
REVISED 03-2013
Manual
Manual
Zoom
Focus
Unit : mm (inch)
46.0 (1.81")
46.0 (1.81")
46.0 (1.81")
56.0 (2.2")
56.0 (2.2")
57.7 (2.27")
57.7 (2.27")
43.5 (1.71")
43.5 (1.71")
43.5 (1.71")
SLA-3580DN
SLA-2812DN

Technical Specifications

SLA-3580DN
CCD
1/3"
Resolution
520K pixel
Zoom Ratio
2.3x
3.5 ~ 8mm
Focal Length
0.14" ~ 0.31"
Max. Aperture Ratio
1 : 1.0 ~ 360
Max. Image Format
4.8(H) x 3.6(V)
Diagonal
111.2° ~ 44.7°
Angle
Horizontal 83.5° ~ 35.6°
of View
Vertical
60.4° ~ 26.6°
Iris
Auto (F1.0 ~ 360)
Operation
Focus
Manual
Zoom
Manual
Iris Type
DC
Ø17.5mm
Front
Effective
Ø0.69"
Lens
Ø8.8mm
Aperture
Rear
Ø0.35"
8.7 ~ 14.7mm
Back Focal Length
0.34" ~ 0.58"
Flange Back Length
12.5mm / 0.49"
Mount
CS-mount
38.6 x 45.3 x 46.0mm
Dimensions (WxHxD)
(1.52" x 1.78" x 1.81")
Weight
54.5g (0.12 lb)
