Operating Manual
Manuale di installazione
Passport
Passport
Chatière intelligente pour chat
™
Passport
Puerta inteligente para gatos Passport
Passport
Passport
Please read this entire guide first before beginning installation
Veuillez lire l'intégralité de ce manuel avant de procéder à l'installation
Lees deze handleiding helemaal door voordat u aan de installatie begint
Lea esta guía en su totalidad antes de empezar la instalación
Leggere attentamente il presente manuale prima di iniziare l'installazione
Lesen Sie bitte zunächst diese Anleitung vollständig durch, bevor Sie mit der
Installation beginnen
Installation Guide
Guide d'installation
Montagehandleiding
Manual de instalación
Montageanleitung
PPA19-20558
Intelligent Cat Flap
™
intelligent kattenluik
™
Porta intelligente per gatti
™
Intelligente Katzenklappe
™
1000
™
Series
Série
Serie
Serie
Serie
Serie
Advertisement
Table of Contents
Related Manuals for Petsafe PPA19-20558
Summary of Contents for Petsafe PPA19-20558

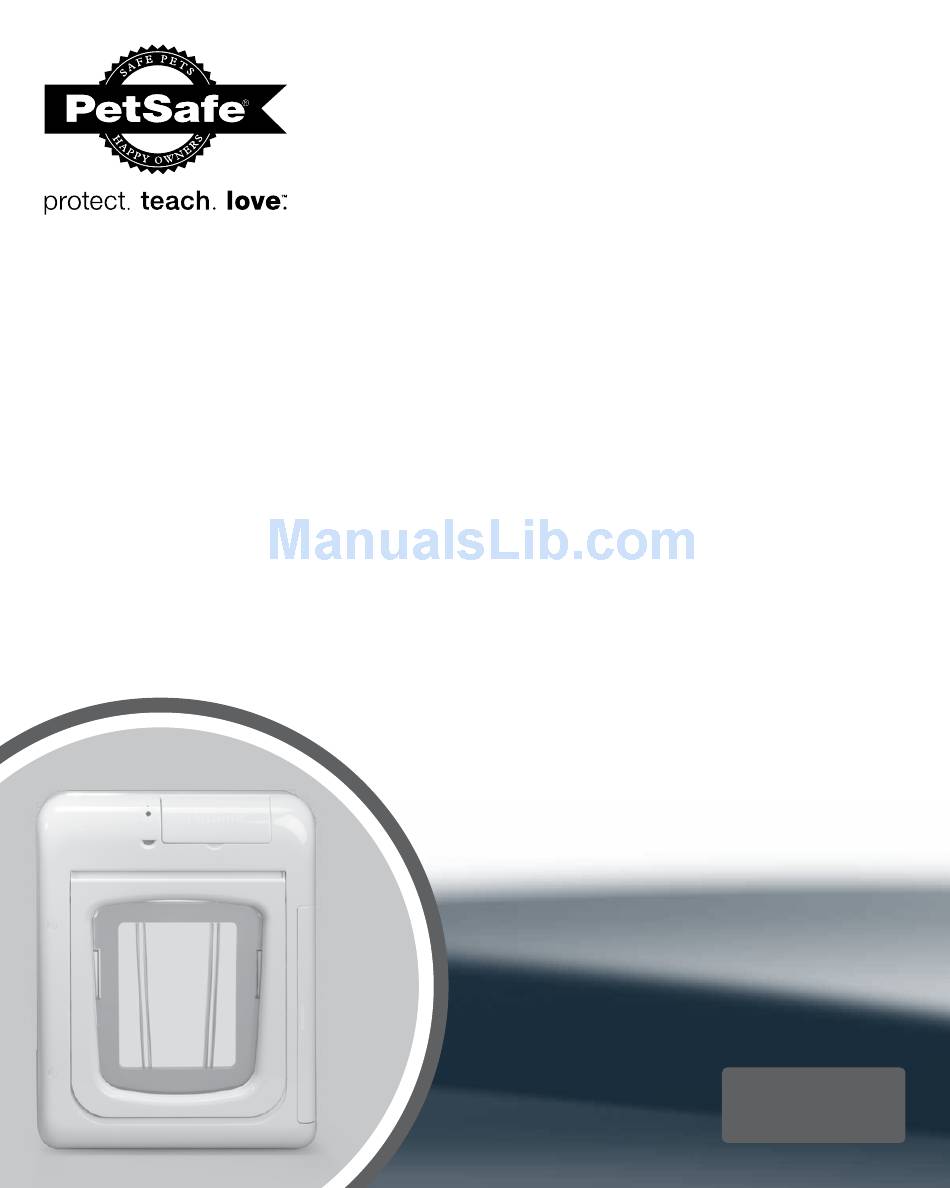

- Page 1 Installation Guide Guide d’installation Montagehandleiding Manual de instalación Manuale di installazione Montageanleitung PPA19-20558 Passport Intelligent Cat Flap ™ Passport Chatière intelligente pour chat ™ Passport intelligent kattenluik ™ Puerta inteligente para gatos Passport ™ Passport Porta intelligente per gatti ™...
- Page 2 • During pet training while Cat Flap is in Open Mode, make sure to GENTLY lower flap onto pet’s back. Also avoid possible injury by making sure your pet is entirely through the Cat Flap opening, including paws and tail, before completely releasing flap. • Do not allow your pet to chew on the power cord. www.petsafe.net...
- Page 3 • Make sure there is nothing on the other side of the door where you will be drilling the holes or cutting the opening. • Use a manual screwdriver to tighten screws. Do not over-tighten. Over-tightening can strip the screws or warp the Cat Flap frame. www.petsafe.net...
-
Page 4: Table Of Contents
Customer Care Centre telephone numbers, visit our website at www.petsafe.net. To get the most protection out of your warranty, please register your product within 30 days at www.petsafe.net. By registering and keeping your receipt, you will enjoy the product’s full warranty and should you ever need to call the Customer Care Centre, we will be able to help you faster. -
Page 5: Getting Started
Intelligent Cat Flap is programmable for up to 20 pets. This model of the Passport Intelligent Cat Flap (PPA19-20558) reads the most common type of microchip implanted in cats, the FDX-B (15 digit) ™ microchip, using radio frequency identification (R.F.I.D.) technology. If you are not sure what type of microchip your cat has, please either ask your veterinarian or visit www.petsafe.net and navigate to our Chip Checker, microchip compatibility checker, and enter your microchip code to... -
Page 6: Features, Controls And Indicators
Locking U-Flap Interior Locking U-Flap Serial Number inside battery compartment Concealed Power Connection ControL paneL Left Arrow/ Right Back Key Arrow Key Arrow Key Wireless Card Port LCD Screen Reset Button USB Port Down Enter/Select Arrow Key Arrow Key www.petsafe.net... -
Page 7: Key Definitions
• out-tone – Optional, audible alert that sounds when programmed cat exits. Flap operational mode must be set to Smart Mode for Out-Tone to work. Default factory setting is off with 10 sound options available. • outer frame Size – Overall Cat Flap dimensions. www.petsafe.net... -
Page 8: Icon Definitions
/ SeLeCt InDICator — Indicates more information or options available. Use right arrow key on 5-Button Navigation to view additional information or options. Can sometimes be used to select an option. BaCK InDICator — Indicates lower menu level. Press the back or left arrow key on 5-Button Navigation to return to previous screen. www.petsafe.net... -
Page 9: Connecting Cat Flap To Computer
Connecting to your computer: Use the included USB cable to connect the Cat Flap to the USB Port on your computer. Downloading Software: Open your browser and visit http://connect.petsafe.net. Click the “Register” button and complete registration steps. Battery operation An optional, rechargeable lithium-ion battery is available to use with the Passport Intelligent Cat Flap (sold separately). -
Page 10: Understanding Motion Sensors
Keep the Cat Flap in front of the door or application in the upright, vertical position and proceed to “Initial User Setup”, “Program Pet” and “Test Microchip” steps to continue to check for Radio-Frequency Interferences and check the Motion Sensors. www.petsafe.net... -
Page 11: Initial User Setup
4. Press up or down arrow keys to set year. After setting last field, you are ready to program your cat’s microchip to the Cat Flap. Ensure your cat is nearby before pressing enter to accept date and start programming. Programming the cat to the Cat Flap is time sensitive. www.petsafe.net... -
Page 12: Program Cat
3. Again, stand to side of Cat Flap. Repeat having your cat move toward the Cat Flap to test if the flap is reading the microchip. Make sure to push through flap with your hand to check flap unlocked on exterior side. 4. If you have multiple cats, repeat this test for each cat. www.petsafe.net... -
Page 13: Prepare Passport ™ Key
If installing in a wall, have you checked for electrical and plumbing fixtures in the wall where you plan to install the Cat Flap? If installing in glass, do you have a Passport Glass Adapter Kit (sold seperately)? ™ www.petsafe.net... -
Page 14: Tools Required
(fig. 2a). notICe When applying cutting template there should be a minimum of 8 cm between the bottom and sides of the door and the outer edge of the cutting template to maintain the structural integrity of the door. www.petsafe.net... - Page 15 (t) + 56 mm (fig. 4B). 25 mm - 38 mm No trimming needed. 100mm screw 38 mm - 51 mm No trimming needed. Helpful tip: Remove pencil marks and make sure surface is free of debris and shavings before installing frames. www.petsafe.net...
- Page 16 Apply silicone adhesive around Exterior Frame for improved weather resistance. Plug Power Adaptor into connector on underside of Interior Frame (fig. 5C). Route Power Adaptor wire through wire guides in desired direction towards nearest mains power outlet (fig. 5D). Optional www.petsafe.net...
-
Page 17: Installation In A Wall
Wall Entry Kits are available for wall installations or installation in thicker applications (95 mm to 305 mm thick). The Wall Entry Kit frames ™ out the wall cut-out, giving your installation a clean, smooth, finished look. You may purchase a Passport Wall Entry Kit by visiting our website at ™ www.petsafe.net or calling the Customer Care Centre. www.petsafe.net... -
Page 18: Installation In Glass
Installation in Glass This variant of the Passport Intelligent Cat Flap (Model number: PPA19-20558) can be installed in glass. Glass installation of the Cat Flap requires ™ a glass adapter which is available for purchase by calling the Customer Care Centre. The glass adapter comes with a separate circular cutting template to use specifically for glass installation. - Page 19 Pour en savoir plus sur notre vaste gamme de produits, comprenant des systèmes de confinement, de dressage, de contrôle de l’aboiement, des chatières, des produits consacrés à la santé et au bien-être, de gestion des déjections, ainsi qu’au jeu et aux défis, rendez-vous sur notre site www.petsafe.net. PetSafe -producten zijn ontworpen om de relatie tussen u en uw huisdier te verbeteren.
