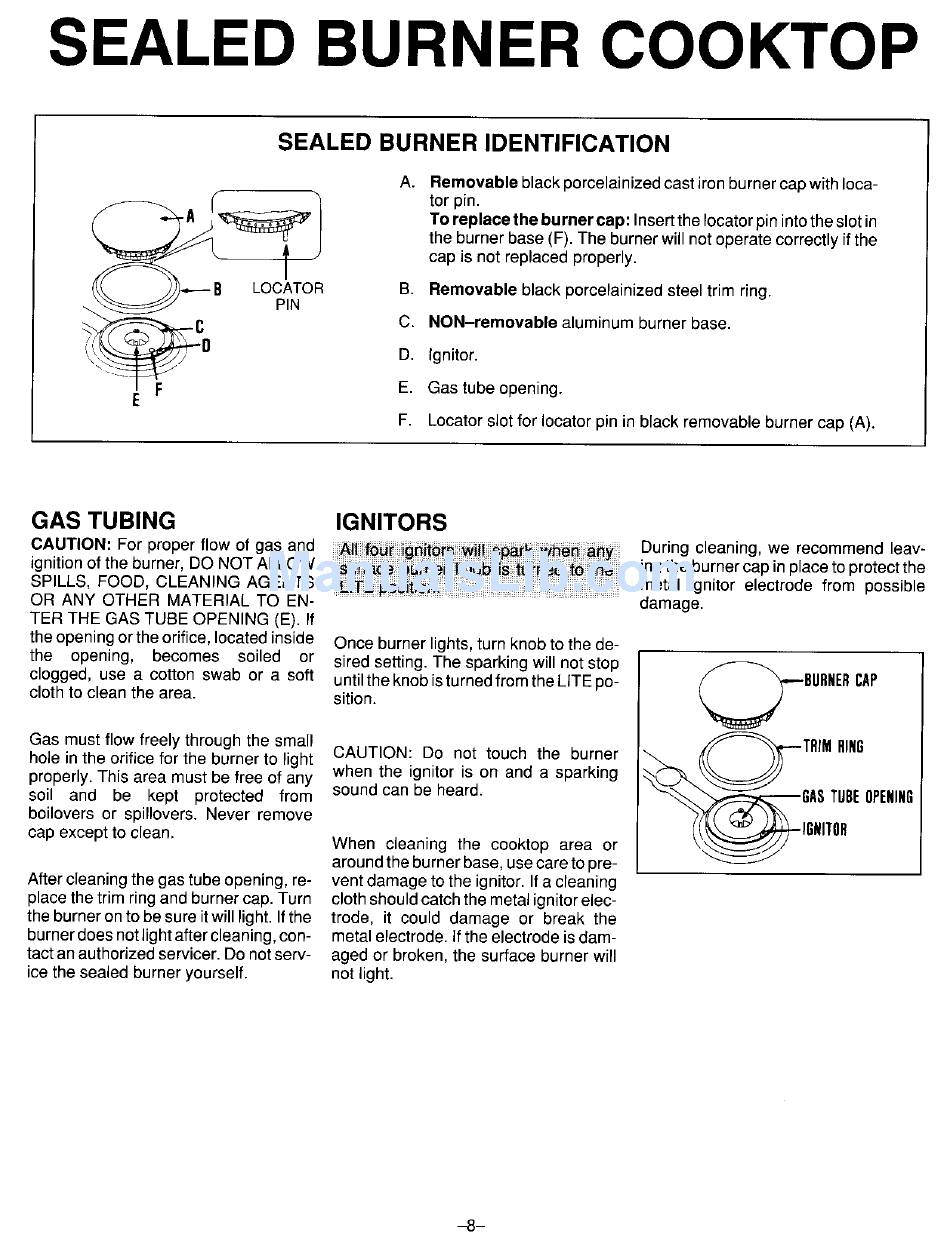

SEALED BURNER COOKTOP
SEALED BURNER IDENTIFICATION
A. Removable black porcelainizedcast iron burner capwith Ioca-
_--- -'_ tor pin.
__ To replace the burner cap: Insertthe Iocatorpin intothe slot in
the burnerbase (F). The burnerwill notoperatecorrectlyif the
cap is not replacedproperly.
OR
_C B LOCAT B. Removable black porcelainized steel trim ring.
C. NON-removable aluminumburnerbase.
D. Ignitor.
E. Gas tube opening.
F. Locatorslot for Iocatorpin in black removableburnercap (A).
GAS TUBING IGNITORS
CAUTION: For properflow of gas and During cleaning, we recommendlear-
ignitionof theburner, DO NOT ALLOW ingthe burnercap in placeto protectthe
SPILLS, FOOD, CLEANING AGENTS metal ignitor electrode from possible
OR ANY OTHER MATERIAL TO EN- damage.
TER THE GAS TUBE OPENING (E). If
the openingorthe orifice,locatedinside Once burner lights,turn knob to the de-
the opening, becomes soiled or sired setting.The sparkingwillnotstop
clothCl°gged'to cleanUSe thea cottOnarea, swab or a soft sition.Untilthe knobisturned from the LITE pc- _"_'_,--BURNEB CAP
Gas must flow freely through the small
hole in the orifice for the burner to light CAUTION: Do not touch the burner _((0_" _TBIM RING
properly. This area must be free of any when the ignitor is on and a sparking _._
soil and be kept protected from sound can be heard. "_'_ GAS TUBE OPENING
boilovers or spillovers. Never remove "_"_(" C=_(_,,.=_Ip, NITOR
cap except to clean. When cleaning the cooktop area or \_/
aroundthe burner base, use care to pre-
After cleaning the gas tube opening, re- vent damage to the ignitor. If a cleaning
place the trim ring and burner cap. Turn cloth should catch the metal ignitor elec-
theburnerontobesureitwilllight, lfthe trode, it could damage or break the
burner does not light aftercleaning, con- metal electrode. If the electrode is dam-
tact an authorized servicer. Do not serv- aged or broken, the surface burner will
ice the sealed burner yourself, not light.
