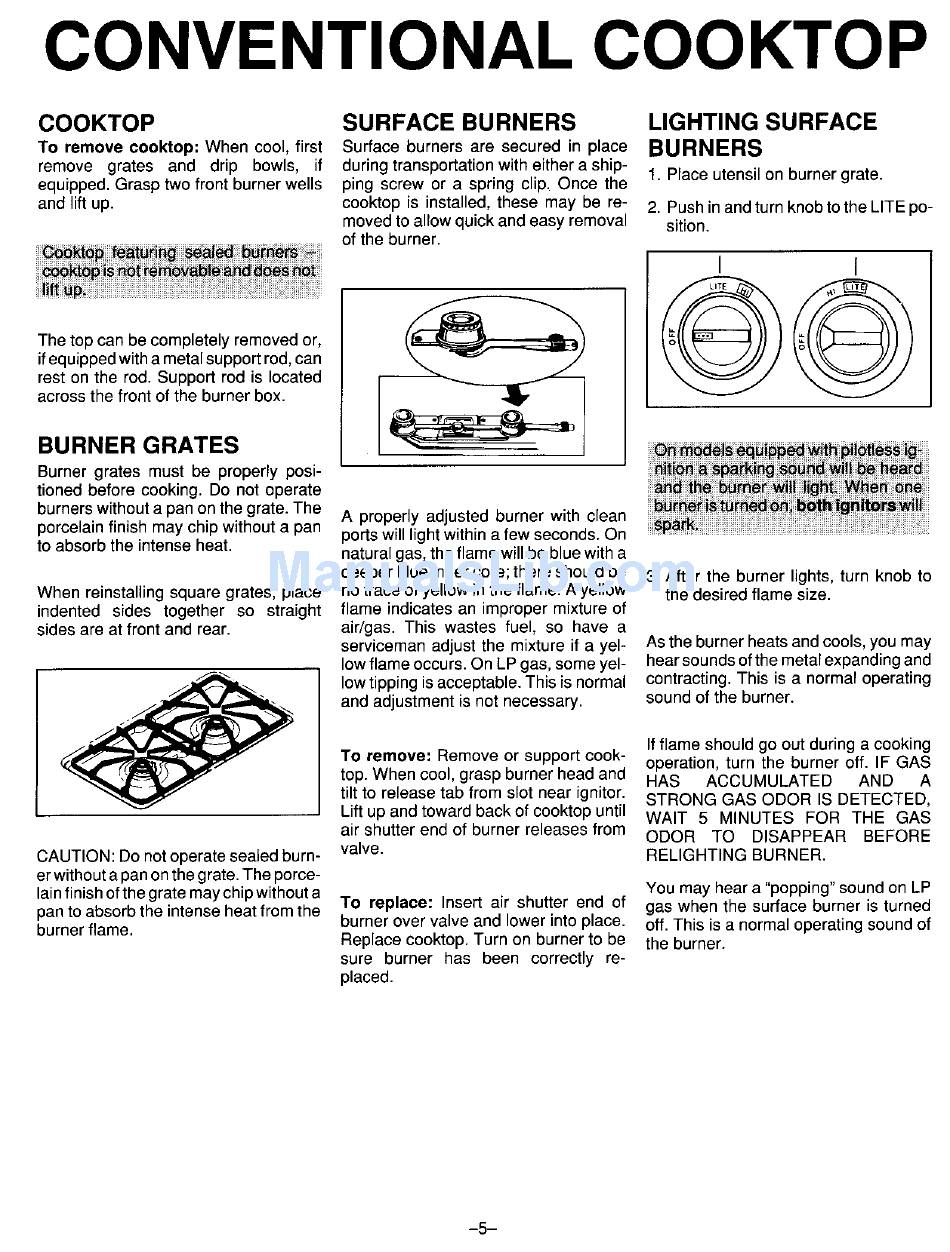

CONVENTIONAL COOKTOP
COOKTOP SURFACE BURNERS LIGHTING SURFACE
To remove eooktop: When cool,first Surface burners are secured in place
BURNERS
remove grates and drip bowls, if duringtransportation witheither a ship-
equipped.Grasp twofront burnerwells ping screw or a spring clip. Once the 1. Place utensilon burnergrate.
andlift up. cooktopis installed,these may be re- 2. Push inand tum knobtothe LITE po-
moved to allow quick and easy removal sition.
of the burner.
I I
Thetopcan be completely removed er, _ _ _
if equippedwith a metalsupport rod,can
rest on the rod. Support rod is located
across the front of the burner box.
BURNER GRATES
Burner grates must be properly posi-
tioned before cooking.Do not operate
burnerswithouta panon the grate.The A properly adjustedburner with clean
porcelainfinishmay chipwithouta pan portswill lightwithin a few seconds.On
to absorbthe intenseheat. naturalgas, the flamewillbe bluewith a
deeper blue innercore;there shouldbe 3. After the burner lights,turn knob to
When reinstallingsquare grates, place notrace of yellowinthe flame. A yellow the desired flame size.
indented sides together so straight flame indicatesan impropermixtureof
sides are at front and rear. air/gas. This wastes fuel, so have a
serviceman adjust the mixtureif a yel- As theburner heatsand cools,you may
lowflame occurs.On LP gas, someyel- hearsoundsof the metalexpanding and
I _ I Iowtipping is acceptable" This is nOrmal contracting" This is a nOrmaIOperating
and adjustment is not necessary, sound of the burner.
If flame should go out during a cooking
To remove: Remove or support cook- operation, turn the burner off. IF GAS
top. When cool, grasp burner head and HAS ACCUMULATED AND A
tilt to release tab from slot near ignitor. STRONG GAS ODOR IS DETECTED,
Lift up and toward backof cooktop until WAIT 5 MINUTES FOR THE GAS
air shutter end of burner releases from ODOR TO DISAPPEAR BEFORE
CAUTION: De not operate seabedburn- valve. RELIGHTING BURNER.
er without a pan on the grate. The porce-
lainfinish of the grate may chip without a You may hear a "popping" sound on LP
pan to absorb the intense heat from the To replace: Insert air shutter end of gas when the surface burner is turned
burner flame, burner over valve and lower into place, off. This is a normal operating sound of
Replace cooktop. Turn on burner to be the burner.
sure burner has been correctly re-
placed.
-5-
