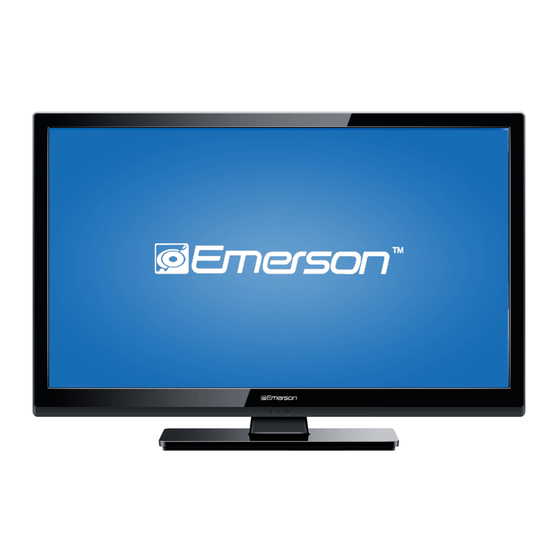

32” lcd tv
Hide thumbs Also See for LF320EM4 A:
Table of Contents

Advertisement

32" LCD TV

SERVICE MANUAL

TYPE A
LF320EM4 A
EMERSON
32ME303V/F7 A
MAGNAVOX
TYPE B
LF320EM4 A
EMERSON
TYPE C
LF320EM4 A
EMERSON
TYPE D
LF320EM4 A
EMERSON
32ME303V/F7 A
MAGNAVOX
LF320EM5F
EMERSON
TYPE E
LF320EM4 A
EMERSON
TYPE F
LF320EM5F
EMERSON
32ME303V/F7 A
MAGNAVOX
LF320EM4 A
EMERSON
TYPE G
LF320EM4 A
EMERSON
32ME303V/F7 A
MAGNAVOX
This service manual contains information of different types of models.
Make sure to refer to the section describing your model.
© 2015 Funai Electric Co., Ltd.
All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed,
downloaded or stored in any storage medium, in any form or for any purpose without the express prior written
consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto
is strictly prohibited.
Information in this document is subject to change without notice. Funai reserves the right to change the content
herein without the obligation to notify any person or organization of such changes.
with the
design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way
without the express written consent of Funai. All other trademarks used herein remain the exclusive property of
their respective owners. Nothing contained in this manual should be construed as granting, by implication or
otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any
other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights
to the fullest extent of the law.
chassis FL14.10
Contents
(Serial No.: DS1, DS2)
(Serial No.: DS1)
(Serial No.: ME2)
(Serial No.: ME5)
(Serial No.: ME1, ME6)
(Serial No.: ME1)
(Serial No.: ME1, ME2)
(Serial No.: ME4)
(Serial No.: ME3)
(Serial No.: ME2)
(Serial No.: ME7)
(Serial No.: ME8, ME9)
(Serial No.: ME3)
150701

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LF320EM4 A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FUNAI LF320EM4 A

  • Page 1: Service Manual

    Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.
  • Page 2: Important Safety Notice

    It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Specifications ................1-1 Important Safety Precautions .
  • Page 4: Specifications

    SPECIFICATIONS < TUNER / NTSC > Description Condition Unit Nominal Limit 1. AFT Pull-In Range ±2.3 ±2.1 TV.ch.4 dBV 2. Synchronizing Sens. CA.ch.31 dBV CA.ch.87 dBV < TUNER / ATSC > Description Condition Unit Nominal Limit 1. Received Freq. Range (-28dBm) ±100 ch.4 -76/0...
  • Page 5: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.
  • Page 6 3. Design Alteration Warning - Do not alter or add 7. Product Safety Notice - Some electrical and to the mechanical or electrical design of this TV mechanical parts have special safety-related receiver. Design alterations and additions, characteristics which are often not evident from including, but not limited to circuit modifications visual inspection, nor can the protection they give and the addition of items such as auxiliary audio...
  • Page 7 Precautions during Servicing A. Parts identified by the # symbol are critical for safety. Replace only with part number specified. B. In addition to safety, other parts and assemblies are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements.
  • Page 8 Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards. 1.
  • Page 9: Standard Notes For Servicing

    STANDARD NOTES FOR SERVICING Circuit Board Indications How to Remove / Install Flat Pack-IC 1. The output pin of the 3 pin Regulator ICs is 1. Removal indicated as shown. With Hot-Air Flat Pack-IC Desoldering Machine: Top View 1. Prepare the hot-air flat pack-IC desoldering Bottom View machine, then apply hot air to the Flat Pack-IC Input...
  • Page 10 3. The flat pack-IC on the CBA is affixed with glue, so With Soldering Iron: be careful not to break or damage the foil of each 1. Using desoldering braid, remove the solder from pin or the solder lands under the IC when all pins of the flat pack-IC.
  • Page 11 With Iron Wire: 2. Installation 1. Using desoldering braid, remove the solder from 1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder the foil of each pin of the flat pack-IC on the CBA flux which is applied to all pins of the flat pack-IC, so you can install a replacement flat pack-IC more you can remove it easily.
  • Page 12 Instructions for Handling Semi- conductors Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1 M) that is properly grounded to remove any static electricity that may be charged on the body.
  • Page 13: Cabinet Disassembly Instructions

    CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart *2: TYPE F *3: TYPE G This flowchart indicates the disassembly steps for the cabinet parts and the CBA in order to gain access to Note: items to be serviced. When reassembling, follow the (1) Order of steps in procedure.
  • Page 14 [2] AC Cord Cover (L-1) (S-2) [1] Stand Cover Assembly (S-1) Fig. D1 FL14.10-A_DC...
  • Page 15 [3] Rear Cover [4] Speaker (S-6) (S-3) (S-6) (S-5) [4] Speaker (S-5) (L-2) (S-5) (S-3) [TYPE G] (S-5) (S-4) (L-2) (S-5) Hook Fig. D2 FL14.10-A_DC...
  • Page 16 (S-8) (S-8) (S-7) [6] PCB Holder (S-7) [5] Digital Main CBA Unit Fig. D3 FL14.10-A_DC...
  • Page 17 [8] Front Cabinet [7] LCD Panel Assembly (L-3) (S-9) (L-3) Shield Plate* Sensor Lens* Hook* (S-9) Control Plate* (S-9) [9] Function CBA Unit Fig. D4 : Make sure to read all the precautions on page 4-1 when you disassemble/re-assemble the Front Cabinet or Function CBA Unit. FL14.10-A_DC...
  • Page 18: Wiring Diagram

    TV Cable Wiring Diagram To LCD Panel [TYPE A, TYPE B, TYPE D, TYPE E, TYPE F, TYPE G] Assembly Digital Main CBA Unit CN1001 CN601 [TYPE A, TYPE B, CN3102 TYPE D, TYPE E] [TYPE F, TYPE G] CN3103 CN3801 CN3101 To LCD Panel...
  • Page 19: Electrical Adjustment Instructions

    ELECTRICAL ADJUSTMENT INSTRUCTIONS 1. Purity Check Mode General Note: “CBA” is abbreviation for “Circuit Board Assembly.” This mode cycles through full-screen displays of red, Note: Electrical adjustments are required after green, blue, and white to check for non-active pixels. replacing circuit components and certain 1.
  • Page 20 The VCOM Adjustment should be 2. Turn the power on. performed when replacing the Digital Note: Execute the VCOM adjustment within 2 minutes after you turn the power on. Main CBA. 3. Enter the service mode. 2. VCOM Adjustment 4. Press [2] button to select the VCOM adjustment. 5.
  • Page 21: White Balance Adjustment

    The White Balance Adjustment should be 6. Press [MENU] button. The internal Raster signal appears in the screen. (“Internal (Single)” appears performed when replacing the LCD Panel, in the upper right of the screen as shown below.) Digital Main CBA. 3.
  • Page 22 15. Press [VOLUME DOWN] button to shift to the “Debugging Message” mode. If there is no message under “[WB]” section, this adjustment completes. If “Drive settings are NG. Retry again.” is displayed, repeat above steps from 5. to 14. Then check “Debugging Message”...
  • Page 23: How To Initialize The Lcd Tv

    HOW TO INITIALIZE THE LCD TV The purpose of initialization is to place the set in a new out of box condition. The customer will be prompted to select a language and program channels after the set has been initialized. To put the program back at the factory-default, initialize the LCD TV using the following procedure.
  • Page 24: Firmware Renewal Mode

    FIRMWARE RENEWAL MODE Equipment Required a. USB storage device b. Remote Control Unit Firmware Update Procedure User Upgrade (Filename example: TVNB2001_00_UH_XX91_AA0/AB0/GB0/GC0.bin) Upgrade the firmware only. The setting values will not be initialized. The User Upgrade and the Firmware Upgrade (Factory Upgrade) will be done by the same file. If you want to upgrade the firmware and initialize the setting values also, add “FACT_”...
  • Page 25 Factory Upgrade (Firmware Upgrade/Flash Upgrade) Firmware Upgrade (Filename example: FACT_TVNB2001_00_UH_XX91_AA0/AB0/GB0/GC0.bin) Upgrade the firmware and initialize the setting values. The User Upgrade and the Firmware Upgrade (Factory Upgrade) will be done by the same file. If you want to upgrade the firmware and initialize the setting values also, add “FACT_” at the beginning of the filename. If you want to upgrade the firmware only and leave the setting values as they are, eliminate the “FACT_”...
  • Page 26: Parts List

    TROUBLESHOOTING Note: This Troubleshooting section covers the entire FL14.10 chassis models. Thus some Reference number of parts shown below may not be used depending on the model. Please refer to the parts list for each model. [Power Supply Section] FLOW CHART NO.1 The power cannot be turned on.
  • Page 27 FLOW CHART NO.5 P-ON+21V is not output. Check D650, D651, C652, C653 and their periphery circuit. Repair it if defective. FLOW CHART NO.6 AMP+13V is not output. FL14.10ATR...
  • Page 28 [Video Signal Section] FLOW CHART NO.1 The key operation is not functioning. Replace the Function CBA Unit. Replace the Digital Main CBA Unit. FLOW CHART NO.2 No operation is possible from the remote control unit. (Operation is possible from the unit.) Check AL+3.3V line and repair it if defective.
  • Page 29 [Audio Signal Section] FLOW CHART NO.1 Audio is not output normally. See FLOW CHART NO.6 <AMP+13V is not output. [Power Supply Section]> Replace the Digital Main CBA Unit. FL14.10ATR...
  • Page 30: Block Diagrams [Type A, Type B]

    BLOCK DIAGRAMS [TYPE A, TYPE B] 1. System Control Block Diagram FL14.10BLS...
  • Page 31 2. Video/Audio Block Diagram FL14.10BLVA...
  • Page 32 3. Digital Signal Process Block Diagram FL14.10BLD...
