Panasonic DMR-ES10EB Service Manual

Hide thumbs Also See for DMR-ES10EB:
Table of Contents

Advertisement

Quick Links

Download this manual

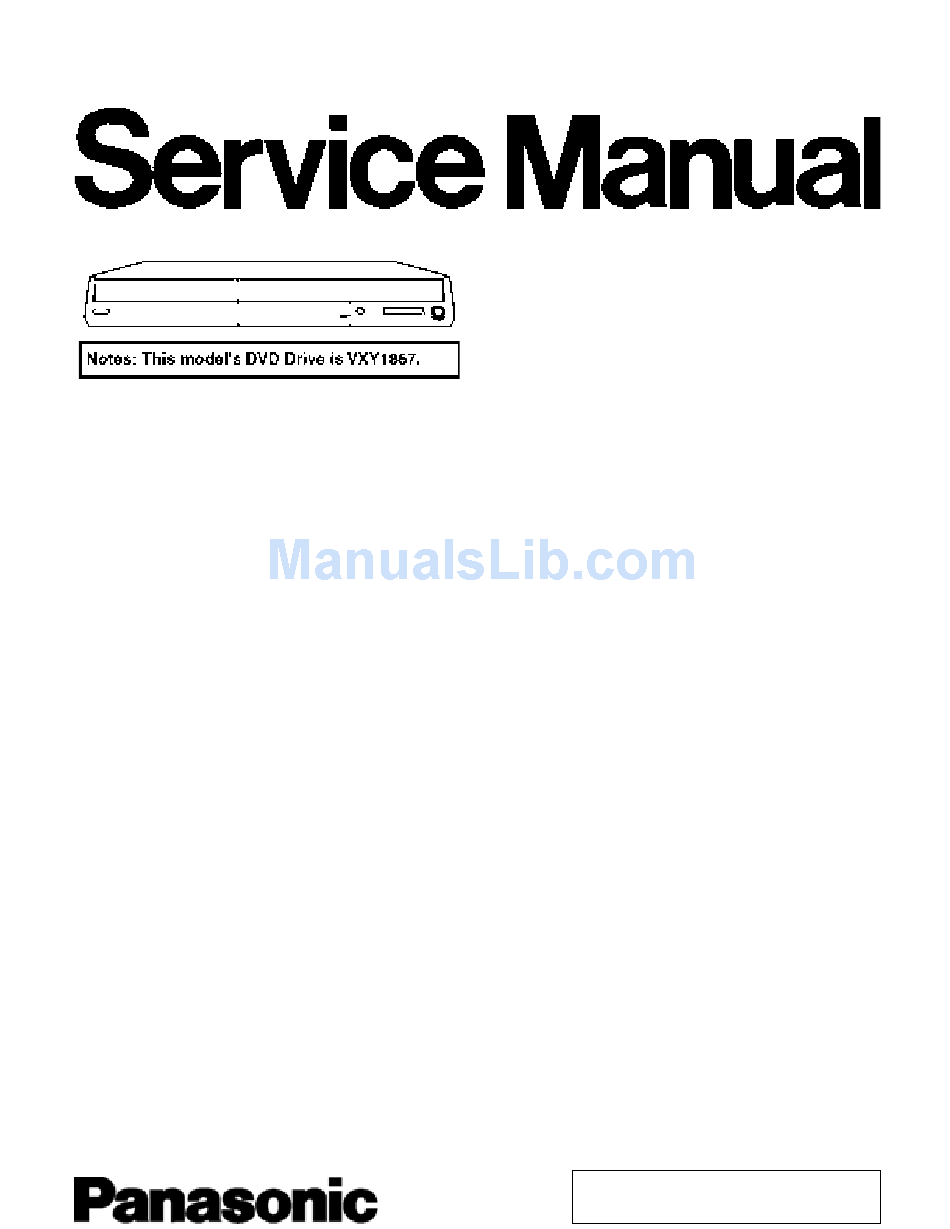

DVD Video Recorder
DMR-ES10EB
DMR-ES10EC
DMR-ES10EG
DMR-ES10EP
DMR-ES10EBL
Vol.1
Colour
(S).......... .............S ilver Type
(K).......... .............B lack Type
© 2005 Matsushita Electric Industrial CO., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO.DSD0503039C2
Unauthorized
copying
and

Advertisement

Table of Contents
loading

Related Manuals for Panasonic DMR-ES10EB

Summary of Contents for Panasonic DMR-ES10EB

  • Page 1 ORDER NO.DSD0503039C2 DVD Video Recorder DMR-ES10EB DMR-ES10EC DMR-ES10EG DMR-ES10EP DMR-ES10EBL Vol.1 Colour (S).......S ilver Type (K).......B lack Type © 2005 Matsushita Electric Industrial CO., Ltd. All rights reserved. Unauthorized copying distribution is a violation of law.
  • Page 2 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL...
  • Page 3 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL...

  • Page 4: Table Of Contents

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL CONTENTS Page Page 1 Safety precautions 13 Caution after replacing parts 1.1. General guidelines 13.1. After replacing the RAM Drive with new one 2 Prevention of Electrostatic Discharge (ESD) to Electrostatic 13.2.

  • Page 5: Safety Precautions

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 1 Safety precautions 1.1. General guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

  • Page 6: Prevention Of Electrostatic Discharge (Esd) To Electrostatic Sensitive (Es) Devices

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 2 Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatic Sensitive (ES) Devices.

  • Page 7: Precaution Of Laser Diode

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 3 Precaution of Laser Diode 4 Handling the Lead-free Solder 4.1. About lead free solder (PbF) Distinction of PbF P.C.B.: P.C.B.s (manufactured) using lead free solder will have a PbF stamp on the P.C.B.

  • Page 8: Each Button

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 5 Each Button For DMR-ES10EC/EG/EP...
  • Page 9 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL For DMR-ES10EB/EBL...

  • Page 10: New Feature

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 6 New Feature 6.1. Quick start function(REC) (Note: Descriptions concerning HDD is applied only to models with HDD.) 1. General A few seconds after tuning on the unit,you can start recording to DVD-RAM,HDD.

  • Page 11: Taking Out The Disc From Ram-Drive Unit When The Disc Cannot Be Ejected By Open/Close Button

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 7 Taking out the Disc from RAM-Drive Unit when the Disc cannot be ejected by OPEN/CLOSE button 7.1. Forcible Disc Eject 7.1.1. When the power can be turned off.

  • Page 12: Service Explorer

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 8 Service Explorer Confirm “RAM-Drive Last Error” in Service Mode Execute Service Mode 1. Press [REC], [CH UP] and [OPEN/CLOSE] simultaneous ly for 5 seconds when P-off. FL Display: *After finishing display “(7).
  • Page 13 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL (5) Error occurring Disc type is displayed for 5 seconds. (6) Disc Maker´s ID is displayed for 5 seconds. Example of Disc Maker´s ID: DVD-R Disc FL Display (Disc Maker´s ID)
  • Page 14 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Error Occurring Disc State...

  • Page 15: Self-Diagnosis And Special Mode Setting

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 9 Self-Diagnosis and Special Mode Setting 9.1. Self-Diagnosis Functions Self-Diagnosis Function provides information for errors to service personnel by “Self-Diagno sis Display” when any error has occurred. U**, H** and F** are stored in memory and held.

  • Page 16: Special Modes Setting

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Error Code Diagnosis contents Description Monitor Display Automatic FL display PLEASE Unit is in termination process Unit is in termination process now. No display WAIT “BYE” is displayed and power will be turned off.
  • Page 17 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Item FL display Key operation Mode name Description Front Key Aging Contents (Example): Demonstration Ejection of the disc is prohibited. *When lock the tray. When the power is on, press...

  • Page 18: Service Modes

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 9.3. Service Modes Service mode setting: While the power is off, press REC, CH UP and OPEN / CLOSE simultaneous ly for five seconds. Item FL display Key operation...
  • Page 19 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Item FL display Key operation Mode name Description (Remote controller key) Audio Mute (XTMUTE) Check whether mute is applied normally by Press [2] [1] in service mode. the timer microprocessor.
  • Page 20 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Item FL display Key operation Mode name Description (Remote controller key) Turn on all FL/LEDs All segments of FL and all LEDs are turned All segments are turned on.
  • Page 21 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Item FL display Key operation Mode name Description (Remote controller key) P50(H) Output Timer Microprocessor IC7501-83 output High Press [8] [4] in service mode. signal for AV1-pin 10 passing through inverter (approx.

  • Page 22: Assembling And Disassembling

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 10 Assembling and Disassembling 10.1. Disassembly Flow Chart The following chart is the procedure for disassemblin g the casing and inside parts for internal inspection when carrying out the servicing.

  • Page 23: Top Case

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 10.3. Top Case 10.5. Digital P.C.B. 1. Remove the 2 screws (A) and 3 screws (B). 1. Remove FFC and a Screw (A). 2. Slide Top Case rearward and open the both ends at rear 2.

  • Page 24: Dvd-Ram Drive

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 10.6. DVD-RAM Drive 2. Remove 3 Screws (B) and disconnect Connector (A). 1. Remove 3 Screws (A) to remove DVD-RAM Drive. 3. Unlock Power P.C.B. from a Flange to remove Power 2.

  • Page 25: Front (L) P.c.b

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 10.9. Front (L) P.C.B. 10.11. Tuner P.C.B. and Nicam Decoder P.C.B. 1. Remove a Screw (A) to remove Front (L) P.C.B. 1. Pull out the Tuner P.C.B. in the direction of the arrow.

  • Page 26: Service Fixture And Tools

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 11 Service Fixture and Tools Part Number Description Compatibility RFKZ0125 Extension FFC (Digital P.C.B. - DVD-RAM Drive / 40 Pin) Same as E50/ E55 series RFKZ0126 Extension Cable (Main P.C.B. - DVD-RAM Drive/ 4 Pin)

  • Page 27: Checking And Repairing Of Digital P.c.b

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 12.2. Checking and Repairing of Digital P.C.B.

  • Page 28: Checking And Repairing Of Main P.c.b

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 12.3. Checking and Repairing of Main P.C.B.

  • Page 29: Checking And Repairing Of Dvd-Ram Drive

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 12.4. Checking and Repairing of DVD-RAM Drive...

  • Page 30: Caution After Replacing Parts

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 13 Caution after replacing parts 13.1. After replacing the RAM Drive with new one 13.2. When the unit does not operate normally after replacing the Timer Microprocessor or Main P.C.B.

  • Page 31: 15.1. Power P.c.b

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 15 Voltage and Waveform Chart Note) Circuit voltage and waveform described herein shall be regarded as reference information when probing defect point, because it may differ from an actual measuring value due to difference of Measuring instrument and its measuring condition and product itself.
  • Page 32 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Ref No. IC3001 MODE PLAY STOP IC3001 Ref No. MODE PLAY STOP IC4009 IC4011 Ref No. MODE 11.6 PLAY 11.6 STOP 11.6 IC4012 IC4901 IC7401 Ref No. MODE 11.6...

  • Page 33: Tuner P.c.b

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Q3907 Q3908 Q3909 Q3910 Q4004 Ref No. MODE -0.9 PLAY -0.9 STOP -0.4 Ref No. Q4006 Q4007 Q4008 Q4009 Q7401 MODE -0.1 -0.1 -0.2 -0.2 11.6 PLAY -0.1 -0.1...

  • Page 34: Waveform Chart

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 15.5. Waveform Chart T1150-15,16,17,18 T1150-7 STOP IC1150-1 STOP T1150-3 STOP STOP 130Vp-p (5 sec.div) 30Vp-p (5 sec.div) 10.0Vp-p (5 sec.div) 30Vp-p (5 sec.div) IC1150-9 STOP P7402-83 REC/PLAY P7402-51 REC/PLAY P7402-47 REC/PLAY 580Vp-p (5 sec.div)

  • Page 35: Abbreviations

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 16 Abbreviations INITIAL/LOGO ABBREVIATIONS INITIAL/LOGO ABBREVIATIONS A0~UP ADDRESS ERROR TORQUE CONTROL ACLK AUDIO CLOCK ERROR TORQUE CONTROL REFERENCE AD0~UP ADDRESS BUS ADATA AUDIO PES PACKET DATA ENCSEL ENCODER SELECT...
  • Page 36 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL INITIAL/LOGO ABBREVIATIONS INITIAL/LOGO ABBREVIATIONS READ ENABLE VBLANK V BLANKING RFENV RF ENVELOPE COLLECTOR POWER SUPPLY RF PHASE DIFFERENCE OUTPUT VOLTAGE (CD-ROM) REGISTER SELECT VCDCONT VIDEO CD CONTROL (TRACKING...

  • Page 37: Block Diagram

    17 Block Diagram 17.1. Power Supply Block Diagram T1150 POWER SWITCHING TRANSFORMER VA1110,L1120,L1121 D1140,C1143 AC INLET F1101 P1101 D1270 250V2A SURGE RECTIFIER SUPPRESSOR X SW+12.4V SURGE ABSORBER IC1150 (SWITCHING IC) IP160 QR18 Q1200 (FEED BACK) IC1200 (ERROR VOLTAGE DET.) COLD...
  • Page 38 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL D+1.5V POWER ON X SW+3.8V IC1501 (REG.ANA+5V) VOUT ANA+5V CONT IC4011 (REG.AU+5V) VOUT AU+5V IC1504 (REG.D+3.3V) 2 VCONT VOUT IC1511 IC7505 (REG.X SW+5.2V) (RESET) 5 CONT P FAIL VOUT X SW+5.2V...

  • Page 39: Analog Video Block Diagram

    17.2. Analog Video Block Diagram IC3001 (VIDEO PROCESSOR) MAIN P.C.B. P9001 P7402 C OUT DM 6MHz BIAS P9001 P7402 Y OUT DM 6MHz CLAMP FROM P9001 P7402 RPROUT DM CLAMP/ DIGITAL BIAS P.C.B. P9001 P7402 GPYOUT DM CLAMP P9001 P7402 BPBOUT DM CLAMP/ BIAS...

  • Page 40: Analog Audio Block Diagram

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 17.3. Analog Audio Block Diagram D4005 Q4006 MUTE FROM XTMUTE QR4002-QR4005 TIMER Q4007 IC7501- 63 Q4004 SECTION MUTE MUTE D4006 Q4009 CIRCUIT MUTE FROM XDMUTE DIGITAL Q4008 IC4408- 4 P.C.B.

  • Page 41: Timer Block Diagram

    17.4. Timer Block Diagram IC7501 IR7501 (TIMER) MAIN P.C.B. REMOTE CONTROL RECEIVER VDD GND CTL. REMOTE CTL. IC7506 (RESET) D+3.3V 81 SYS PFAIL IC7505 QR7506 (RESET) :ON) X SW+5.2V PFAIL S7504 OPEN/CLOSE KEY IN1 KEY IN1 S7506 S7508 S7502 STOP CH-DOWN KEY IN2 KEY IN2...
  • Page 42 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL...

  • Page 43: Schematic Diagram

    18 Schematic Diagram 18.1. Interconnection Schematic Diagram PS7801 PP7401 DR12V BOOSTER 5V BOOSTER 5V DR12V RFC AUDIO RFC AUDIO DRGN RFC A MUTE RFC A MUTE DR5V PS 5V PS 5V CPS V OUT CPS V OUT JC REG 5V JC REG5V IIC CLK IIC CLK...

  • Page 44: Power Supply Schematic Diagram

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 18.2. Power Supply Schematic Diagram ZA1103 ZA1104 K3GD9BB00001 K3GD9BB00001 P1101 D1140 K2AA2H000007 L1120 L1121 B0EDKT000009 F1101 G0B233D00001 G0B233D00001 (RECTIFIER) AC INLET 250V T2AL VA1110 C1121 ERZVA5V471 0.068 C1122...
  • Page 45 R1410 150 R1404 1K R1402 LB1600 < D+1.5V > J0JHC0000048 C1406 R1401 6V680 100K L1401 C1405 1000P D1601 B0JCPD000021 D1400 IC1400 B0JCPE000015 C0DAAJG00007 (DC-DC CONVERTER) C1606 0.01 R1605 R1601 2700 C1400 C1401 C1402 C1403 C1404 25V220 0.01 390P 4700P QR1301 UNR221300L (POWER ON :ON)

  • Page 46: Main Net Section (Main P.c.b. (1/3)) Schematic Diagram

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 18.3. Main Net Section (Main P.C.B. (1/3)) Schematic Diagram (M) TO P1102 POWER P.C.B. TO P9001 P1501 DIGITAL P.C.B. (Audio Net Section) P7402 X SW 5.8V X SW 5.8V X SW 12.4V...
  • Page 47 < JC REG.+5V > < REG.PS+11.6V > < X SW+3.8V > C1511 R1505 CONT BIAS TERMINAL DRIVER SHUTDOWN IC1502 C0CBCBD00018 CURRENT (REG.ANA+3.3V) LIMITTER REFERENCE Vout C1517 470P C1515 10V47 C1512 < ANA+3.3V > < D+3.3V > DMR-ES10EB/EC/EG/EBL/EP Main Net Section(Main P.C.B.(1/3)) Schematic Diagram(M)

  • Page 48: A/V I/O Section (Main P.c.b. (2/3)) Schematic Diagram (Ai)

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 18.4. A/V I/O Section (Main P.C.B. (2/3)) Schematic Diagram (AI) S VIDEO VIDEO AUDIO AUDIO IN L IN R G AADC L A G AADC R A G CIN DM A...
  • Page 49 C3029 0.1 ENC G/Y IN AV1 FB OUT VGND AV1 V IN C3030 50V4.7 ENC B/B-Y IN AV2 FB IN C3031 0.01 REG2.5 AV2 V/Y IN C3014 C3013 25V47:(EB) 10V100:Excep C3034 C3035 0.01 6V100 DMR-ES10EB/EC/EG/EBL/EP A/V I/O Section(Main P.C.B.(2/3)) Schem...

  • Page 50: Timer Section (Main P.c.b. (3/3)) Schematic Diagram (T)

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 18.5. Timer Section (Main P.C.B. (3/3)) Schematic Diagram (T) D7509 B0JDCE000002 X SW 5.2V C7585 6V100 R7621 TW7501 100K IC7505 IC7506 C0EBJ0000336 C0EBE0000457 (RESET) (RESET) OUT VDD GND...
  • Page 51 +38V C7565 25V220 HEATER- R7612 3300 C7571 R761 50V22 C7569 R7614 2200P QR7508 Q7510 UNR521400L 2SD1994BR1VT (POWER SAVE :ON) (SW. :OFF) D7504 MAZ4300NLF DMR-ES10EB/EC/EG/EBL/EP IMPORTANT SAFETY NOTICE: COMPONENTS IDENTIFIED WITH THE Timer Section(Main P.C.B.(3/3)) Schematic Diagram FOR SAFETY.WHEN REPLACING ANY...

  • Page 52: Tuner Pack Schematic Diagram

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 18.6. Tuner Pack Schematic Diagram (EB) (EC/EG/EBL/EP) (EBL K7808 R7814 C7828 K7807 R7813 0.01 LB7805 LB7803 J0JHC0000032 J0JHC000003 LB7802 J0JHC000032 (EB) K7811 C7817 6V47 (EB) (EC/EG/EBL/EP L7802 K7810 C7809 0.01...

  • Page 53: Nicam Decoder Schematic Diagram

    18.7. Nicam Decoder Schematic Diagram COMPARISON CHART OF MODELS & MARKS MODEL MARK C7335 DMR-ES10EG 0.1(B) DMR-ES10EB/EC/EBL/EP IC7302 0.01(A) C0EAH0000051 TO PK7701 (RESET) MAIN P.C.B. (MAIN NET SEC.) PK7301 TU AUDIO IN LB7303 J0JCC0000080 L7303 1u JC REG.5V C7303 C7303...
  • Page 54 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL...

  • Page 55: Print Circuit Board

    19 Print Circuit Board 19.1. Power P.C.B. Power P.C.B. Integrated Circuit P1102 L1270 C1152 C1603 R1156 Diode IC1150 L1400 C1153 C1604 R1157 IC1200 D1140 L1401 C1154 C1605 R1158 IC1400 D1151 L1601 C1200 C1606 R1200 IC1401 D1152 L1701 C1201 C1607 R1201 IC1601 D1155 LB1122...
  • Page 56 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 19.2. Main P.C.B. 19.2.1. Main P.C.B. (1/4 Section) (EG/EC) (EB/EP/EBL)
  • Page 57 19.2.2. Main P.C.B. (2/4 Section) /EC)

  • Page 58: Main P.c.b

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 19.2.3. Main P.C.B. (3/4 Section) Main P.C.B. (EG/EC)
  • Page 59 19.2.4. Main P.C.B. (4/4 Section) (EB) (EG) (EB) Except(EB) (EB)
  • Page 60 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 19.2.5. Main P.C.B. Address Information Main P.C.B. Integrated Circuit TL7510 LB7408 C3033 C4903 IC1501 TL7511 LB7409 C3034 C4904 IC1502 TL7512 LB7414 C3035 C4905 IC1504 TL7513 LB7415 C3038 C7401...

  • Page 61: Tuner P.c.b., Front (L) P.c.b

    19.3. Tuner P.C.B., Front (L) P.C.B. Tuner P.C.B. (EP/EBL) (EB) (EC/EG/EP/EBL) (EP/EBL) (EB) (EB) (EB) (EP/EBL) (EC/EG/EP/EBL) (EC/EG) (EB) (EB) DMR-ES10EB/EC/EG/EBL/EP Tuner P.C.B. VEP07A77A:ES10EC/EG VEP07A77B:ES10EB VEP07A77C:ES10EP/EBL...

  • Page 62: Nicam Decoder P.c.b

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 19.4. Nicam Decoder P.C.B. For ES10EB/EC/EP/EBL Nicam Decoder P.C.B. DMR-ES10EB/EC/EP/EBL Nicam Decoder P.C.B. (VEP07A51A)

  • Page 63: Exploded Views

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 20 Exploded Views 20.1. Casing Parts & Mechanism Section...

  • Page 64: Packing & Accessories Section

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 20.2. Packing & Accessories Section...

  • Page 65: Replacement Parts List

    DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL 21 Replacement Parts List Notes: Ref. Part No. Part Name & Remarks Description *Important safety notice: 12-4 RGK1885-S REC BUTTON RING Components identified mark have special 12-5 RGK1886-Q...
  • Page 66 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description C1517 ECJ1VC1H471J 50V 470P C4018 F2A1H4R7A236 50V 4.7U (EB) C1518 F2A1A101A389 10V 100U...
  • Page 67 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description C7546 F1H0J1050012 6.3V 1U K4012 D0YBR0000002 CHIP RESISTOR (EB) C7550 ECEA0JKA470B 6.3V 47U...
  • Page 68 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description QR7403, UNR521500L TRANSISTOR R4077 D0GB101JA002 1/10W 100 R4078,7 D0GB272JA002 1/10W 2.7K QR7501...
  • Page 69 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description R7587 D0GB224JA002 1/10W 220K D7802 MAZ4300NMF DIODE R7588 D0GB104JA002 1/10W 100K R7589...
  • Page 70 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description C7301 F1H1H1030006 50V 0.01U (EG) R7301 D0YBR0000002 CHIP RESISTOR C7302 D0YBR0000002 CHIP RESISTOR...
  • Page 71 DMR-ES10EB / DMR-ES1 0EC / DMR-ES1 0EG / DMR-ES1 0EP / DMR-ES10EBL Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description C1607 F2A1A681A539 10V 680U R1208 ERJ6GEYJ222V 1/8W 2.2K C1608 F1J1E104A081 25V 0.1U...

This manual is also suitable for:

Dmr-es10epDmr-es10egDmr-es10ecDmr-es10ebl

Table of Contents
