Carl Valentin DYNACODE Quick Reference Manual page 102

Dynacode
Key:
Key:
Mode: Shift
Key:
Key:
Mode: SaveStrt
102

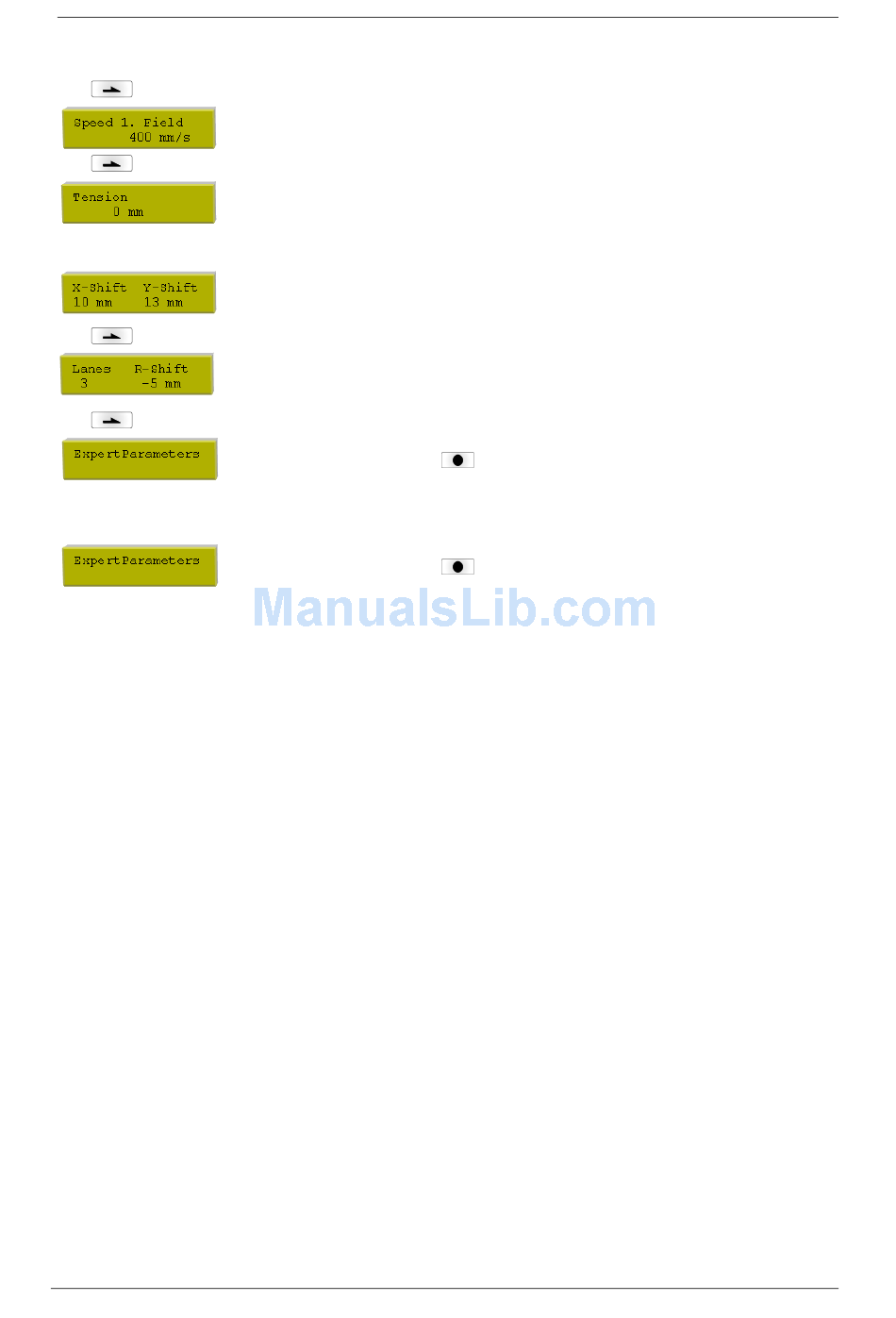

Speed 1. Field:
If 0 (default value) is set, the parameter has no influence to the ribbon save.
Tension:
Indication of length, which is transported forward after measuring the transfer ribbon.
X-Shift and Y-Shift:
X-Shift: Indication of displacement of the printout in X direction.
Y-Shift: Indication of displacement of the printout in printing direction.
Lanes / R-Shift:
Lanes: Indication of number of lanes printed side by side.
R-Shift: Indication of distance when changing to a new lane.
ExpertParameters (password protected):
Enter password and press key
See mode 'Standard' for description of the parameters.
ExpertParameters (password protected):
Enter password and press key
See mode 'Standard' for description of the parameters.
English
to confirm the entry.
to confirm the entry.
