Summary of Contents for Rollei CarDVR-310

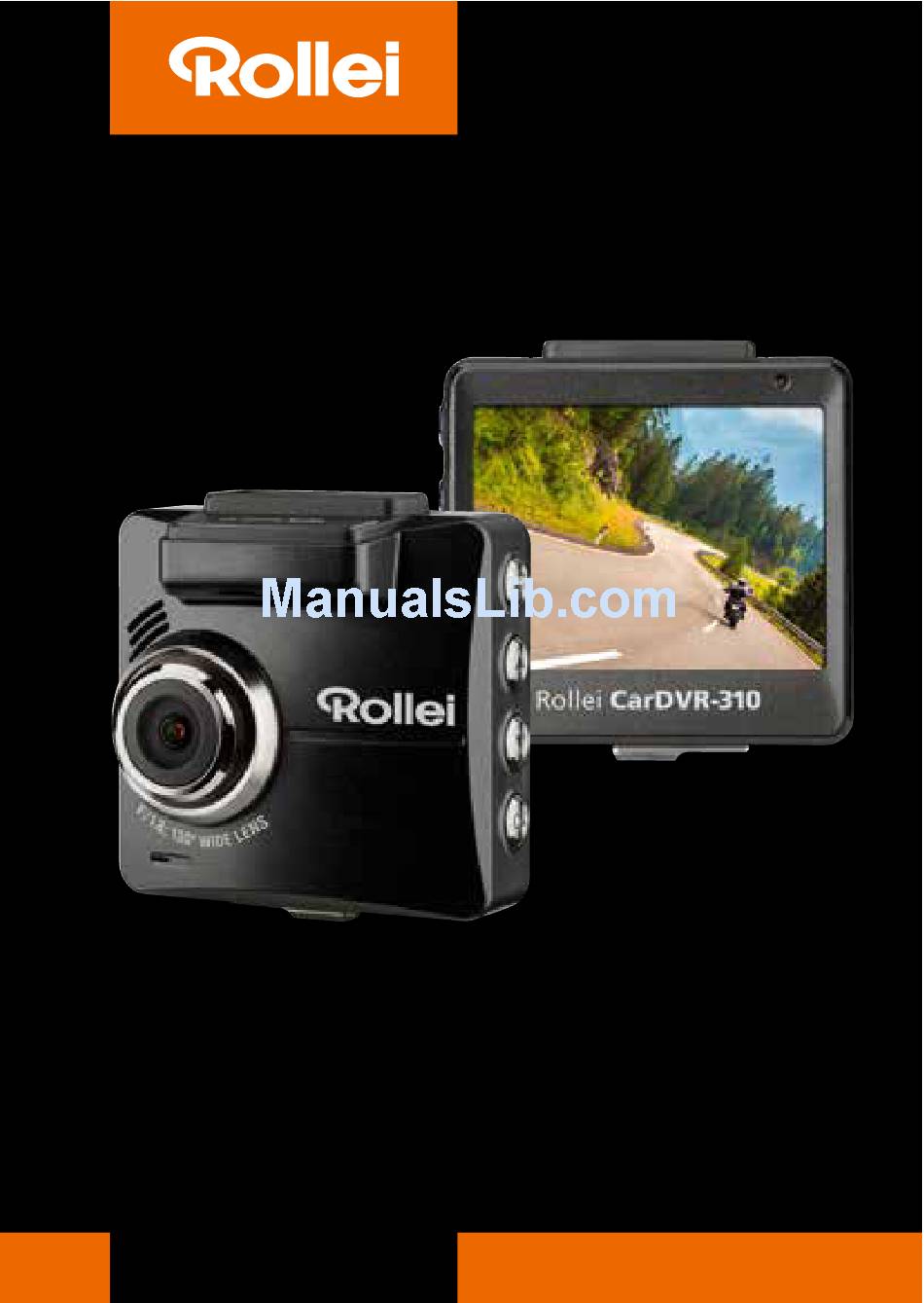

- Page 1 CarDVR-310 User Guide in English www.rollei.com...
-
Page 2: Table Of Contents
2.6.4 Set Timezone........16 CarDVR-310... - Page 3 3 Using the Car Recorder........17 3.1 Recording Videos .
-
Page 4: About This Guide
About this Guide The content in this document is for information purpose and is subject to change without prior notice. We made every effort to ensure that this User Guide is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred. -
Page 5: Battery Warning
Battery warning • Never dismantle, crush, or pierce the battery, or allow the battery to short-circuit. Do not expose battery being placed in high temperature environment, if battery leaks or bulges, stop continue to use. • Always charge using the system. Risk of explosion if battery is replaced by an incorrect type. -
Page 6: Caution
Caution • Due to local laws and vehicles safety considerations, do not operate the device while driving. • Set up time and date accurately before you use this device. • Please use SuperCar software in condition that Google Maps is function normally. -
Page 7: Introduction
Introduction Thank you for purchasing this advanced Car Recorder. This device is specifi- cally designed for real time video recording when driving. 1.1 Features • Full HD recording videos (1920x1440/30fps) • 2.31” LCD color screen • Wide angle lens • Automatic Emergency recording for collision detection •... -
Page 8: Product Overview
1.3 Product Overview No. Item 1 Bracket Socket 2 Power Switch 3 Memory Card Slot 4 USB / Power Connector 5 Back Button ( 6 Up Button ( ) 7 Down Button ( ) 8 Enter Button (OK) 9 GPS Antenna 10 Speaker 11 Wide Angle Lens 12 Microphone... -
Page 9: Getting Started
Getting Started 2.1 Inserting the Memory Card Insert memory card with the gold section facing upward and the screen of the device facing upward too, as illustrated. Push the memory card in until a click sound is heard, indicating the card is in position. To remove the memory card Push to eject the memory card out of the slot. -
Page 10: Installing In Vehicles
2.2 Installing in Vehicles 2.2.1 Mount to Windshield Attach the bracket to the device. Slide it into the bracket holder until you hear a click. Before installing the bracket, please use alcohol to clean the windshield and suction cup of the bracket. -
Page 11: Adjust The Device Position
2.2.2 Adjust the device position Loose the knob (1) to swivel the device vertically or horizontally. Then tighten the knob to make sure the camcorder is securely locked in place. -
Page 12: Connecting To Power
2.3 Connecting to Power Use only the attached power connector for activating the device and charging the built-in battery. Connect one end of power connector to USB/Power connector port on the device. USB port input: DC 5V / 1A. Plug the other end of the car adapter to the cigarette lighter socket of your vehicle. -
Page 13: Led Indicator
Battery Status Indicator: Icon Description Full battery power. 2/3 battery power. 1/3 battery power. Out of battery power. Battery is charging. Connect the car adapter to charge the battery, battery is full charged. Note: Please take note if the environment temperature reaches 45°C or above, the car adapter still can supply power to device, but it will not charge the Lithium-ion battery. -
Page 14: Powering The Device On / Off
2.5 Powering the Device On / Off 2.5.1 Auto Power On/Off Once the vehicle engine is started, the device automatically turns on. If the Automatic Record function is enabled, the recording will automatically start right after the device turns on. Please refer to Set Automatic Record (2.6.2). -
Page 15: Initial Settings
2.6 Initial Settings Before using the device, we recommend you to set up the correct Date and Time and Automatic Record. 2.6.1 Set the Date / Time To set the correct date and time, do the following: If recording is in progress, press the button to stop recording Press the button to enter the OSD menu. -
Page 16: Set The Satellite Synchronization
2.6.3 Set the Satellite Synchronization To set the proper satellite time zone (satellite synchronization), follow the steps below: If recording is in progress, press the button to stop recording Press the button to enter the OSD menu to select Satellite Synchronization and press OK Press into the function. -
Page 17: Using The Car Recorder
Using the Car Recorder Recording Videos 3.1.1 The Recording Screen No. Item Description Duration Indicates the recording duration. You will see the 4 GRID FUNCTION CHART in the 4 GRID FUNCTION CHART LCD screen after you push button. Stop recording Press the button to stop recording. -
Page 18: Record Videos While Driving
3.1.2 Record videos while driving When the vehicle engine starts up and the Automatic Record function is enabled, the device automatically turns on and starts recording. Recording stops and shut down after the engine is switched off. Note: On some cars, the recording will continue when the engine is switched off. If this happens, please manually turn off the cigarette lighter or remove the car adapter from the cigarette lighter. -
Page 19: Stop/Start Recording
3.1.4 Stop/Start recording Press the button to stop recording. Press the OK button to start recording. Note: It can be configured to save a video file for every 3 or 5 minutes of recording. Please refer to (4.2). The device saves the recording in the memory card. If the memory card capacity is full, the oldest file in the memory card is overwritten. -
Page 20: Parking Mode
3.1.7 Parking Mode To monitor the vehicle when it is parked, you can activate Motion Detecti- on or Vibration Detection. If recording is in progress, press the button to stop recording. Press the button to enter the OSD menu. button, select Parking Mode, and then press the OK Press the button. - Page 21 Item Description Motion Detection If disconnected from power when the device is powered on, the system alert message “Wait for 10 seconds to enter Motion Detection, or press OK key to power off.” This means the system will be displayed on the screen. This me- ans the system will enter Motion Detection automatically in 10 seconds, when the device detects any motion in front of lens or detects any external vibration, Video Record will be...
-
Page 22: Grid Function Chart In The Lcd Screen
3.1.8 4 GRID FUNCTION CHART in the LCD screen When the device is recording, press button will enter 4 GRID FUNCTI- ON CHART in the LCD screen, users can check vehicular informations here. Press button once again will go back into your recording. No. -
Page 23: Video Playback
Note: You can press the button from the standby screen and directly enter the playback mode. The final recoding will be shown on the screen. 3.2.1 Video Playback If recording is in progress, press the button to stop recording. Press the button to enter the OSD menu. -
Page 24: The Playback Screen
3.2.3 The Playback Screen Video Playback Screen Picture Playback Screen No. Item Description File selection (back) Press the button to return back to file selection display. Previous File Press the button to review the previous picture/video. Next File Press the button to view the next video/ picture. -
Page 25: Deleting Files
3.2.4 Deleting Files If recording is in progress, press the button to stop recording. Press the button to enter the OSD menu. button, select “File Deletion”, and press the Press the OK button. Press the button, select file type and press the OK button. Press the button, select the file that you wish to delete and then press the OK button to enter the deletion menu. -
Page 26: Adjusting The Settings
4. Adjusting the settings 4.1 Using the menu You can customize the general settings via the on-screen display (OSD) menus. Please note that the menus consist of several pages. The menus can be selected by the button. If recording is in progress, press the button to stop recording. -
Page 27: Menu Items
4.2 Menu Items Refer to the below table for details of main menu and function list. Menu Description Available Option Default Option Item File Play- Select the file type Picture / Video / Video back that you wish to Emergency view. - Page 28 4.2 Menu Items Menu Description Available Option Default Item Option Beep Activate/suspend VOLUME 1 / VOLUME 2 use of sound effects VOLUME 2 / setting. VOLUME 3 / Off LCD Setting Set the screen auto On / shutdown time after Turn Off After 30 sec.
- Page 29 4.2 Menu Items Menu Description Available Default Item Option Option Satellite Automatically synchronize with On / Off Synchroni- the local satellite time. Satellite zation time will be displayed by the system as a first priority after this function is activated, and the time cannot be manually changed subsequently (recom- mend that the time zone is not...
-
Page 30: Installing The Software
5. Installing the Software Place the attached CD ROM into the CD player. If the CD does not execute automatically, please use Windows File Mana- ger to execute the Install_CD.exe file in the CD. The following screen will be shown up: Press the [Menu] item to start the installation process according to the instructions on-screen... -
Page 31: Supercar
6. SuperCar Note: No. Item 1. To display the route on Google Video Player Maps, please make sure the Play / Pause internet is connected before Previous starting the video playback. Next 2. Video files (MOV / TS) and Stop GPS/G-Sensor files (NMEA) Google Map must be stored in the same... -
Page 32: Specifications
7. Specifications Item Description Image sensor 1/3” CMOS sensor Effective pixels 2688 (H) x 1512 (V) Storage media Support Micro SDHC Class 10, max. up to 32 GB LCD display 2.31” LCD color screen Lens Wide Angle Fixed Focus lens | F1.8, f=2.94mm Focus range 1.5m ~ Infinity Satellite System... -
Page 33: Ce Conformity
CE Conformity The Manufacturer hereby declares that the CE marking was applied to the Rollei CarDVR-310 in accordance with the basic requirements and other rele- vant provisions of the following CE Directives: 2011/65/EC RoHs Directive 2004/108/EC Low Voltage Directive 1999/5/EG R&TTE Directive... -
Page 34: License Information
Rollei Service Germany Denisstraße 28a, D-67663 Kaiserslautern (or by e-mail to: service@rollei.com) Subject: “Source code, CarDVR-310” To the extent the product includes proprietary software components, which stem from us and are linked with a library under the GNU Reader... - Page 36 Distribution: Rollei GmbH & Co. KG Tarpen 40/Gebäude 7b 22419 Hamburg Service Hotline: +49 40 270750270 Rollei Return Service Germany: Denisstraße 28a 67663 Kaiserslautern www.rollei.de/social www.rollei.com/social www.rollei.com...
