Summary of Contents for Rollei CarDVR-210

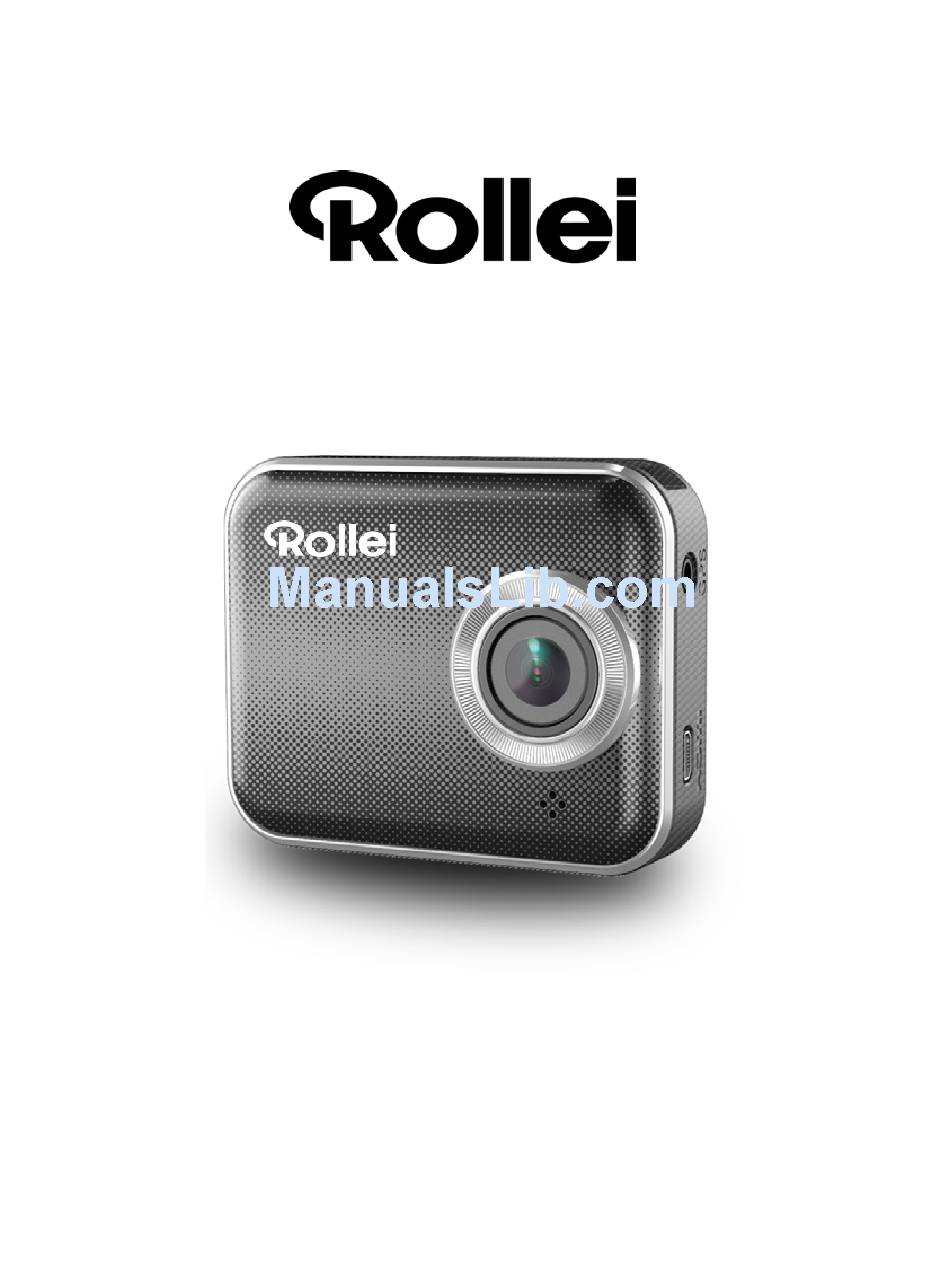

- Page 1 CarDVR-210 WiFi GPS User Manual...
-
Page 2: Names Of Parts
Names of Parts GPS Receiver Slot Lens Micro HDMI Port Speaker Tripod Mount Status Indicator Micro USB Port LCD Panel microSD Card Slot Power/Menu Button Record Button Emergency Button English... -
Page 3: Getting Started
• Car charger • PC USB port • USB adapter (not included) During charging, screen shows battery icon or status indicator flashes in orange. When Rollei Car-DVR is fully charged, the indicator turns off. Shooting a Video 1. Power on: Press to turn on Rollei Car-DVR. - Page 4 Button functions indicated by . Use to navigate menu settings and to back to preview . Menu Settings Rollei Car-DVR has eight menu settings. Advanced settings can be set up via mobile APP. Menu Settings Descriptions Playback Play recorded videos...
- Page 5 3. Copy, move, delete, and playback videos on PC. View Rollei Car-DVR Screen on TV: 1. Connect Rollei Car-DVR to TV via Micro HDMI cable (not included). 2. Turn on Rollei Car-DVR. 3. Rollei Car-DVR screen displays on TV simultaneously.
- Page 6 (1) Local - Direct control (2) Internet - Internet live view Rollei Car-DVR 【 Local 】 Local Internet Mobile connects to Rollei Car-DVR directly via WiFi for remote control, live view, album management and Rollei Car-DVR setup. Local Mobile Rollei Car-DVR 【...
- Page 7 Turn on [Wi-Fi] and select the Rollei Car-DVR name. 2. Run [Rollei Car-DVR]. 3. Tap 【 Local 】 and select the Rollei Car-DVR to enter 【 Local 】 View Page. Tap [ ] to scan again if Rollei Car-DVR is not found.
- Page 8 Edit Email and AP and save in Rollei Car-DVR. Internet Settings (For internet cloud server connection) Car DVR Settings Set motion detector, impact sensor, etc. Note: In Setup Page, tap [Save] to complete settings to Rollei Car-DVR. Mobile media player may not support SuperHD video. English...
- Page 9 Rollei Car-DVR SD Card Setup When SD card is first-time use or reformatted in Rollei Car-DVR, user should allocate memory for Portable Mode and Car Mode. Go to [Setup] [ Rollei Car-DVR Settings ] Adjust slide bar and press [Format] button to complete SD card setup.
-
Page 10: Motion Detector Setup
10 seconds Choose to cancel [Motion Detector] for this time G-Sensor Setup When Rollei Car-DVR is recording and any impacts happen, Rollei Car-DVR automatically records emergency events if G-Sensor is set. Go to APP [Setup] [Car DVR Settings] Select [G-Sensor], [H]/[L] Tap [Save]. - Page 11 【 Internet 】 Function Local Internet Before using APP's 【 Internet 】 function, ensure Rollei Car-DVR internet setup has been completed. Rollei Car-DVR Connects to Cloud Server Enable [Cloud ] in Rollei Car-DVR to upload video streaming to cloud server. Connecting status will be shown on screen.
-
Page 12: Troubleshooting
AP • No internet or cloud server is not accessible or could server • Blocked by some firewall • Rollei Car-DVR WiFi is disabled or not in WiFi coverage Mobile cannot find Rollei Car-DVR • Mobile WiFi is disabled •... -
Page 13: Gps Receiver
GPS Receiver 1. Hardware operation Insert GPS receiver into your device. 2. Install Software to Computer 1. Connect camcorder to PC via standard Micro USB cable. Note: The USB cable in accessory kit is only for power supply in car. Please use other Micro USB cable for installation (ex. - Page 14 • Press to select your SD card. (Unieye Map only can read the video files in SD card ) • Press to forward/play/stop/backward your video. • Press to adjuest the volumn of your video. 2. Speed Meter • Show the speed inforamtion from the records of the video.
- Page 15 5. PIP Mode • In Windows mode, press to change view to Full Screen mode. • The defualt view of Full Screen mode : video in parent window, map in child window. • In Full Screen mode, press to switch view back to Windows mode.
- Page 16 Conformity The Manufacturer hereby declares that the CE marking was applied to the Rollei CarDVR 210 in accordance with the basic requirements and other relevant provisions of the following CE Directives: 2011/65/EC RoHs Directive 2004/108/EC Low Voltage Directive 1999/5/EG R&TTE Directive...
-
Page 17: License Statement
The source text of the software implemented in the product in question can be obtained in response to an enquiry sent to the e-mail address info@rollei.com In this instance your e-mail must contain details of what the relevant product is, the relevant serial number and documentary...
