Chyron infinit! series Operation Manual page 847

If a Crop Box message is read back
during normal Message Compose
operation, the box does not appear,
but will be in the recorded position
when you enter RGB Tools.
To display the Crop Box Adjust menu (Figure 21-2):
• Press

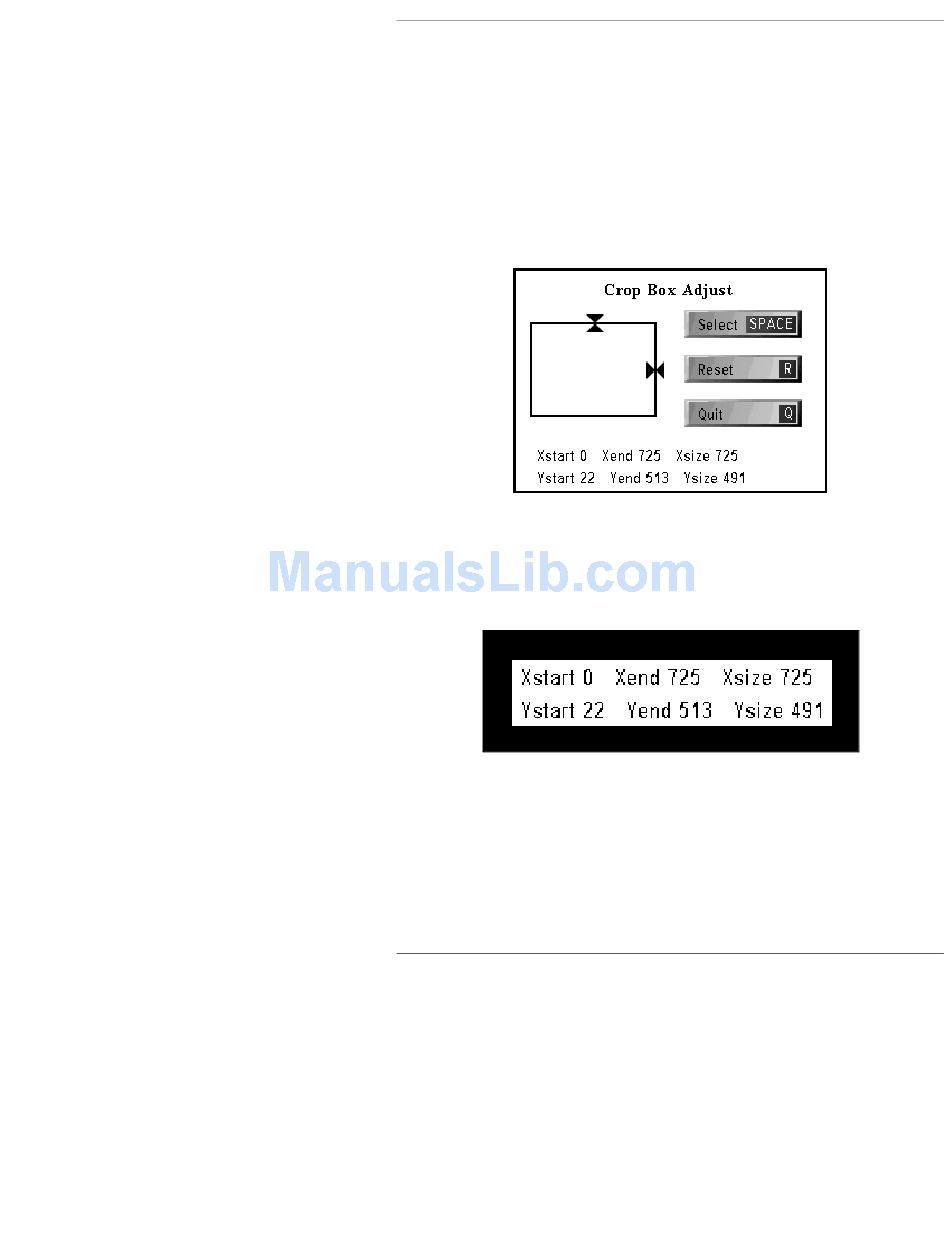

Figure 21-2. Crop Box Adjust Menu
The six fields at the bottom of the window show Crop
Box size and location data (Figure 21-3).
Starting Pixel
Starting Scanline
Figure 21-3. Crop Box Size/Position Indicators
• The location values for the Crop Box are recorded at
the current message number if
in the Crop Box window.
Revision D
iNFiNiT! Family Operation Manual
NOTE
C or select Crop Box .
Ending Pixel Width in Pixels
Ending Scanline Height in Scanlines
21-5
RCD is pressed while
RGB Tools
