HandyWave HPS-120 User Manual

Handyport-serial wireless solutions
Hide thumbs Also See for HPS-120:
Table of Contents

Advertisement

Quick Links

See also: User Manual
HPS-120
HandyPort-Serial
Wireless Solutions in your Hand
User's Manual
Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPS-120 and is the answer not in the manual?

Questions and answers

Related Manuals for HandyWave HPS-120

Summary of Contents for HandyWave HPS-120

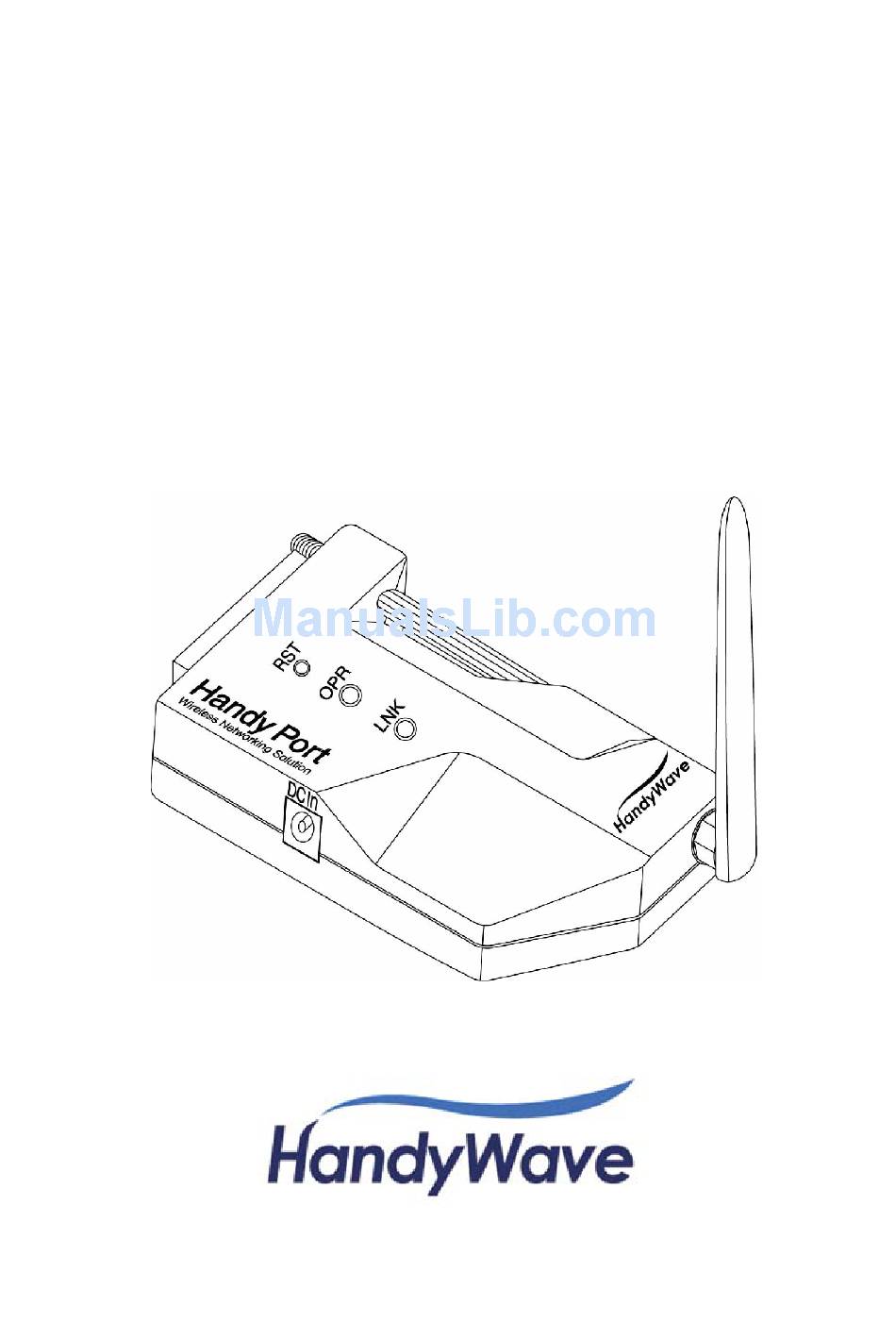

  • Page 1 HPS-120 HandyPort-Serial Wireless Solutions in your Hand User’s Manual Version 2.0...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION........................3 1.1.......................... 3 EATURES 1.2........................... 3 ACKAGE SPECIFICATIONS ......................... 4 2.1........................... 4 ENERAL 2.2. RS-232 I ......................5 NTERFACE 2.2.1. Pin-out ......................... 5 2.2.2. Signals......................... 5 2.3.

  • Page 3: Introduction

    Supports configuration of the remote device via Over-the-Air  Easy of maintenance  Supports up to 100 meter (Line of Sight) 1.2. Package  HPS-120 2 EA  Antenna 2 EA  A USB Cable for Power Supply  A Manual This manual is required the software version 2.0 or above.

  • Page 4: Specifications

    2. Specifications 2.1. General Baud Rate Up to 115.2kbps (Recommend above 2.4kbps) Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2kbps Coverage Up to 100 M Connection Point-to-Point Signal DCD, TxD, RxD, GND, CTS/DSR , DTR, RTS RS-232 Interface D_SUB 9 Pin Female Frequency 2.400 ~ 2.4835GHz Tx.

  • Page 5: Rs-232 Interface

    2.2. RS-232 Interface 2.2.1. Pin-out 2.2.2. Signals Pin Number Signal Direction Description Output Data Carrier Detect Output Transmitted Data Input Received Data N/A (Input) Option: Data Set Ready Signal Ground Output Data Terminal Ready Input Clear to Send Output Request to Send Input Power Supply 2.3.

  • Page 6: Status Led

    OPR (Red): When HPS-120 is supplied the power, it is turned on or flashed.  LNK (Green): When a wireless link is on, it is turned on. If HPS-120 is in the configuration mode, it will be flashing every second.

  • Page 7: Hardware Installation

    D_SUB 9 Pin connector. 3.3. Install Procedure Step 1: Assemble a provided antenna to HPS-120 body. Step 2: Plug a HPS-120 into the COM port of device. Step 3: Power on. Step 4: Configure the HPS-120, if necessary.

  • Page 8: Usage

    Step 1: Plug a HPS-120 into a COM port of PC. And Power it on. Step 2: Open a Hyper Terminal and set it up. Step 3: Push the RST button on HPS-120. If you enter the configuration mode successfully, LNK LED will be flashing every second.

  • Page 9: Command Set

    ‘E’: Enable ‘D’: Disable If you push the RST button, the COM port of HPS-120 will be stored the factory settings. If you change a factory setting for baud rate, you have to remember it. If you change a factory setting for flow control, you have to remember it.
  • Page 10 Connection Set a connection mode. 0: 1:1 Mode MMode<CR> mode Mode: ‘0’ – ‘3’ 1: WAIT Mode Mode 0 & 2: Required a REGISTER remote address. CONNECT Mode Mode 2: Required a serial 3: WAIT Command Mode port. Friendly Set a friendly name up to NName<CR>...
