Splay Angles Adjustment - SLS Audio LS6500 LINE ARRAY Assembly Manual

LS6500 Assembly Guide (4 of 5)

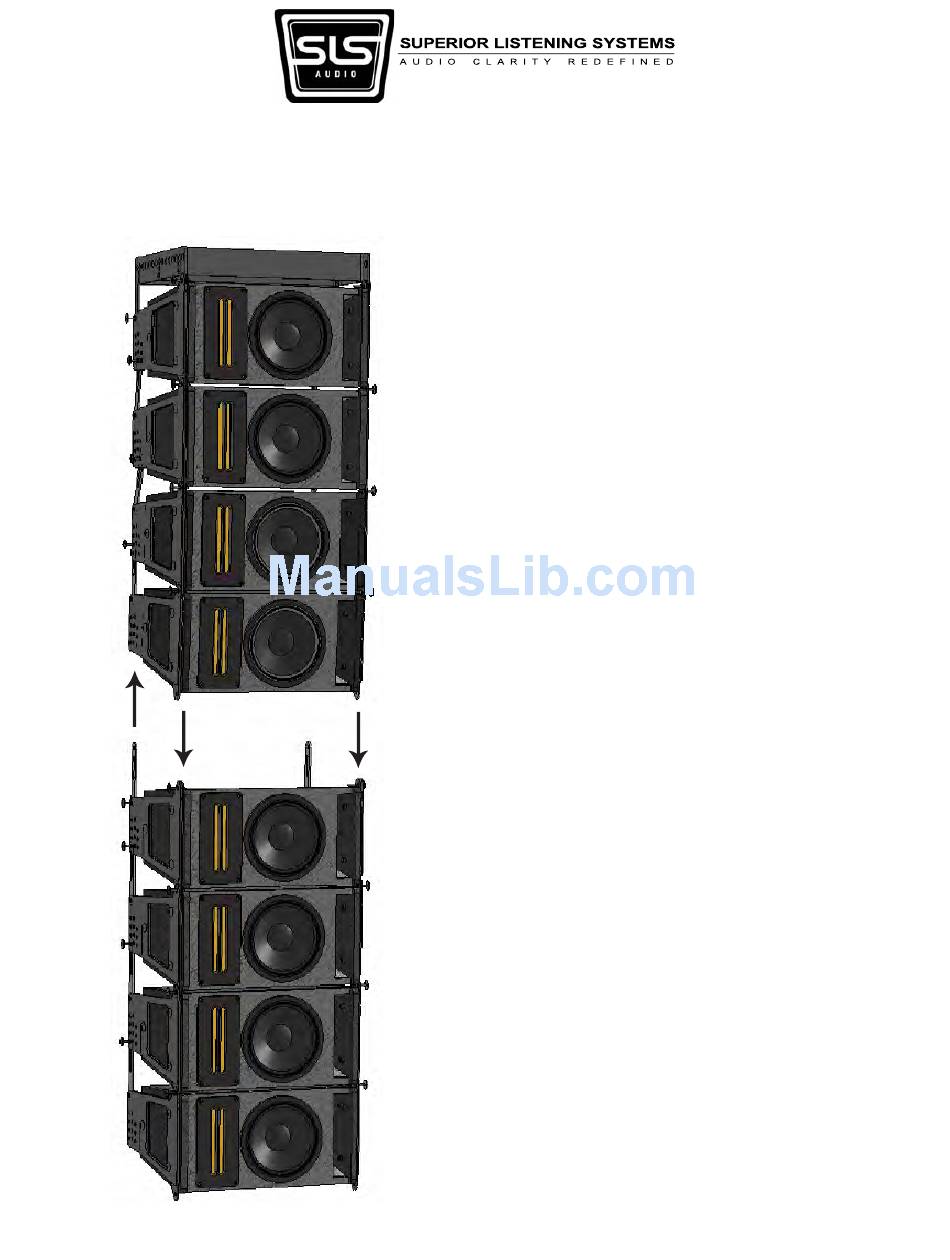

Further raise the array and move the 2nd group of LS6500 line
array elements underneath the flown section. Lower the flown
array and land the elements onto the ground stacked LS6500
group, lining up the front billets. Attach the two front pins
through these front billets, then attach the two rear points
through the splay angle calculated by LASS for that box (you
will most likely have to further lower the flown elements to do
this).
