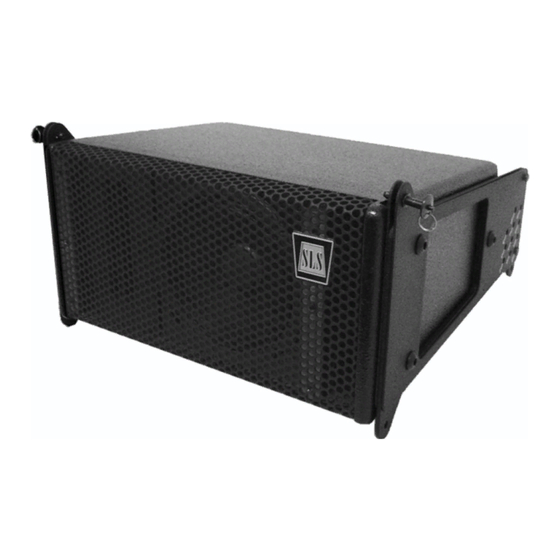

- Page 1 LS6500 Line Array Assembly Guide Rev: 805 1650 W. Jackson Ozark, MO 65721 (417) 883-4549...
- Page 2 LS6500 Assembly Guide Introduction SLS line array rigging is designed to provide a quick method of flying and shaping line arrays. This Guide serves as an overview and provides useful hints regarding array construction. Please read in its entirety before assembling any rigging.
- Page 3 Retain cotter pins and billet arms as spares. Assemble the LS6500 line array elements in groups of four or less by laying them face down and pinning the front two points and the two rear billets at the ‘0’ degree position. Use the supplied black positive locking pins.
- Page 4 LS6500 Assembly Guide (2 of 5) Assemble the RLA/3-BB rigging frame. Attach the frame to the LS6500 without the rear billets (previously removed in step 1) using the supplied positive locking pins (the long extentions of the RLA/3-BB attach to the rear of the top element in place of the removed rotating billets) Note! Use of the optional...
- Page 5 LS6500 Assembly Guide (3 of 5) Rigging Points (15 options) Attach the Rigging Frame to your house rigging on the hole number calculated by LASS and raise the four LS6500’s to a comfortable working height. Set the inter-element splay angles between the array elements, based on the results of your LASS model.
- Page 6 LS6500 Assembly Guide (4 of 5) Further raise the array and move the 2nd group of LS6500 line array elements underneath the flown section. Lower the flown array and land the elements onto the ground stacked LS6500 group, lining up the front billets. Attach the two front pins through these front billets, then attach the two rear points through the splay angle calculated by LASS for that box (you will most likely have to further lower the flown elements to do...
- Page 7 LS6500 Assembly Guide (5 of 5) Raise the rigging frame back to a comfortable working height and adjust the splay angles for all of the second block of elements. Continue as necessary until the array is complete. Note! The Rigging for the LS6500 system is not to exceed (24) LS6500 boxes per...
-
Page 8: Product Specifications
LS6500 System Specifcations Product Specifications Operating Range 85Hz - 20,000Hz Sensitivity (1W/1M) - Low Freq. 91dB High Freq. 101dB Horizontal Coverage Angle -6dB 110 Degrees Vertical Coverage Angle Defined by height and configuration of the array Power Handling - Low Freq. 100W (28 Volts) AES/2 High Freq.
