Note!
LS6500 array components are designed for flown
applications only. For ground-stack applications, use
the LS8695v2-series systems, which share identical
driver components with the LS6500 system.
LS6500 Assembly Guide (1 of 5)
Hardware Billet
"O" degree hole

Assembly:

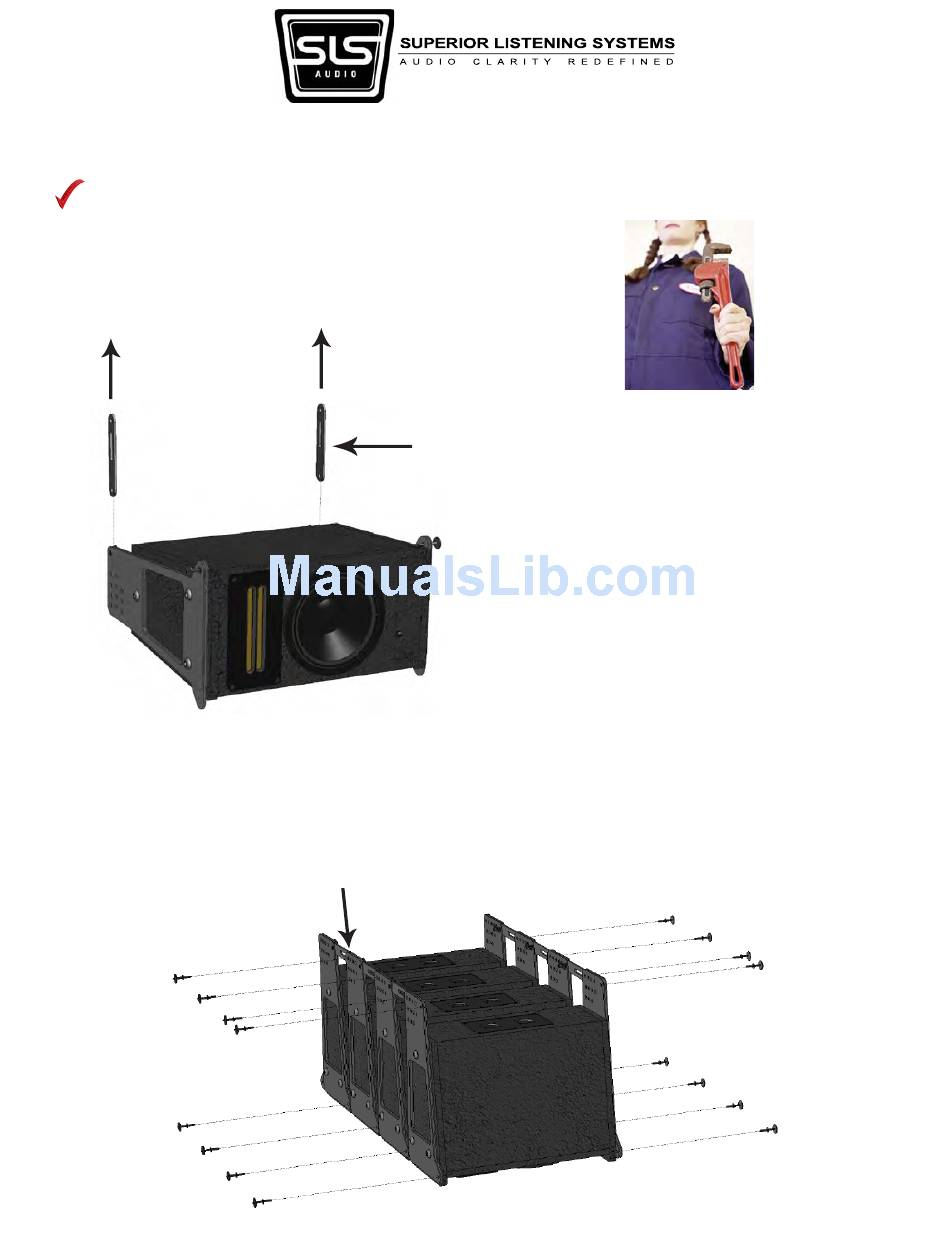

Select one LS6500 element to serve as the top element in your
line array design. Remove the pivoting rear billet arms by
removing the cotter assembly. Retain cotter pins and billet
arms as spares.
Assemble the LS6500 line array elements in groups of four or
less by laying them face down and pinning the front two points
and the two rear billets at the '0' degree position. Use the
supplied black positive locking pins. Re-position the box
groupings vertically. Make sure the LS6500 with the removed
billets is on top of the grouping.
