Enersol Pool Panel Installation Guide

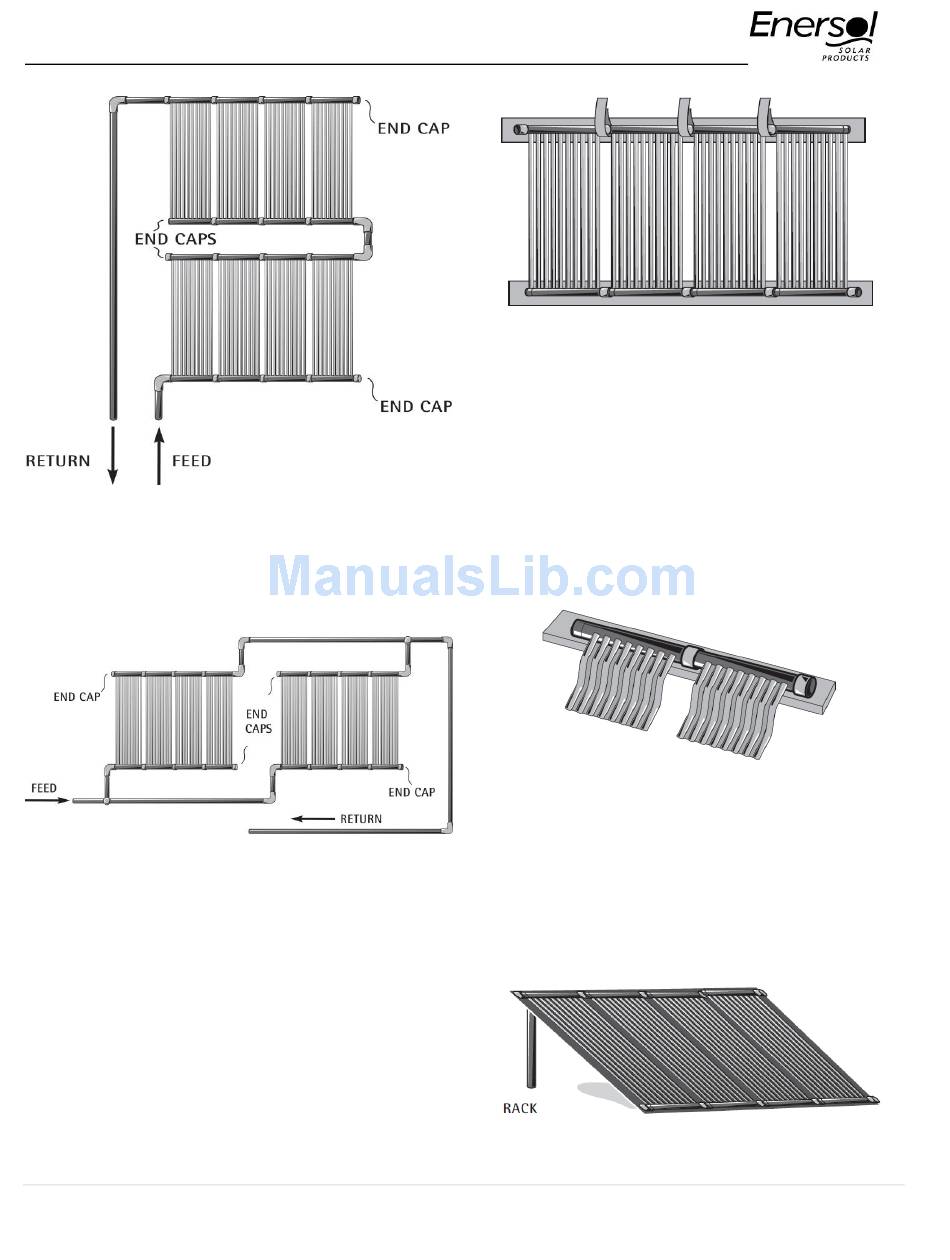

TYPICAL SPLIT-ARRAY REVERSE
RETURN
TYPICAL FLAT ROOF MOUNT
Attach headers to 2x6" lumber on each end.
lumber may then be attached to roof using liquid
adhesive. Ensure that the rubber is not blocking any
roof drainage.
TYPICAL GROUND MOUNT
Support headers with 2x6" lumber. Panels may be
set
on any material that will insulate them from the
earth: plywood, metal, plastic or gravel. Note: Flat
roof or ground mount panels will not gain heat if
sitting in puddles of water, always ensure proper
drainage.
TYPICAL RACK MOUNT
For safety reasons do not mount panels against a p
ool. Rack plywood should be mounted 45° or less.
2x6"
6 |
P a g e
