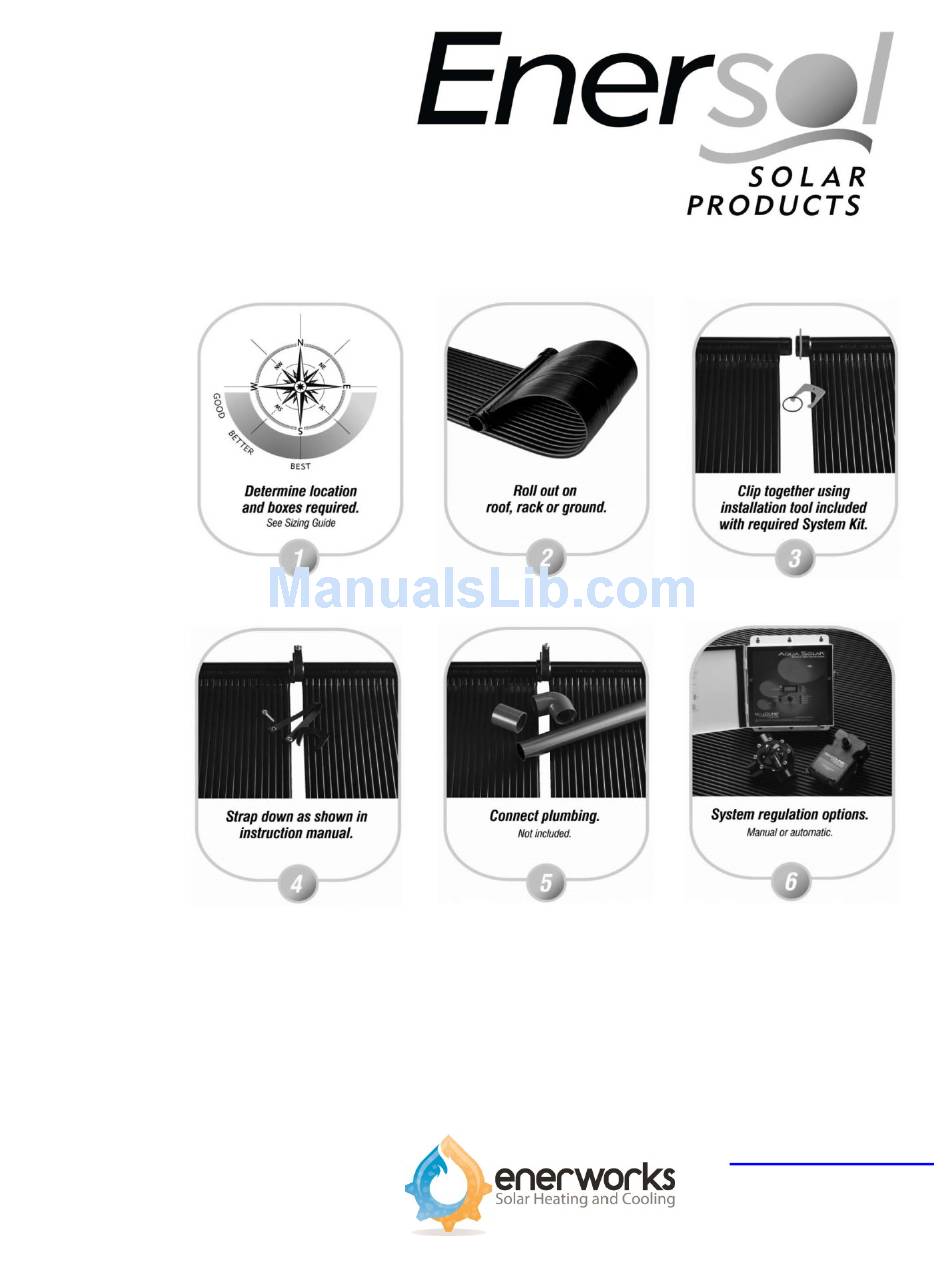

Page 1: Solar Panel
SOLAR PANEL INSTALLATION GUIDE AND OWNERS MANUAL www.enersol.com May, 2015 © 2015 Enerworks... - Page 2 Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 P a g e...
- Page 3 Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 SOLAR PANEL INSTALLATION PANEL BOX INFORMATION 1 section with pre attached headers 2 clips 3 lag bolts 2 O-rings If for any reason whatsoever, the installer of this 1 long strap (48”) product does not feel comfortable and/or safe do 1 short strap (12”)
-
Page 4: Plan Your System
Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 ASSEMBLY INSTRUCTIONS If panel area exceed number of sections that can be OVERVIEW installed in one array (see table) panels must be split to equally sized arrays. See typical split-array reverse return. - Page 5 Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 TYPICAL PARALLEL ROOF Plan for the plumbing and fittings required. Ensure no to exceed maximum velocities allowed on pipes when selecting pipes diameters as per table below. See System...
- Page 6 Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 ASSEMBLY INSTRUCTIONS (CONTINUED) TYPICAL SPLIT-ARRAY REVERSE TYPICAL RACK MOUNT RETURN (Horizontal array) For safety reasons do not mount panels against a pool. Rack plywood should be mounted 45° or less.
- Page 7 Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 Remove from box carefully and unroll panels. If panels become tangled, lay flat and untwist strips from one end to the other Carefully take the sections out of the box...
-
Page 8: Connect Plumbing
Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 ASSEMBLY INSTRUCTIONS PLUMBING (CONTINUED) 5 - Connect Plumbing To complete the securing process, cross strapping (48” long) is used. The straps are attached grommet to grommet across the Join Plumbing to Headers entire width of panels. - Page 9 Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 Join end-caps to Headers Complete the roof installation by connecting the supply and return water lines: measure Connect the end caps to the remaining twice cut once! If you are travelling a headers.
-
Page 10: Check Valve
Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 PLUMBING (Continued) 3-WAY MANUAL VALVE At any low point in the plumbing use a tee and end cap. This will allow for drainage. CHECK VALVE optional, suggested, to be installed on the return line. -
Page 11: Water Sensor
Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 between ON 1 and ON 2 to rotate the handle then let the cement set for 3 hours. Turn your filter so it points to the solar panel feed line. See pump back on to get the water flowing. -
Page 12: System Design Considerations
Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 SYSTEM DESIGN Panel Array Size: every component on a hydraulic system creates resistance or CONSIDERATIONS friction losses, pool solar panels do not escape this reality; care must be taken when Line Set: in this guide “line set”... -
Page 13: Additional Technical Information
Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 diverts the flow to the solar panels and be used as 0.166 gallons per minute for every square feet regulator valve to ensure proper flow, Alternatively a of solar panel (0.166 GPM / Ft2) -
Page 14: Maintenance And Troubleshooting
Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 MAINTENANCE AND If a Section Develops a Leak TROUBLESHOOTING Allow 5 or 10 minutes for the O-ring to seat. Replace O-ring if marked, pinched, nicked or cut. Use O-ring Header or Rubber Replacement lubricant as supplied. - Page 15 Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 A general inspection of the roof at this time is wise. Check for loose lag bolts and strapping. Remove leaves and debris that might block the runoff of rain or snow.
- Page 16 Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 Appendix 1: Pressure Losses in PSI for 8’, 10’ and 12’ Enersol solar panel Pressure Losses on (PSI) for 8 feet long Pool Collectors Width of Array (12 ft. = 12 x 1 ft. sections)
- Page 17 Enersol Pool Panel Installation Guide – EnerWorks Inc. ©, May 2015 Appendix 1: (continued) Pressure Losses in PSI for 8’, 10’ and 12’ Enersol solar panel Pressure Losses on (PSI) for 10 feet long Pool Collectors Width of Array (12 ft. = 12 x 1 ft. sections)
