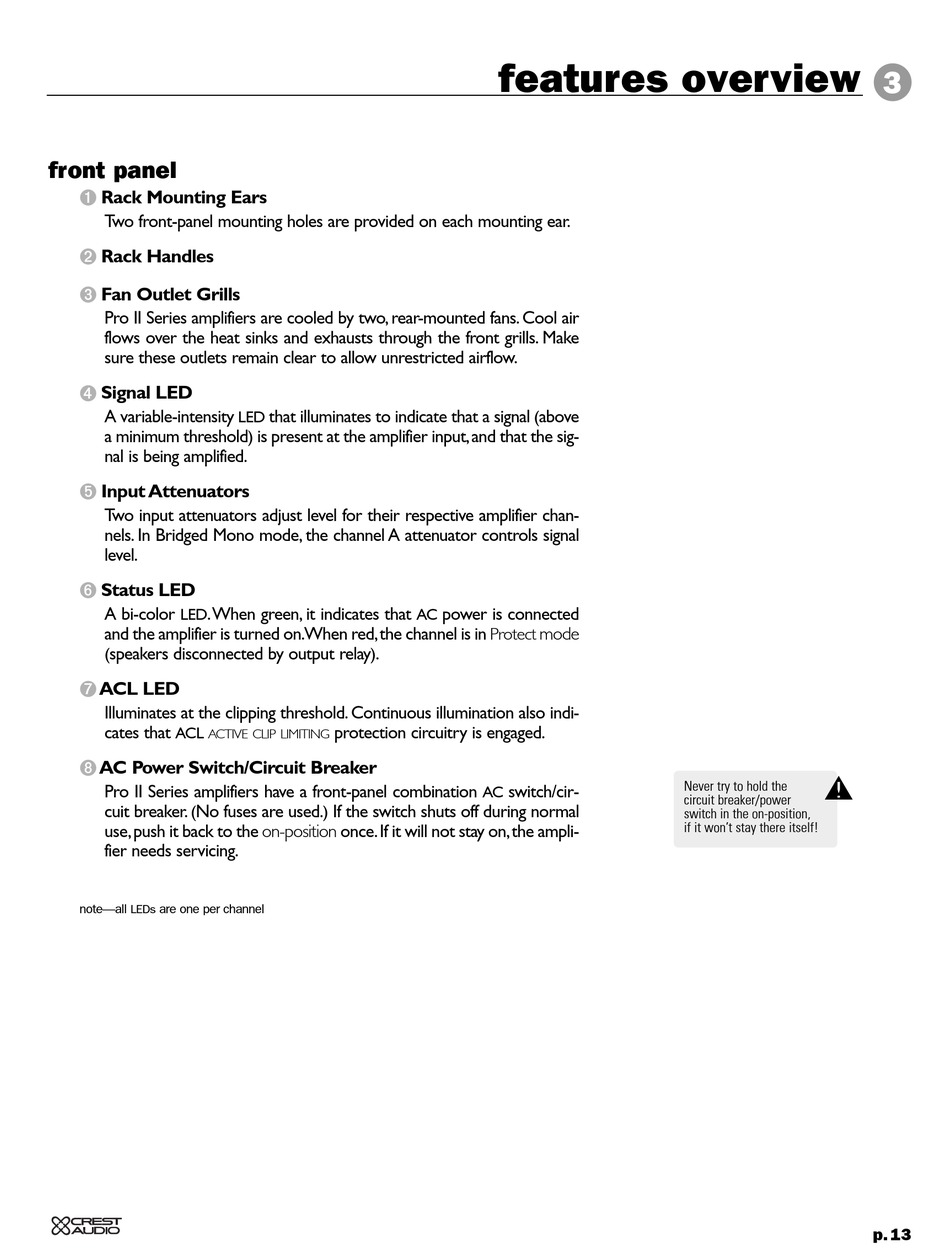

front panel
1
Rack Mounting Ears
Two front-panel mounting holes are provided on each mounting ear.
2
Rack Handles
3
Fan Outlet Grills
Pro II Series amplifiers are cooled by two, rear-mounted fans. Cool air
flows over the heat sinks and exhausts through the front grills. Make
sure these outlets remain clear to allow unrestricted airflow.
4
Signal LED
A variable-intensity
a minimum threshold ) is present at the amplifier input,and that the sig-
nal is being amplified.
5
Input Attenuators
Two input attenuators adjust level for their respective amplifier chan-
nels. In Bridged Mono mode, the channel A attenuator controls signal
level.
6
Status LED
A bi-color .When green, it indicates that
LED
and the amplifier is turned on.When red,the channel is in Protect mode
speakers disconnected by output relay ) .
(
7
ACL LED
Illuminates at the clipping threshold. Continuous illumination also indi-
cates that
ACL
ACTIVE CLIP LIMITING
8
AC Power Switch/Circuit Breaker
Pro II Series amplifiers have a front-panel combination
cuit breaker. ( No fuses are used. ) If the switch shuts off during normal
use,push it back to the on-position once.If it will not stay on,the ampli-
fier needs servicing.
note—all are one per channel
LEDs
that illuminates to indicate that a signal ( above
LED
AC
protection circuitry is engaged.
features overview
power is connected
switch/cir-
AC
a
Never try to hold the
circuit breaker/power
switch in the on-position,
if it won't stay there itself!
