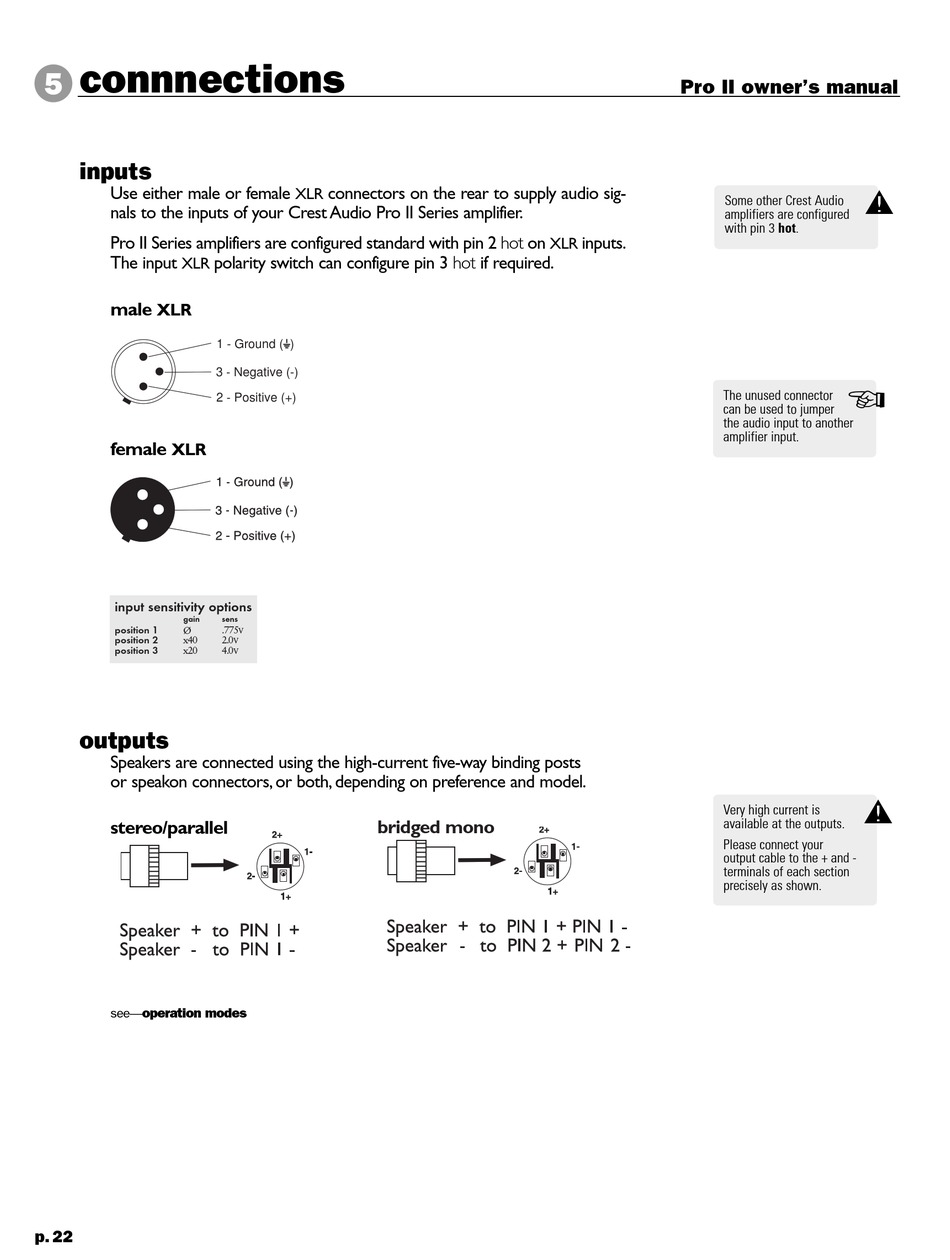

Output; Stereo Parallel - Crest Audio 8002 Owner's Manual

connnections
5
inputs
Use either male or female
nals to the inputs of your Crest Audio Pro II Series amplifier.
Pro II Series amplifiers are configured standard with pin 2 hot on
The input
XLR
male
XLR
female
XLR
input sensitivity options
gain
position 1
Ø
position 2
x40
position 3 x20
outputs
Speakers are connected using the high-current five-way binding posts
or speakon connectors, or both, depending on preference and model.
stereo/parallel
see— operation modes
p. 22
connectors on the rear to supply audio sig-
XLR
polarity switch can configure pin 3 hot if required.
1 - Ground ( )
3 - Negative (-)
2 - Positive (+)
sens
.775
V
2.0
V
4.0
V
bridged mono
Pro II owner's manual
Some other Crest Audio
amplifiers are configured
with pin 3 hot.
inputs.
XLR
The unused connector
can be used to jumper
the audio input to another
amplifier input.
Very high current is
available at the outputs.
Please connect your
output cable to the + and -
terminals of each section
precisely as shown.
