features overview
3

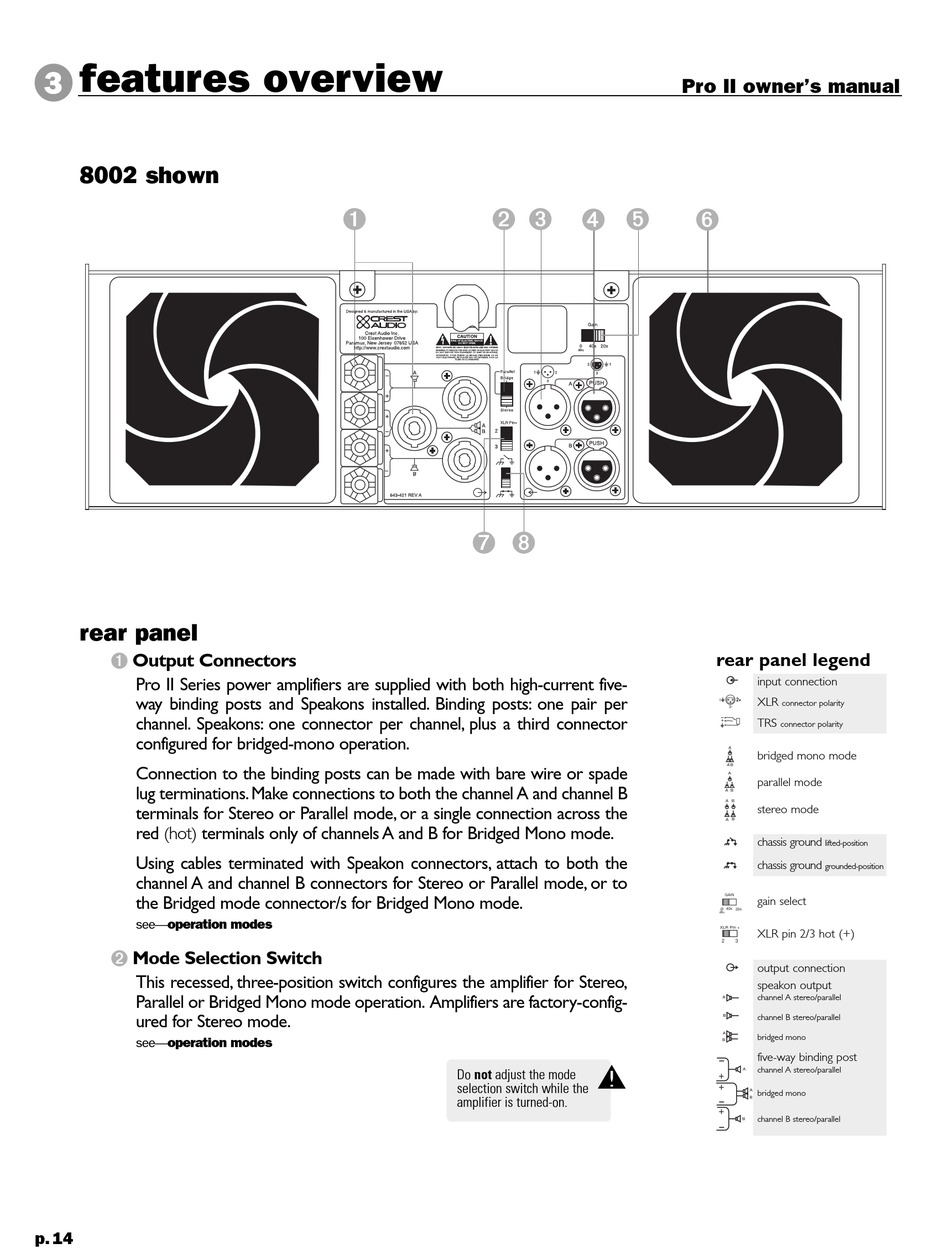

8002 shown

rear panel

1

Output Connectors

Pro II Series power amplifiers are supplied with both high-current five-
way binding posts and Speakons installed. Binding posts: one pair per
channel. Speakons: one connector per channel, plus a third connector
configured for bridged-mono operation.
Connection to the binding posts can be made with bare wire or spade
lug terminations. Make connections to both the channel A and channel B
terminals for Stereo or Parallel mode, or a single connection across the
red ( hot ) terminals only of channels A and B for Bridged Mono mode.
Using cables terminated with Speakon connectors, attach to both the
channel A and channel B connectors for Stereo or Parallel mode, or to
the Bridged mode connector/s for Bridged Mono mode.
operation modes
see—
2
Mode Selection Switch
This recessed, three-position switch configures the amplifier for Stereo,
Parallel or Bridged Mono mode operation. Amplifiers are factory-config-
ured for Stereo mode.
operation modes
see—
p. 14
1 2 3
7 8
Do not adjust the mode
selection switch while the
amplifier is turned-on.
Pro II owner's manual
4 5 6
rear panel legend
input connection
2+ XLR
1
3-
+
TRS
A
bridged mono mode
A B
A
parallel mode
A B
A B
stereo mode
A B
chassis ground
chassis ground
GAIN
gain select
Ø 40x 20x
dBu
XLR Pin +
XLR pin 2/3 hot (+)
2 3
output connection
speakon output
channel A stereo/parallel
A
B channel B stereo/parallel
A
bridged mono
B
five-way binding post
a
channel A stereo/parallel
A
+
+
A
bridged mono
B
+
channel B stereo/parallel
B
connector polarity
connector polarity
lifted-position
grounded-position
GAIN
Ø 40x 20x
dBu
XLR Pin +
2 3
