Rheem Loline 271 Owner's Manual And Installation Instructions

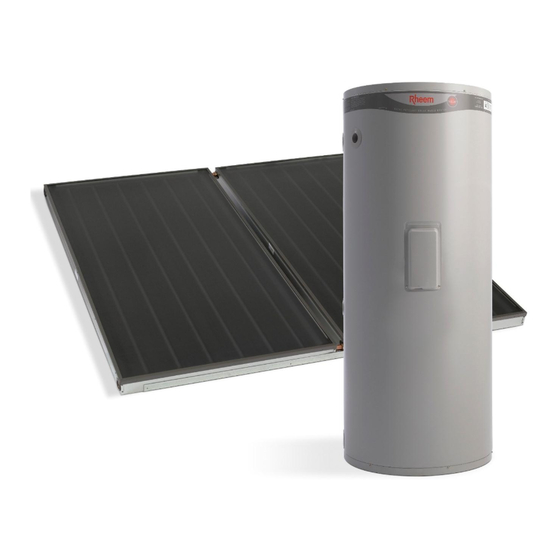

Solar loline water heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Guide
and
Installation Instructions
Solar Loline Water Heater
WARNING: Plumber – Be Aware
Use copper pipe ONLY. Plastic pipe MUST NOT be used.
It is a requirement of a solar water heater installation that all pipe work be in copper
and not plastic, due to the effects of high water temperatures and pressures.
This water heater must be installed and serviced by a qualified person.
Please leave this guide with the householder.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Loline 271 and is the answer not in the manual?

Questions and answers

Related Manuals for Rheem Loline 271

Summary of Contents for Rheem Loline 271

  • Page 1 Owner’s Guide Installation Instructions Solar Loline Water Heater WARNING: Plumber – Be Aware Use copper pipe ONLY. Plastic pipe MUST NOT be used. It is a requirement of a solar water heater installation that all pipe work be in copper and not plastic, due to the effects of high water temperatures and pressures.
  • Page 2 Rheem Australia Pty Ltd. TRADE MARKS ® Registered trademark of Rheem Australia Pty Ltd. ™ Trademark of Rheem Australia Pty Ltd. Note: Every care has been taken to ensure accuracy in preparation of this publication. No liability can be accepted for any consequences, which may arise as a result of its application.

  • Page 3: Table Of Contents

    CONTENTS HOUSEHOLDER – We recommend you read pages 4 to 22. The other pages are intended for the installer but may be of interest. About Your Water Heater ......................4 Regular Care ..........................13 Water Supplies ........................... 16 Save A Service Call ........................19 Installation –...

  • Page 4: About Your Water Heater

    The solar storage tank is suitable for either outdoor or indoor installation and can be installed with Rheem NPT 200, HBT 200 / LCS or TBT 200 / CSA2007 solar collectors. This single element model solar storage tank has only one front cover, located at the midpoint of the tank.
  • Page 5 ABOUT YOUR WATER HEATER Normal operation As the sun heats the water in the solar collectors, the increase in temperature activates the circulator. The circulator switches on whenever the water in the solar collectors is hotter than the water in the solar storage tank.

  • Page 6: About Your Water Heater

    Refer to setting Control” on page 8. minimum booster setting Rheem recommends the thermostat is set at 60°C to maximise solar contribution. maximum recommended Note: AS 3498 requires that a water heater provides the means to inhibit the supply growth of Legionella bacteria in potable water.
  • Page 7 Warning: For continued safety of this water heater it must be installed, operated and maintained in accordance with the Owner’s Guide and Installation Instructions. The Rheem warranty may not cover faults if relief valves or other safety devices are tampered with or if the installation is not in accordance with these instructions.
  • Page 8 ABOUT YOUR WATER HEATER BOOSTER CONTROL An isolating switch is installed in the electrical meter box for the solar storage tank. This should be left switched on to allow the booster heating unit to operate if required. The booster heating unit is for heating the water at times of low solar energy gain, such as during very cloudy or rainy weather, or during the colder months.
  • Page 9 If the red LED continues to emit a rapid pulse for longer than ten (10) minutes, or emits a series of flashes, then count the number of flashes and phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.
  • Page 10 It is essential the electrical circuit to the solar control unit is continually turned on if there is a risk of freezing. The Rheem warranty does not cover damage caused by freeze conditions when the electrical circuit to the solar control unit is turned off or interrupted.
  • Page 11 ABOUT YOUR WATER HEATER BLEEDING THE SOLAR COLLECTORS It is necessary to purge air from the collector circuit:  When the water heater is to be turned on and the solar collectors and solar hot and solar cold pipes have been drained.
  • Page 12 ABOUT YOUR WATER HEATER GOING ON HOLIDAYS If you plan to be away from home, conserve energy by switching the booster switch “OFF”. It is not necessary “To Turn Off The Water to switch off the electrical supply at the power outlet to the solar control unit. Refer to Heater”...

  • Page 13: Regular Care

    Note: The five year service and routine replacement of any components, such as the anode and relief valves, are not included in the Rheem warranty. A charge will be made for this work. Only genuine replacement parts should be used on this water heater.
  • Page 14 Rheem Service or their nearest Accredited Service Agent. The expansion control valve should be checked for performance or replaced at intervals not exceeding 5 years, or more frequently in areas where there is a high incidence of water deposits.
  • Page 15 REGULAR CARE FLUSHING THE SOLAR COLLECTORS It may be necessary to flush the solar collectors if there is sediment in the water supply. This should be conducted in the morning, within three hours of sunrise. Warning: It is important flushing of the solar collectors be conducted early in the morning, within three hours of sunrise, when the sun is low in the sky.

  • Page 16: Water Supplies

    If an incorrect colour coded anode is used in the water heater, any resultant faults will not be covered by the Rheem warranty. In addition, the use of an incorrect colour coded anode may shorten the life of the water heater cylinder.
  • Page 17 Where the saturation index exceeds +0.40, the water is very scaling. An expansion control valve must be fitted on the cold water line after the non-return valve to protect and for the Rheem warranty to apply to the temperature pressure relief valve and water heater cylinder. Solar collectors in an open circuit solar water heater system should be covered when the water heater is not intended to be used for more than two weeks.

  • Page 18: Water Supplies

    The water heater, solar collectors and their components are not suitable for certain water chemistries. Those chemistries are listed below. If the water heater is connected at any time to a water supply with the following water chemistry, the Rheem warranty will not cover any resultant faults on the components listed below: Water Chemistry Component Total Dissolved Solids (TDS) >...

  • Page 19: Save A Service Call

     Collector area is too small For most installations, the number of solar collectors recommended in Rheem literature has been proven to provide the required solar energy to meet the average family needs. However, in some circumstances, it may be necessary to install an additional solar collector.
  • Page 20 Heavy flows of hot water until the water heater is cold - then stops until water reheats The water heater must be switched off at the isolating switch or switchboard. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.
  • Page 21 If the power outlet for the solar control unit is switched on, switch off for a few seconds and then switch on again. If the green LED remains off there may be a fault with the water heater. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.
  • Page 22 COLLECTOR GLASS The Rheem warranty DOES NOT cover breakage of solar collector glass. Check your household insurance policy covers collector glass breakage. Warning: No attempt should be made to remove or replace broken collector glass.

  • Page 23: Installation - System

    INSTALLATION – SYSTEM THIS WATER HEATER IS NOT SUITABLE FOR POOL HEATING. SOLAR COLLECTORS The system is suitable for installation with Rheem NPT200, HBT200 / LCS or TBT200 / CSA2007 solar collectors. In Australia, systems with NPT200 solar collectors are suitable for installation in all climate zones.
  • Page 24 “Terms of the Rheem Warranty” at the solar control unit (refer to on page 51). Note: The Rheem warranty against freeze damage applies only to systems installed in Australia. INSTALLATION STANDARDS The water heater must be installed: ...

  • Page 25: Installation - Solar Storage Tank

    INSTALLATION – SOLAR STORAGE TANK SOLAR WATER HEATER STORAGE TANK LOCATION The solar storage tank is suitable for either outdoor or indoor installation. Whether located outdoor or indoor, the solar storage tank should be installed close to the most frequently used outlet and its position chosen with safety and service in mind.
  • Page 26 INSTALLATION – SOLAR STORAGE TANK TANK WATER SUPPLY If the water heater is supplied with water from a tank supply and a minimum water supply pressure of 200 kPa at the water heater cannot be achieved, then a pressure pump system must be installed to allow the collector circuit system to operate.
  • Page 27 INSTALLATION – SOLAR STORAGE TANK CIRCULATED HOT WATER FLOW AND RETURN SYSTEM The solar storage tank of a solar water heater should not be installed as part of a circulated hot water flow and return system in a building. The benefits of solar gain will be significantly reduced. In-tank electric boosting If this solar water heater has its electric heating unit connected for in-tank boosting and a circulated flow and return system is required, it is necessary to install a secondary water heater in the circulated flow and return...
  • Page 28 INSTALLATION – SOLAR STORAGE TANK Circulated Hot Water Flow and Return System – Solar Water Heater with In-series Boosting LEGEND Temperature Limiting Device A temperature limiting device cannot be installed in circulated hot water flow and return pipe work. The tempered water from a temperature limiting device cannot be circulated.
  • Page 29 If an incorrect colour coded anode is used in the water heater, any resultant faults will not be covered by the Rheem warranty. In addition, the use of an incorrect colour coded anode may shorten the life of the water heater cylinder.
  • Page 30 INSTALLATION – SOLAR STORAGE TANK DIMENSIONS AND TECHNICAL DATA Solar Direct Pumped Electric Boost Models - Single Element Model Tank Mass (kg) Storage Boost Dimensions (single mid Capacity Capacity Empty Full element) 511 271 270 litres 140 litres 511 325 325 litres 170 litres 511 410...
  • Page 31 INSTALLATION – SOLAR STORAGE TANK TYPICAL INSTALLATION (SINGLE ELEMENT) – OUTDOOR LOCATION TYPICAL INSTALLATION (SINGLE ELEMENT) – INDOOR LOCATION Solar Direct Pumped Electric Boost Models - Single Element Solar Direct Pumped Electric Boost Models - Single Element Typical Installation Solar Storage Tank Typical Installation Solar Storage Tank...

  • Page 32: Installation - Solar Control Unit

    If the cylinder is damaged as a result of mounting the solar control unit to the jacket, “Saddling - Pipe Work” any resultant faults will not be covered by the Rheem warranty (refer to page 29).
  • Page 33 INSTALLATION – SOLAR CONTROL UNIT SOLAR STORAGE TANK WITH RAISED SOLAR HOT INLET Numbers in parentheses refer to items on diagram on page 34 for single element models. To mount the solar control unit and connect the solar cold pipe on a single element model with a raised solar hot inlet (and raised heating unit): ...
  • Page 34 INSTALLATION – SOLAR CONTROL UNIT Note: The solar control unit automatically controls the flow rate through the collector circuit. This is achieved via the hot and cold sensors and differential controller programming providing control over the operation of the circulator. There is no provision for nor is adjustment to the solar control unit required. from solar to solar collectors...

  • Page 35: Installation - Solar Collectors

    INSTALLATION – SOLAR COLLECTORS SOLAR COLLECTOR LOCATION Consideration must be given to the position of the solar collectors in relation to the solar storage tank. There are limitations on the maximum length of the solar hot and solar cold pipes between the solar storage tank and “Solar Water Heater Storage Tank Location”...
  • Page 36 INSTALLATION – SOLAR COLLECTORS However, the optimum orientation of solar collectors is not always practical or achievable. Solar collectors may be installed up to 90° from the optimum orientation. Where the orientation is greater than 60° from the optimum, either an additional solar collector or selective surface collectors in lieu of non selective surface collectors may be installed to make up for the reduction in solar performance.
  • Page 37 INSTALLATION – SOLAR COLLECTORS LATITUDE OF SOME AUSTRALIAN CITIES Adelaide 35°S Cairns 17°S Hobart 42°S Port Hedland 20°S Alice Springs 24°S Canberra 35°S Mildura 34°S Rockhampton 24°S Brisbane 27°S Darwin 12°S Melbourne 38°S Sydney 34°S Broken Hill 31°S Geraldton 28°S Perth 32°S Townsville...
  • Page 38 INSTALLATION – SOLAR COLLECTORS WARNING: Plumber – Be Aware  The solar hot and solar cold pipes between the solar storage tank and the solar collectors MUST BE of copper. All compression fittings must use brass or copper olives.  The full length of the solar hot and solar cold pipes MUST BE insulated.
  • Page 39 INSTALLATION – SOLAR COLLECTORS Maximum Height to Collectors The maximum height of an open circuit solar Loline installation, from the solar controller (circulator) to the top of the solar collectors, is determined by the maximum recommended total pipe length for the system and the water supply pressure.

  • Page 40: Connections - Plumbing

    CONNECTIONS – PLUMBING All plumbing work must be carried out by a qualified person and in accordance with the requirements of the Standard AS/NZS 3500.4, and all local codes and regulatory authority requirements. In New Zealand, the installation must conform to Clause G12 of the New Zealand Building Code. Warning: Certain types of plastic pipe, such as polybutylene pipe, are not suitable to be used as a hot water pipe between: ...
  • Page 41 CONNECTIONS – PLUMBING A disconnection union must always be provided at the cold water inlet, solar cold water outlet, solar hot water inlet and hot water outlet on the water heater to allow for disconnection of the water heater. This water heater has either a plastic dip tube or fitting liner in the inlet and outlet fittings (see diagram).
  • Page 42 CONNECTIONS – PLUMBING RELIEF VALVE DRAIN DN15 copper drain lines must be fitted to the temperature pressure relief valve and expansion control valve (if one is installed). Connect the drain lines to the valves using disconnection unions. The drain line from the valve to the point of discharge should be as short as possible, have a continuous fall all the way from the water heater to the discharge outlet and have no tap, valves or other restrictions in the pipe work.

  • Page 43: Connections - Electrical

    CONNECTIONS – ELECTRICAL The power supply to the water heater must not be switched on until the water heater is filled with water and a satisfactory megger reading is obtained. All electrical work and permanent wiring must be carried out by a qualified person and in accordance with the Wiring Rules AS/NZS 3000 and all local codes and regulatory authority requirements.
  • Page 44 CONNECTIONS – ELECTRICAL THERMOSTAT SETTING The thermostat connected to the booster heating unit is adjustable from 60°C to 70°C. The thermostat is adjusted by turning the adjuster anticlockwise to decrease the temperature setting and clockwise to increase the temperature setting. Only adjust the temperature setting when the isolating switch is switched off at the switchboard.
  • Page 45 CONNECTIONS – ELECTRICAL BOOSTER CONTROL The isolating switch installed in the electrical meter box for the solar storage tank should be left switched on. Leaving the isolating switch switched on will also provide a sufficient period of time each day for the booster heating unit to operate, if required, to satisfy the requirements of AS 3498.

  • Page 46: Commissioning

    If there is a risk of freezing, then it is necessary to drain the solar collectors and solar flow and return pipe “Draining the Solar Collectors” work (refer to on page 49).  “Terms of the Rheem Warranty” Refer to on page 51.
  • Page 47 COMMISSIONING BLEEDING THE SOLAR COLLECTORS Upon completion of the installation, it is necessary to purge the air from the collector circuit. To purge air from the collector circuit:  Ensure the water heater is full of water and all of the hot taps are turned off.
  • Page 48 If the red LED continues to emit a rapid pulse for longer than ten (10) minutes, or emits a series of flashes, then count the number of flashes and phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.

  • Page 49: Draining The Solar Collectors

    DRAINING THE SOLAR COLLECTORS To drain the solar collectors and the solar hot and solar cold pipe:  Cover the solar collectors with an opaque material.  Open a hot water tap and allow the water to run for five minutes immediately prior to draining the solar collectors.
  • Page 50 This page is intentionally blank.
  • Page 51 2.1 The decision of whether to repair or replace a faulty component is at Rheem’s sole discretion. 2.2 If you require a call out and we find that the fault is not covered by the Rheem warranty, you are responsible for our standard call out charge.

  • Page 52: Warranty

    3. WHAT IS COVERED BY THE RHEEM WARRANTY FOR THE WATER HEATERS DETAILED IN THIS DOCUMENT 3.1 Rheem will repair or replace a faulty component of your water heater if it fails to operate in accordance with its specifications as follows:...

This manual is also suitable for:

Loline 325Loline 410

Table of Contents
