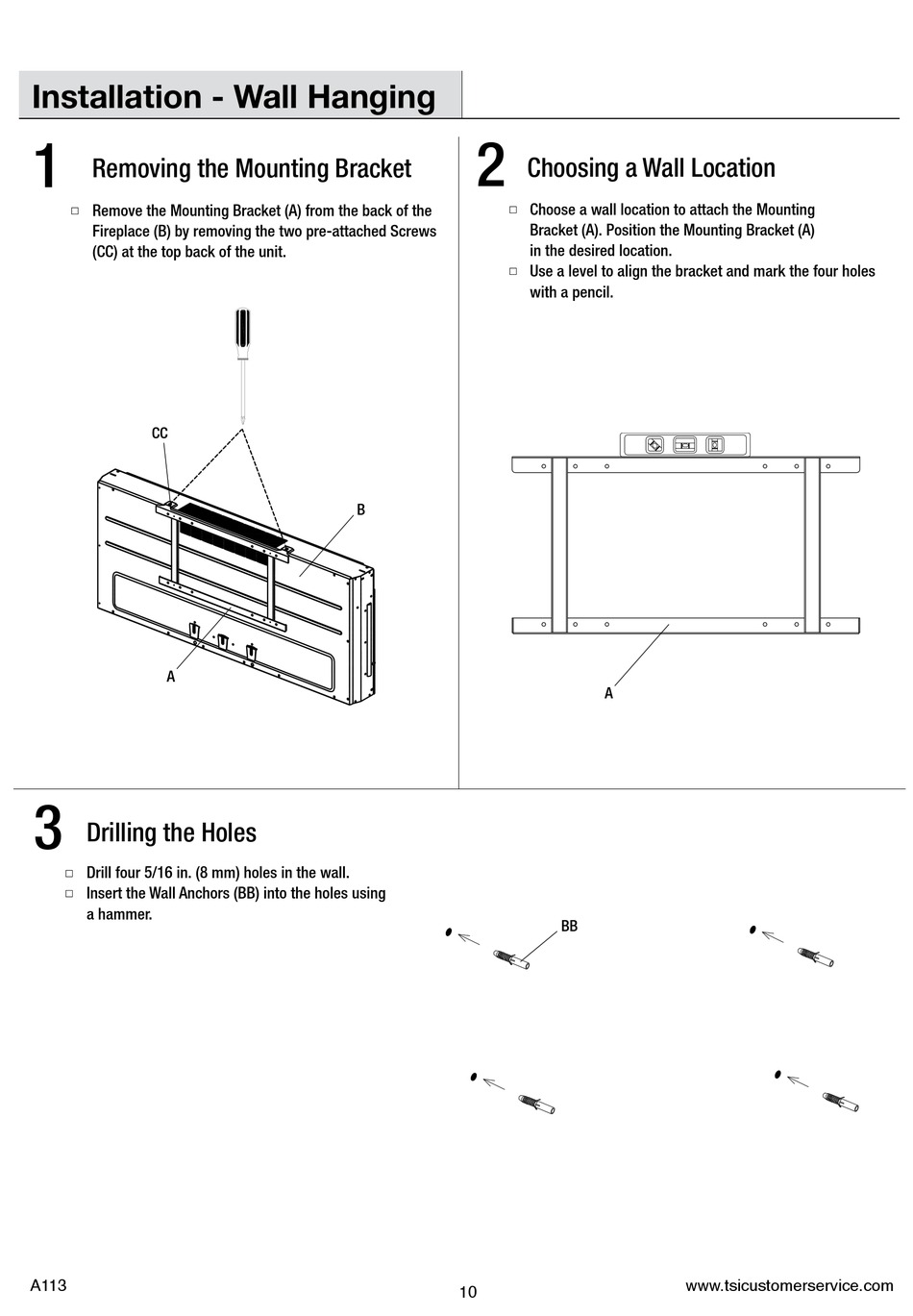

Installation - Wall Hanging Operation
1
Removing the Mounting Bracket
Remove the Mounting Bracket (A) from the back of the
Fireplace (B) by removing the two pre-attached Screws
(CC) at the top back of the unit.
CC
A
3
Drilling the Holes
Drill four 5/16 in. (8 mm) holes in the wall.
Insert the Wall Anchors (BB) into the holes using
a hammer.
A113
2
Choosing a Wall Location
B
10
Choose a wall location to attach the Mounting
Bracket (A). Position the Mounting Bracket (A)
in the desired location.
Use a level to align the bracket and mark the four holes
with a pencil.
A
BB
