Mp3 portable cd player with 45 sec. anti-skip protection

Advertisement

Quick Links

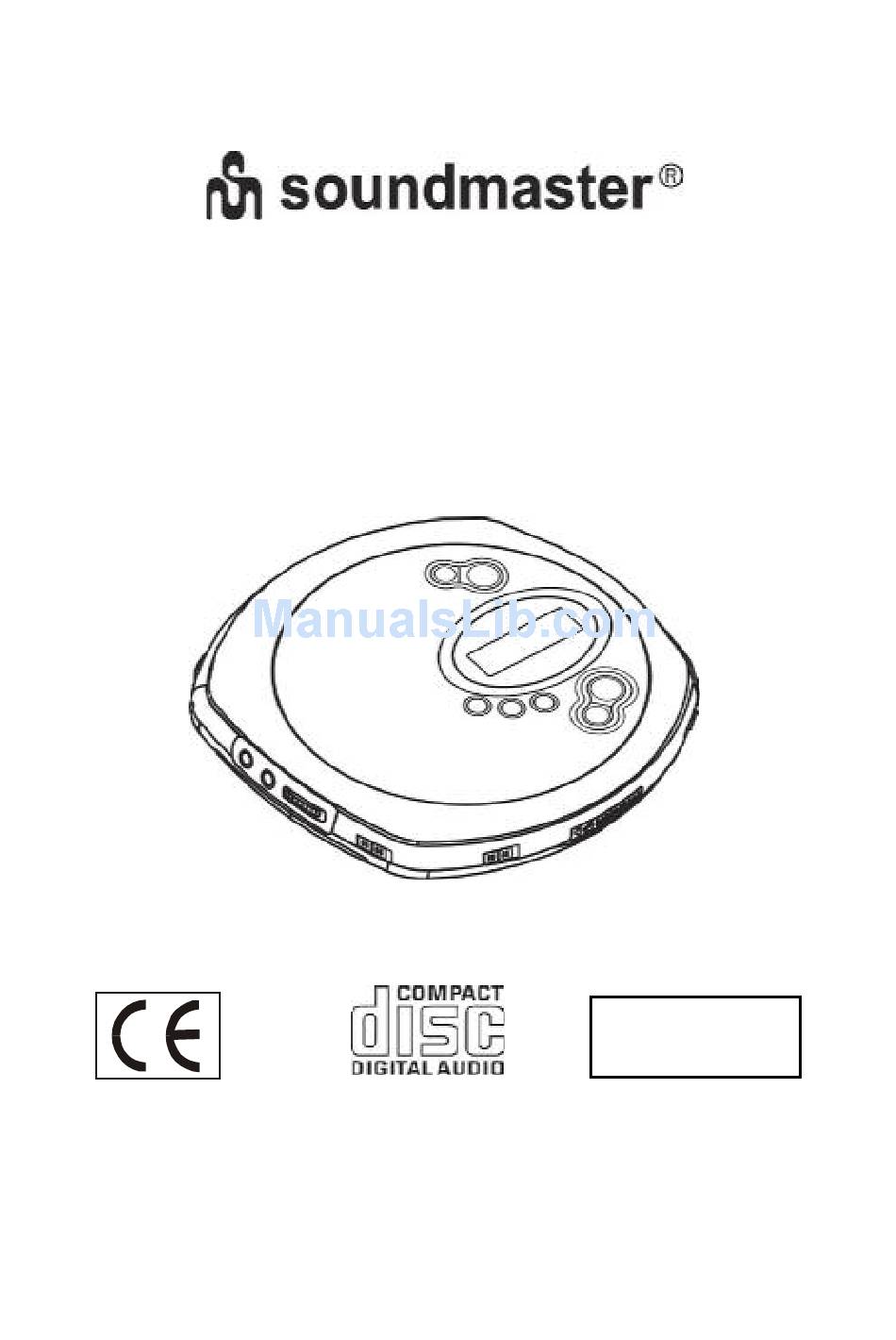

MP3 PORTABLE CD PLAYER WITH
45 SEC. ANTI-SKIP PROTECTION
CLASS 1 LASER
PRODUCT
CD-9135MP3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-9135MP3 and is the answer not in the manual?

Questions and answers

Summary of Contents for SOUNDMASTER CD-9135MP3

  • Page 1 MP3 PORTABLE CD PLAYER WITH 45 SEC. ANTI-SKIP PROTECTION CLASS 1 LASER PRODUCT CD-9135MP3...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS Hearing is a one of our most valuable senses, so please take care of yours when using this player. We strongly advise you to adhere to the following instructions so as to guard against possible injuries or loss of hearing: ESTABLISH A “SAFE”...
  • Page 3: Precautions For Use

    WARNING HAZARD WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. PLEASE NOTE THAT THIS PLAYER IS NOT COMPATIABLE TO WORK WITH PC DIRECTY, IT CANNOT DOWNLOAD MUSIC FROM PC TO THIS PLAYER DIRECTLY. Under the influence of electrostatic phenomenon, the product may malfunction and require user to power reset WARNINGS...
  • Page 4 IMPORTANT This product contains a low-power laser emitter. INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. AVOID DIRECT IXPOSURE TO LASER BEAM 1. This player does not have a separate Start/Stop switch. Once the batteries have been installed or the main adapter plugged in and a CD inserted, simply press the Play button to start playing the CD.
  • Page 5: Location Of Controls

    LOCATION OF CONTROLS 1. DC INPUT JACK Jack for 4.5V external power supply 2. LINE OUT JACK Connect to an external amplifier 3. DISPLAY WINDOW LCD function display 4. PHONE JACK 3.5mm headphone jack 5. PROGRAM Selects the program mode or enters the program. 6.
  • Page 6: Power Supply

    POWER SUPPLY Batteries (not supplied) With this set you can use: Alkaline batteries (type AA size) Inserting batteries 1. Open the battery compartment and insert 2 alkaline batteries. Follow the polarity as indicated in the battery compartment. Notes: Old and new or different types of battery combinations should not be used. Remove batteries if they are low or if the unit will not be used for a long time.
  • Page 7: Hold Switch

    HOLD SWITCH The HOLD switch disables the buttons from operating to prevent play from starting or stopping due to accidental operation. For normal use, leave the switch in the off position. EARPHONE CONTROL Connecting the Earphone (included) Connect the Earphone into the PHONE (GREEN) socket. Important safety notes when using earphones Hearing safety: Do not play your headset at a high volume.
  • Page 8 CD PLAY Playing a CD This CD player plays Audio CDs and MP3 CDs such as CDRs and CDRWs. Do not try to play a Cdi, CDV or computer CD or DVD. 1. Slide the OPEN slider towards the right and the lid opens. The "OPEN" indicator will appear in LCD.
  • Page 9 FUNCTION Selecting a track and searching Selecting a track during playback Briefly press SKIP+ / SEARCH or SKIP- / SEARCH button once or several times to skip to the current, previous or subsequent track start. Playback continues with the selected track. Selecting a track when playback is stopped 1.
  • Page 10 Selecting different playing options – MODE It is possible to play tracks in random order, to repeat a track or the CD and to play the first few seconds of each track. 1. Press MODE during playback once or repeatedly until the display shows either: REPEAT 1 : The current track is played repeatedly.
  • Page 11 Selecting and searching a track/album The following table shows the different functions available when playing Audio CD or MP3 CDs. Single file is displayed when playing an MP3 CD with only a root directory which contains no additional albums (folders). With albums means a MP3 CD with more than one album (folders), and is shown by directory and a number on the display, as AL 09, AL10, etc.
  • Page 12: Multi Session

    MP3-CD PLAYBACK (Continued) SINGEL SESSION The chart below is an example of a Windows Explorer display that will appear on your computer monitor for a single session MP3 CD Rom with directories/albums. Check the added notes to help you understand the MP3 CD unit display and the playback sequence of directories/albums and tracks on a single session MP3 CD.
  • Page 13: Troubleshooting

    TROUBLESHOOTING WARNING Under no circumstances should you try to repair the set yourself as this will void the warranty. If a fault occurs, check the following hints. If you are unable to solve a problem by following these hints, consult your dealer or service center.
  • Page 14 TROUBLESHOOTING Symptom Cause Possible Solution Playback does not Is the RESUME or PROGRAM Switch off the RESUME Start from first function activated? Function or clear the Track PROGRAM. No sound or poor Are connection plugs inserted Check all connections. Sound quality properly? Is the volume set too low? Adjust the volume.
  • Page 15: Maintenance

    MAINTENANCE Cleaning the unit Wipe the outside surface of the unit with a soft cloth moistened with water and mild soap. Handling CDs Your CD player has been especially designed for the reproduction of compact discs bearing the CD mark. No other discs should be loaded into the player. Always place the disc in tray with the label facing up.
