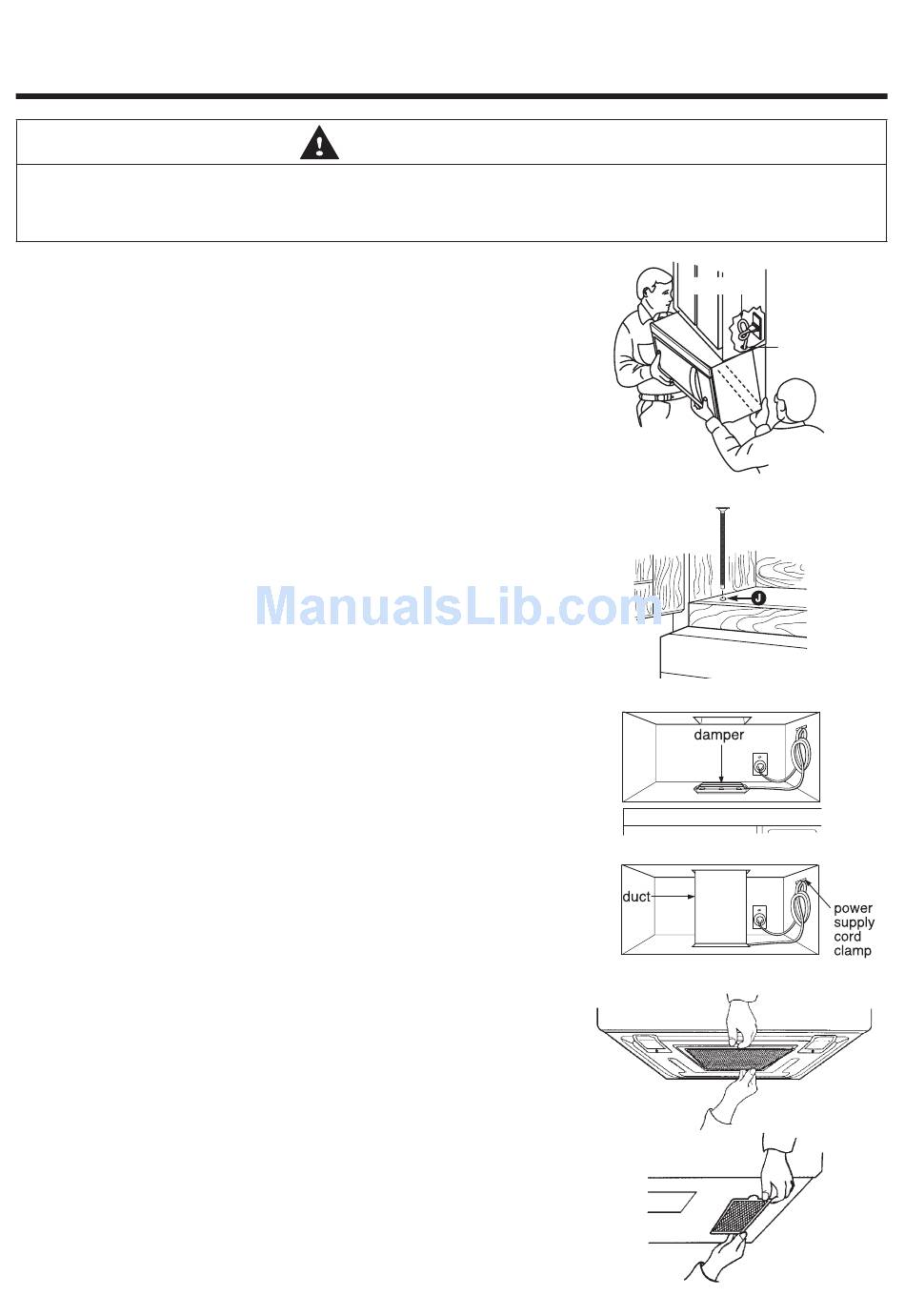

STEP 6: ATTACH THE OVEN TO THE wALL

To avoid risk of personal injury or property damage, use will need two people to
install this microwave oven.
1. Carefully lift microwave oven and hang it on support tabs
(See Figure 28) at the bottom of the mounting plate.Reaching
through upper cabinet, thread power supply cord through the
power supply cord hole in the bottom of the upper cabinet.
See Figure 30.
2. Rotate the microwave oven upward so the top of oven is
against the bottom of the upper cabinet or cabinet frame.
3. Then insert a bolt down through each hole in the upper cabinet
bottom. See Figure 31.
Tighten the bolts until the gap between the upper cabinet and
microwave oven is closed.
4. If wall vented or room vented installation is used, go to No. 7 on
this page.
5. Roof venting installation: See Figure 32.
Install ductwork through the vent opening in the upper cabinet.
Complete the venting system through the roof according to the
method needed. See "Prepare The Venting System" STEP 2.
Use caulking gun to seal the exterior roof opening around the
exhaust cap. See Figure 7 on page 7.
6. Use the power supply cord clamp to bundle the power supply
cord. Install the power supply cord clamp, using a screw as
shown in Figure 33, to the inside of the cabinet.
7. Grasp filter screen with one hand holding the ring and the other
hand holding the opposite end. Insert the end of the filter screen
without ring into the opening and slide towards the side of the
microwave oven. Insert ring end of filter screen into the opening
and slide entire screen towards the center of the microwave
until screen is securely in position. Repeat for other filter
screen. See Figure 34.
8. Plug in the power supply cord.
9. Read your Owner's Manual, then check the operation of your
microwave oven.
W A R N I N G
– 14 –
power cord
power cord hole
Figure 30
Figure 31
Figure 32
Figure 33
Figure 34
