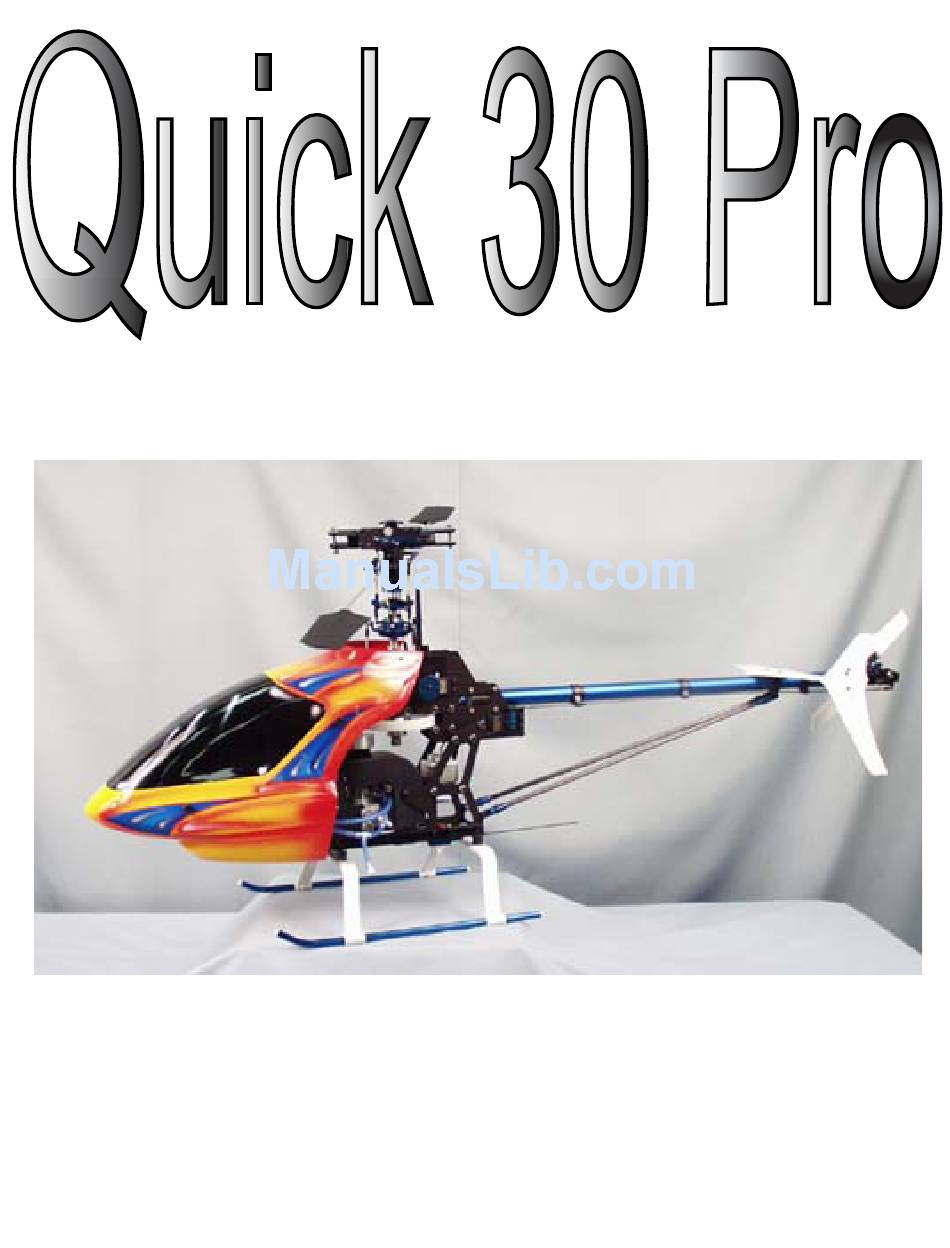

- Page 1 Assembly Instructions & Parts Listing Exclusively Distributed Hobbies & Helis International south 3rd. & north Coopersburg, 18036 Phone: (610)-282-4811 Fax: (610)-282-4816 Website: http://www.hhiheli.com http://www.QuickHeli.com E-mail: HHI@fast.net...
-
Page 2: Quick 30 Pre-Assembly Information
After four years of distributing numerous upgrades and crash parts for other helicopters, we decided to develop our own line of helicopters. That's when the notion of the Quick 30 Pro was conceived. As the development of the kit began, initial designs were approved, proto-types were made and flown - all to ensure that the design was flawless. -
Page 3: Table Of Contents
Manual Index Quick 30 Pre-Assembly Information......2 Manual Index.................3 Quick 30 Features...............4 Tools Needed.................5 Additional Parts Needed............6 Optional Parts and Accessories.........7 Radio Requirements...............8 Hardware Identification............9 Upper Frame Assembly............10 Elevator Control..............11 Install of Front Lowers Frames........12 Radio Bed & Gyro plate..........13 Tail Pulley &... -
Page 4: Quick 30 Features
4. Belt driven Tail: Belt Driven tail is not only a reliable way to drive a tail, but is also very smooth and is low maintenance feature. 5. High Quality Ball Bearings: Quick 30 Pro offers ball bearings on all moving parts unlike other machines. -
Page 5: Tools Needed
Tools Needed to Assemble the Quick 30 Pro Metric Ruler Hobby Knife Phillips Screw Driver EXL16030-1 $0.99 Needle Nose Pliers Scissors Nut Drivers 5.0mm WIH26550 $7.50 5.5mm WIH26555 $7.70 7.0mm. WIH26570 $7.90 Allen Drivers 1.5mm WIH26315 $4.10 2.0mm WIH26320 $3.80 2.5mm WIH26325 $3.80... -
Page 6: Additional Parts Needed
Motor Requirements (Not Included) Glow Plug OSMG2691 $6.25 Fuel Filter Any .30 class motor QUI9002 $4.99 OS30 OSMG1940 $119.99 Buliding Supplies (Essential) 30 Size Muffler HHI3004 $44.99 CA Glue Fuel Tubing GBG1 $6.29 PRA7092 $2.49 Spiral Wrap HHI2809 $2.49 HHI2810 $2.49 Locktite JB Weld... -
Page 7: Optional Parts And Accessories
Triangle Joint Tube Ends TET4311 $15.99 TET4302 $8.99 QUI9001 $3.99 Finishing Caps 20 Per Bag Base Load Antenna Quick 30 Pro Servo Arm Set HHIM1110* $1 1.99 HHI5302 $19.99 Call or E-mail $24.99 Available in Purple,Gold,Clear Anodizing Throttle Extension (OS) 30 Size Skid Stops Landing Gear Damp. -
Page 8: Radio Requirements
Radio Requirements Radios: Hobbies & Helis & it's distributors carry various lines of helicopter radios. recommend the use of at least a 7 or 8 channel radio. Other radios support the EMS Mixing but provide less of the essentail functions that make flying more enjoyable. In conclusion, any radio that supports EMS mixing will work fine. -
Page 9: Hardware Identification
Hardware Identification Note: Print this page and keep near by during the building process for the identification of all the hardware. The drawings on this page are scaled so that you may hold the part to the picture for sizing. 3mm Cap Head Bolts Set Screws 3 X 35mm... -
Page 10: Upper Frame Assembly
Read the entire manual first to get an idea of the machine's makeup, each step will contain a parts list, a text description of the assembly, and pictures to illustrate the construction. If there are any questions or concerns call or E-mail us and will be happy help. -
Page 11: Elevator Control
Step 2: Elevator Control Shaft Parts List The Inner Elevator Control Shaft is attached to the Elevator Control Shaft using Inner Elevator 3mm Set Screw being sure Control Arm (1) that the set set screw hits the flat on the shaft. Then insert the shaft through the bearing in the frame. -
Page 12: Install Of Front Lowers Frames
Step 2-3: Install of Front Lower Frames Parts List Attach the Lower Frames to the Frame Support using 3 X 8mm Cap Head Bolts. By Examining the Frame Lower Front Frames Piece, you will notice 3 X 8mm Cap Head Bolts (4) that there are 3 holes for attaching to the Frames to the Frame Support.Use... -
Page 13: Radio Bed & Gyro Plate
Step 3: Install front Radio Bed & Gyro Plate Parts List Front Radio Bed (1) Rear Gyro Mount (1) 3 X 6mm Cap Head Bolts (10) 1. Install front Radio Tray and Rear Gyro Mount using 3 X 6mm Cap head bolts. -
Page 14: Tail Pulley & Main Gear
Step 5: Installation of Front Tail Pulley Parts List The Front Tail Pulley is installed over the reduced portion of the Counter Gear Shaft. Tighten the Set screw into the pulley be sure that it is secured to the flat on the shaft. Tail Pulley (1) The Counter Gear Shaft 3mm Set Screw (1) -
Page 15: Clutch Lining & Clutch Bell
Step 7: Installation of Clutch Lining Parts List Install the clutch lining into the clutch bell. Scuff up the inside of the clutch bell with Xacto knife for better glue adhesion. Use two-part JB Weld (8265S). The clutch lining is pre-cut, but for future reference the length is 126mm. -
Page 16: Fan Cover, Motor Mount, & Fan Hub
Step 9: Installation of Fan Cover Parts List Install the fan cover into the frames using 4 provided self tapping screws (the fan cover may need adjustment later for maximum cooling). The mounting holes for the fan cover are the slots in the frames. Once you have your fan shroud in its final Fan Shroud (1) placement use some thick CA to... -
Page 17: Clutch, Motor, & Frame Rails
Step 12: Installation of Clutch Parts List The final step before engine installation is to attach the clutch to the fan hub. You may check for run-out by dial-indicating the bearing surface between the one-way bearing and the clutch. Use the 3 X8 mm Cap Head Clutch (1) Bolts to attach the clutch to the fan 3 X 8mm Cap Head Bolts (2) -
Page 18: Servo Installation
Step 15: Installation of Servos Parts List 2.6 X 12mm Cap Head Bolts (20) 2.6mm Lock Nuts (20) Ser vo Fixing Plates (20) Lower Swashplate Servo We recommend the use of high-quality digital servos, however it is not required. The CCPM/EMS design enables the servos to share the load, so you can use entry-level servos. -
Page 19: Fuel Tank & Landing Gear
Step 16: Installation of Fuel Tank Parts List Building the tank consists of the following: Cut a piece of fuel tubing approximately 2.5 inches in length. Make sure that when the tank is completed, the clunk stays in the middle of the tank. Line two is the vent line. Bend the tubing so that it is as close to the top of tank as possible without blocking the line. -
Page 20: Tail Case
Step 18: Building Tail Case Parts List 3 X 3mm Set Screws (2) 3 X 6mm Cap Head Bolts (6) 2 X 7mm Phillips Head Screw (2) 3 X 25mm Cap Head Bolts (1) Tail Rotor Blades (2) Tail Drive Belt (1) 3mm Lock Nuts (1) 2.0mm Med Ball Links (2) The next step is to build and install the... -
Page 21: Tail Boom & Boom Supports
Step 19: Tail Boom Installation Parts List Installing the boom into the frames: Use the plastic boom holders and four 3 x 35mm cap head bolts with four 3mm Locknuts. With the belt straight in the boom, point the tail rotor assembly towards the sky. Slide the belt over front pulley and make the belt snug. -
Page 22: Tail Fins & Swashplate & Anti-Rotate Guide
Step 21: Tail Fin Installation Parts List Installing fin set: attach the Horizontal Fin to the Fin Mount by using 2- 3 X 8mm Cap Head Bolts. Attach the vertical fin to the mount using 3 X 6mm Cap Head Screws &... - Page 23 Step 23: Washout Assm. Parts List Install the Washout on the main shaft and finish by connecting the washout links to the swashplate. After the Washout is in place install the Washout Anti-rotation Guide over the Main Shaft with the pin placed into the slot on the washout unit.
- Page 24 Step 25: Linkage Rod Assembly & Installation Rod Sizes Parts List 2.3 X 15mm (2) 2.3 X 30mm (1) 2.3 X 35mm (3) 2.3 X 50mm (1) Small Ball Link Left (2) 2.3 X 75mm (1) Medium Ball Link Center (18) 2.3 X 80mm (1) Long Ball Links Right (4) 2.3 X 85mm (2)
- Page 25 Step 26: Upper Frames 26mm Cross-member Parts List Install the 2-26mm Cross-Members Into the 3 X 8mm Cap Head Bolts (4) Upper Frames with 3 X 8 mm Cap Head Bolts 26mm Cross-Member (2) Step 27: Radio Setup First, change your radio to 3 Point, 120 Degrees swashplate mixing.
- Page 26 Step 26: Canopy Mounting Parts List Mount the Stand-offs to the main frames using 3 X6 mm Cap Head Bolts. (The standoffs are cross-members with a flare at one end). After the Stand-offs are mounted to the frames, place the canopy in position with the upper opening surrounding the swash plate.
- Page 27 Additional Setup Information Servo Arm Length: The lengths of the three head servos should be identical. The effective lenght of the inner and outer elevator control arms is 20mm. So, try try to get the lengths as close to 20mm as possible. Orient the servo arms: With the collective stick is centered, ensure that the head servo arms are perpendicular to their control rods.
