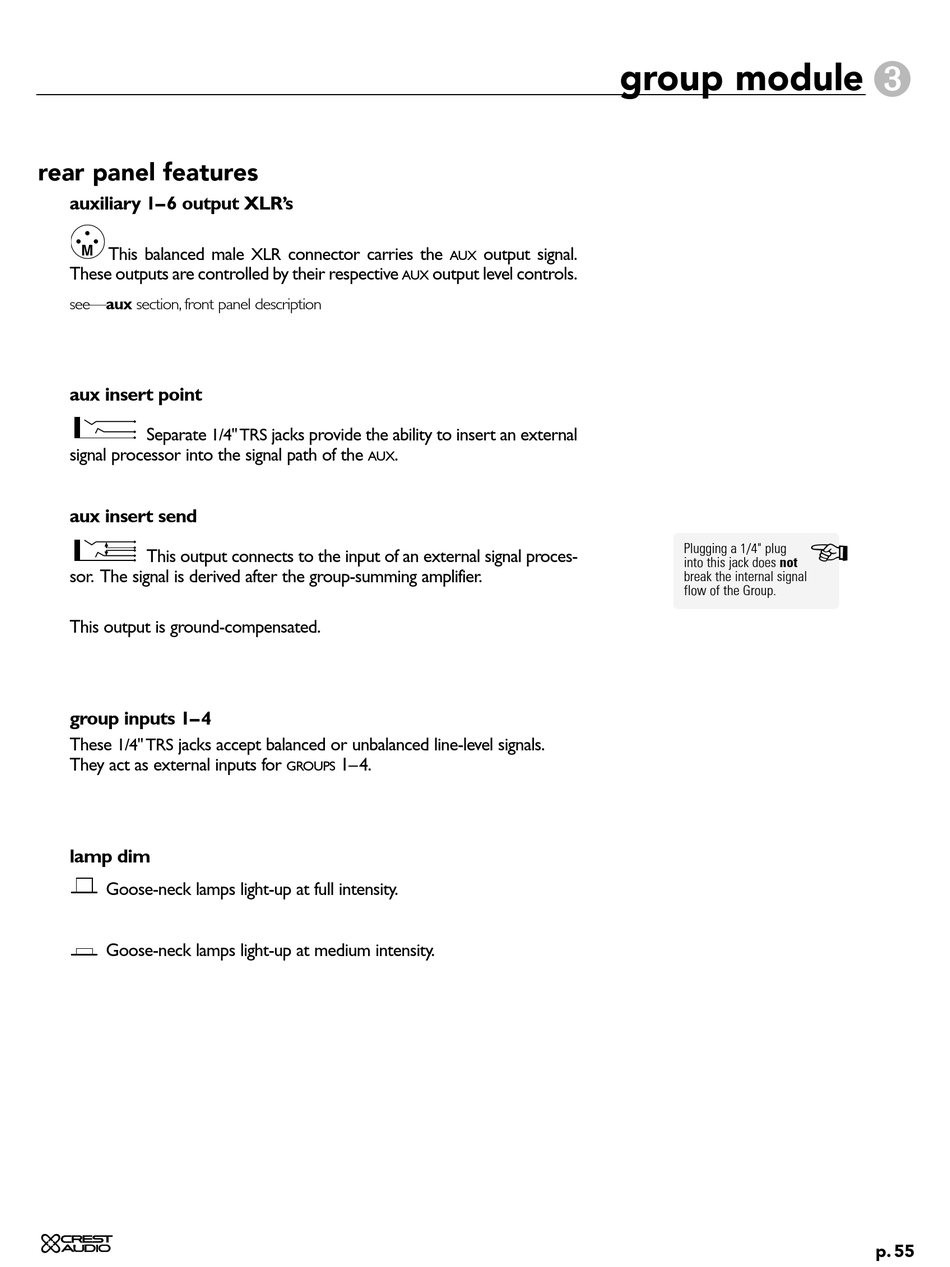

rear panel features
auxiliary 1–6 output XLR's
M
This balanced male XLR connector carries the
These outputs are controlled by their respective
see—aux section, front panel description

aux insert point

Separate 1/4" TRS jacks provide the ability to insert an external
signal processor into the signal path of the

aux insert send

This output connects to the input of an external signal proces-
sor. The signal is derived after the group-summing amplifier.
This output is ground-compensated.
group inputs 1–4
These 1/4" TRS jacks accept balanced or unbalanced line-level signals.
They act as external inputs for
lamp dim
Goose-neck lamps light-up at full intensity.
Goose-neck lamps light-up at medium intensity.
AUX
output level controls.
AUX
.
AUX
1–4.
GROUPS
group module
output signal.
+
Plugging a 1/4" plug
into this jack does not
break the internal signal
flow of the Group.
