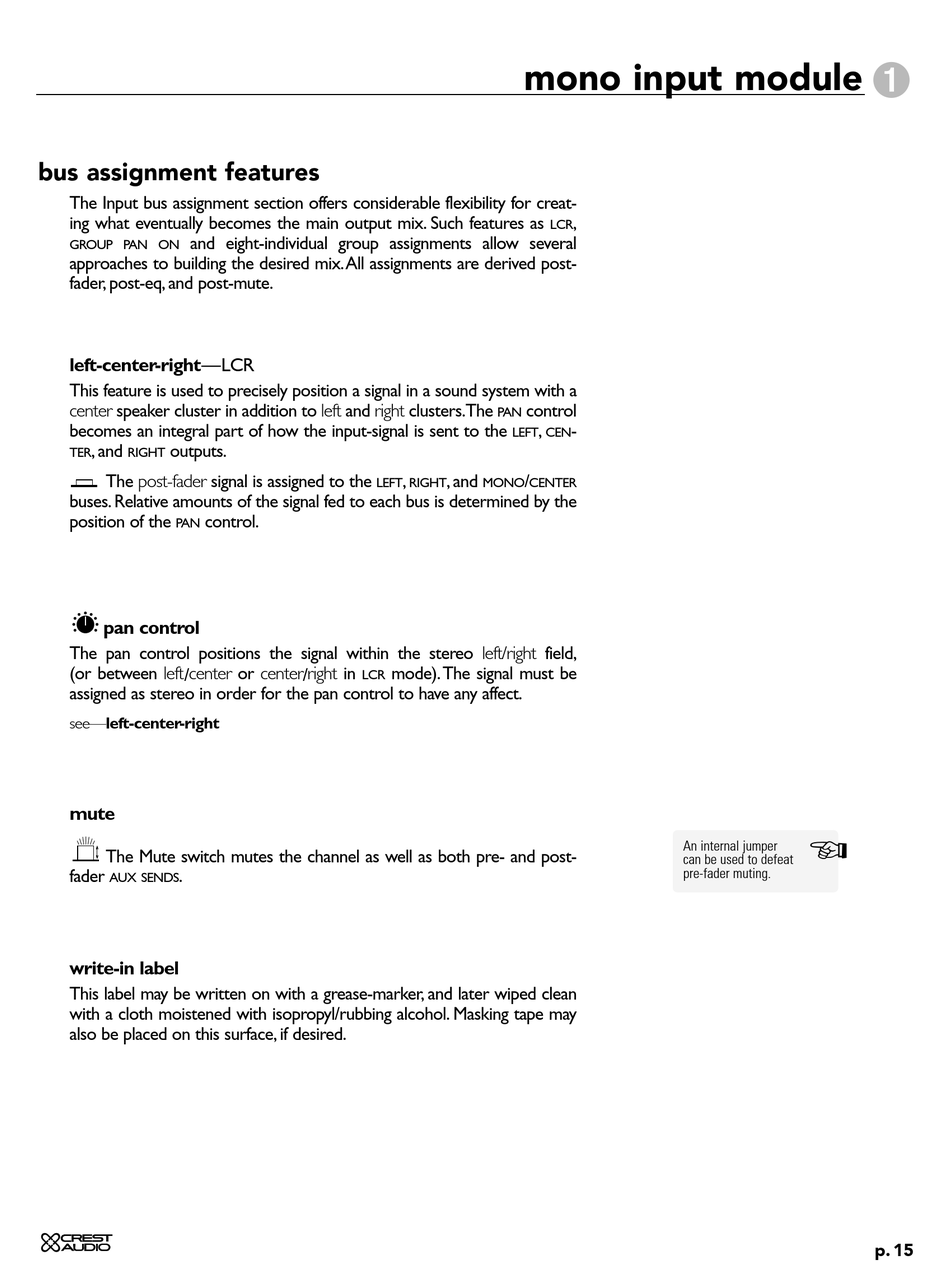

bus assignment features
The Input bus assignment section offers considerable flexibility for creat-
ing what eventually becomes the main output mix. Such features as
and eight-individual group assignments allow several
GROUP PAN ON
approaches to building the desired mix.All assignments are derived post-
fader, post-eq, and post-mute.
left-center-right—LCR
This feature is used to precisely position a signal in a sound system with a
center speaker cluster in addition to left and right clusters.The
becomes an integral part of how the input-signal is sent to the
, and
outputs.
TER
RIGHT
The post-fader signal is assigned to the
buses. Relative amounts of the signal fed to each bus is determined by the
position of the
control.
PAN
pan control
The pan control positions the signal within the stereo left/right field,
(or between left / center or center / right in
assigned as stereo in order for the pan control to have any affect.
see—left-center-right
mute
The Mute switch mutes the channel as well as both pre- and post-
fader
.
AUX SENDS
write-in label
This label may be written on with a grease-marker, and later wiped clean
with a cloth moistened with isopropyl/rubbing alcohol. Masking tape may
also be placed on this surface, if desired.
mono input module
control
PAN
,
LEFT
,
, and
/
LEFT
RIGHT
MONO
CENTER
mode).The signal must be
LCR
,
LCR
-
CEN
An internal jumper
can be used to defeat
pre-fader muting.
1
+
p. 15
