Monitor Output Features - Crest Audio V12 Owner's Manual

master modules
p. 44
—M1, M2

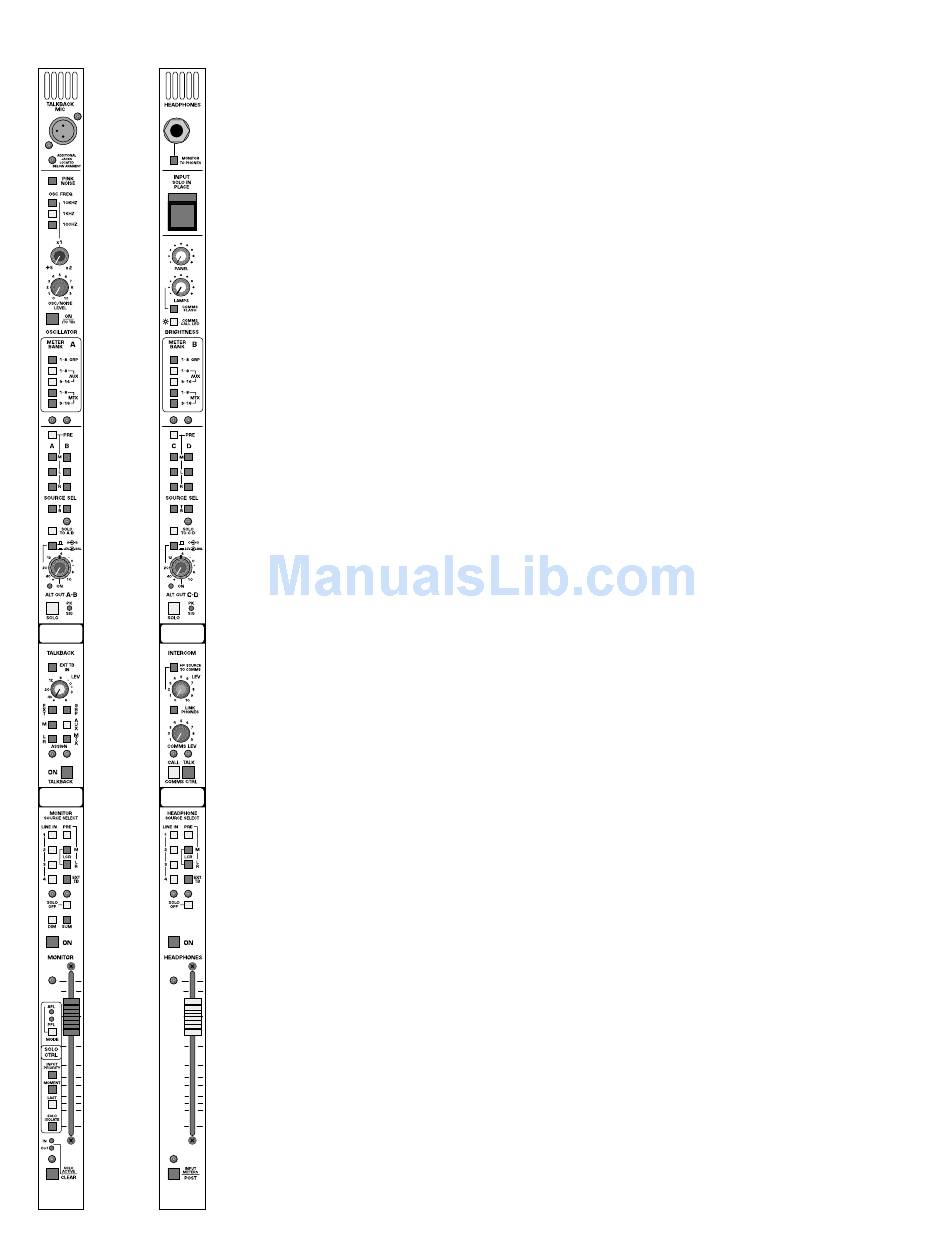

monitor output features

MONITOR OUTPUT CONNECTORS - XLR balanced line level outputs
on the rear panel plus 1/4" headphone connector under the arm rest area
with a hinged cover preventing confusing with the regular headphone sys-
tem.
line 1 input-switch
Monitor source of XLR Stereo Pair of balanced line level inputs.
line 2 input-switch
Monitor source of XLR Stereo Pair of Balanced line level inputs.
line 3 input-switch
Monitor source of 1/4" Balanced/Unbalanced line level inputs in mono or
stereo. If only a single connector is plugged in,signal is monitored in mono.
line 4 input-switch
Monitor source of 1/4" Balanced/Unbalanced line level inputs in mono or
stereo. If only a single connector is plugged in,signal is monitored in mono.
mono-output switch
Monitors mono output signal.
left/right output switch
Monitors left and right output signals.
LCR output monitoring
When both Left/Right and Mono switches are depressed,a LCR signal mix
can be monitored on a pair of monitor outputs.
external talkback-in
Allows direct monitoring of the external talkback input (Closed loop sys-
tem).
