Refco OCTA-WIRELESS 4686663 Instructions Manual

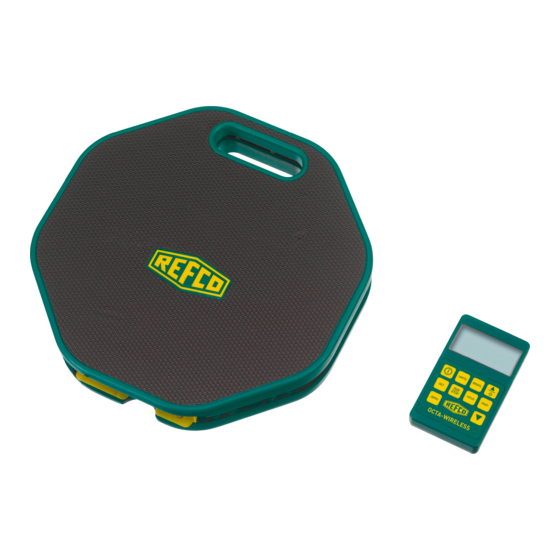

Electronic charging scale
Hide thumbs Also See for OCTA-WIRELESS 4686663:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
OCTA-WIRELESS
4686663
Instruction Manual
Electronic Charging scale
Bedienungsanleitung
Elektronische Füllwaage
Mode d'emploi
Appareil de charge électronique
Istruzioni per l'uso
Bilancia elettrica
Manual de instrucciones
Báscula eléctrica

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OCTA-WIRELESS 4686663 and is the answer not in the manual?

Questions and answers

Related Manuals for Refco OCTA-WIRELESS 4686663

Summary of Contents for Refco OCTA-WIRELESS 4686663

  • Page 1 OCTA-WIRELESS 4686663 Instruction Manual Electronic Charging scale Bedienungsanleitung Elektronische Füllwaage Mode d’emploi Appareil de charge électronique Istruzioni per l’uso Bilancia elettrica Manual de instrucciones Báscula eléctrica...
  • Page 2 OCTA-WIRELESS User’s Guide Introduction Thank you for your purchase of the Refco OCTA-WIRELESS Digital Charging Scale. The OCTA-WIRELESS is the most accurate and precise refrigerant meter available today with features that cannot be found anywhere else. It is ideal for HVAC and Refrigeration service, including Critical Charging of small refrigeration systems.

  • Page 3: Specifications

    OCTA-WIRELESS User’s Guide English The manufacturer is not responsible for any interference with radio or television receivers which results from illegal use of the device. Such alterations can lead to a loss in operating license. Specifications Capacity 100 kilograms (220 Pounds) Accuracy 0.5% of Reading +/- 1 Least Significant Digit Resolution...

  • Page 4: Parts Diagram

    English OCTA-WIRELESS User’s Guide Parts Diagram Refrigerant Can (optional) 10612-REF (optional) Thread to mount LCD Display 10612-REF Keypad Transmitter battery compartment Weighing Platform Transmitter LED Indicator On/Off Mounting clip Optical Port for - PLUS Speaker Grill Battery Cover Control Box Rear View...

  • Page 5: Lcd Display

    OCTA-WIRELESS User’s Guide English LCD Display Item Function Main Numeric Display Alternate Numeric Display Tank Capacity Percent Indication Units Indicators Sound Mute Indicator “Floating” Negative Indicator (Indicates weight removed from platform) Battery Level Indicator Fast Adjustment Indicator Set Mode Indicator Tank Capacity Mode Indicator Run Mode Indicator Hold Mode Indicator...
  • Page 6 English OCTA-WIRELESS User’s Guide Keypad Press for power-on, press/hold for power off. Press to cycle through displayed units. Press to select low, medium, or high display resolution. Press to “zero-out” current reading on display. Use to adjust various settings and programming values/Backlight. For faster adjustments.

  • Page 7: Quick Start

    OCTA-WIRELESS User’s Guide English Quick Start To operate the OCTA-WIRELESS as a basic weigh scale, perform the following steps: Setup 1. Unpack the scale as described in the “Unpacking the OCTA-WIRELESS” section below. 2. Install the batteries into the control box as described in the “Battery Installation” section below.

  • Page 8: Battery Installation And Replacement

    English OCTA-WIRELESS User’s Guide Stand-by Mode After shutting off the device, it will remain in stand-by mode for 25 minutes. By pushing button during this time the scale can be reactivated without separately turning on the transmitter. If no activity happens for 25 minutes, the transmitter shuts off automatically. Unpacking the OCTA-WIRELESS 1.
  • Page 9 OCTA-WIRELESS User’s Guide English Resolution The resolution (minimum incremental weight or volume) that can be displayed by the OCTA-WIRELESS can be adjusted to make the display easier to read. Unstable loads or high winds can cause the display to fluctuate erratically. By reducing the display resolution, external influences can be minimized.

  • Page 10: Over Range Indication

    English OCTA-WIRELESS User’s Guide Over Range Indication If the weight applied to the weighing platform exceeds the maximum capacity of the OCTA- WIRELESS (100 kg), a single “1” will be shown on the left side of the display. To prevent damage to the OCTA-WIRELESS, immediately remove the weight from the platform.
  • Page 11 OCTA-WIRELESS User’s Guide English 5. Press . The display will automatically change to zero and the RUN indicator will show to indicate that the program is running. 6. When the applied (or removed) weight exceeds the programmed amount, the alarm will sound and the DONE indicator will flash on the display.
  • Page 12 English OCTA-WIRELESS User’s Guide Tank Capacity Mode Training 1. While holding down, press . The SET TANK indicator will turn on, and OFF will show on the display. This indicates that the Tank Capacity Mode is currently off. 2. Turn the Tank Capacity Mode on by pressing .

  • Page 13: Battery Level Indicator

    OCTA-WIRELESS User’s Guide English Turning Tank Capacity Mode Off 1. While holding down, press . The SET TANK indicator will turn on, and ON will show on the display. This indicates that the Tank Capacity Mode is currently on. 2. Turn the Tank Capacity Mode off by pressing .
  • Page 14 English OCTA-WIRELESS User’s Guide sending the product to the manufacturer for service. A known calibration weight (in kilograms) is required to recalibrate the scale, and can be any value between 5 kg and 100 kg. 25 kg is recommend. Best accuracy is obtained by using the largest weight available (i.e. a 50 kg calibration weight will provide better calibration accuracy than a 5 kg calibration weight).
  • Page 15 OCTA-WIRELESS User’s Guide English Restoring Factory Calibration If you make a mistake recalibrating the OCTA-WIRELESS, you can always restore the factory calibration (and factory defaults) of the scale. To restore the factory settings perform the following steps: 1. Turn the power to the OCTA-WIRELESS off. 2.
  • Page 16 3. Carefully set the refrigerant cylinder on the weighing platform. 4. Attach the cylinder to the charging manifold via a utility hose. Open the cylinder valve and purge air from the hose. (ie. REFCO CL hoses) 5. Program the desired refrigerant charge weight as described in the Programming section.
  • Page 17 REF-METER-OCTA 4679462 Instruction Manual Electronic Charging scale Bedienungsanleitung Elektronische Füllwaage Mode d’emploi Appareil de charge électronique Istruzioni per l’uso Bilancia elettrica Manual de instrucciones Báscula eléctrica...
  • Page 18 English REF-METER-OCTA User’s Guide Introduction Thank you for your purchase of the REF-METER-OCTA Digital Charging Scale. The REF- METER-OCTA is the most accurate and precise refrigerant meter available today with features that cannot be found anywhere else. It is ideal for HVAC and Refrigeration service, including Critical Charging of small refrigeration systems.
  • Page 19 REF-METER-OCTA User’s Guide English Parts Diagram Refrigerant Can (optional) LCD Display 10612-REF (optional) Keypad Thread to mount 10612-REF Weighing Platform Storage Dock Button for Cable auto reel Mounting Clip Optical Port for REF- METER- Speaker OCTA-PLUS Grill Battery Cover Control Box Rear View...
  • Page 20 English REF-METER-OCTA User’s Guide LCD Display Item Function Main Numeric Display Alternate Numeric Display Tank Capacity Percent Indication Units Indicators Sound Mute Indicator “Floating” Negative Indicator (Indicates weight removed from platform) Battery Level Indicator Fast Adjustment Indicator Set Mode Indicator Tank Capacity Mode Indicator Run Mode Indicator Hold Mode Indicator...
  • Page 21 REF-METER-OCTA User’s Guide English Keypad Press for power-on, press/hold for power off. Press to cycle through displayed units. Press to select low, medium, or high display resolution. Press to “zero-out” current reading on display. Use to adjust various settings and programming values/Backlight. For faster adjustments.
  • Page 22 English REF-METER-OCTA User’s Guide Quick Start To operate the REF-METER-OCTA as a basic weigh scale, perform the following steps: Setup 1. Unpack the scale as described in the “Unpacking the REF-METER-OCTA” section below. 2. Install the batteries into the control box as described in the “Battery Installation” section below.
  • Page 23 REF-METER-OCTA User’s Guide English Unpacking the REF-METER-OCTA 1. Remove the REF-METER-OCTA from the carry bag. 2. Push the signed part of the control box to remove it from the storage dock. The storage dock is placed on the low side of the weighing platform. 3.
  • Page 24 English REF-METER-OCTA User’s Guide Resolution The resolution (minimum incremental weight or volume) that can be displayed by the REF- METER-OCTA can be adjusted to make the display easier to read. Unstable loads or high winds can cause the display to fluctuate erratically. By reducing the display resolution, external influences can be minimized.
  • Page 25 REF-METER-OCTA User’s Guide English Over Range Indication If the weight applied to the weighing platform exceeds the maximum capacity of the REF- METER-OCTA (100 kg), a single “1” will be shown on the left side of the display. To prevent damage to the REF-METER-OCTA, immediately remove the weight from the platform.
  • Page 26 English REF-METER-OCTA User’s Guide 5. Press . The display will automatically change to zero and the RUN indicator will show to indicate that the program is running. 6. When the applied (or removed) weight exceeds the programmed amount, the alarm will sound and the DONE indicator will flash on the display.
  • Page 27 REF-METER-OCTA User’s Guide English Tank Capacity Mode Training 1. While holding down, press . The SET TANK indicator will turn on, and OFF will show on the display. This indicates that the Tank Capacity Mode is currently off. 2. Turn the Tank Capacity Mode on by pressing .
  • Page 28 English REF-METER-OCTA User’s Guide Perform the following steps to turn the Tank Capacity Mode Off: Turning Tank Capacity Mode Off 1. While holding down, press . The SET TANK indicator will turn on, and ON will show on the display. This indicates that the Tank Capacity Mode is currently on. 2.
  • Page 29 REF-METER-OCTA User’s Guide English Calibration The REF-METER-OCTA is calibrated at the factory to provide high accuracy. While recalibration should seldom, if ever, be necessary, recalibration is performed easily without sending the product to the manufacturer for service. A known calibration weight (in kilograms) is required to recalibrate the scale, and can be any value between 5 kg and 100 kg.
  • Page 30 English REF-METER-OCTA User’s Guide Restoring Factory Calibration If you make a mistake recalibrating the REF-METER-OCTA, you can always restore the factory calibration (and factory defaults) of the scale. To restore the factory settings perform the following steps: 1. Turn the power to the REF-METER-OCTA off. 2.
  • Page 31 3. Carefully set the refrigerant cylinder on the weighing platform. 4. Attach the cylinder to the charging manifold via a utility hose. Open the cylinder valve and purge air from the hose (ie. REFCO CL hoses). 5. Program the desired refrigerant charge weight as described in the Programming section.
  • Page 32 3. Carefully set the refrigerant cylinder on the weighing platform. 4. Attach the cylinder to the charging manifold via a utility hose. Open the cylinder valve and purge air from the hose (ie. REFCO CL hoses). 5. Program the desired refrigerant charge weight as described in the Programming section.
  • Page 33 REFCO Manufacturing Ltd. Industriestrasse 11 6285 Hitzkirch - Switzerland Telefon +41 41 919 72 82 Telefax +41 41 919 72 83 info@refco.ch www.refco.ch...
