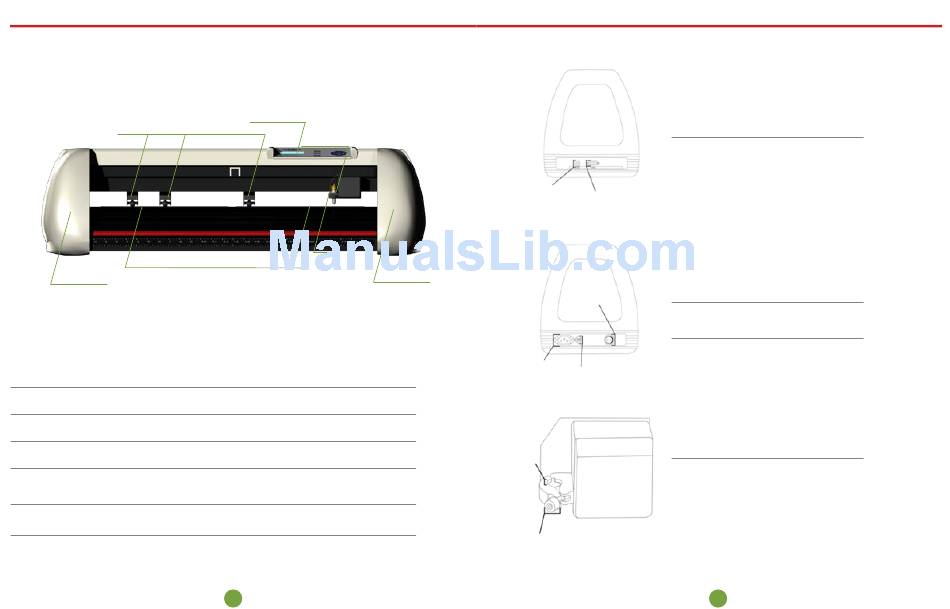

Get to know your cutter
Before you start cutting, you should familiarize yourself with the
cutter along with its basic parts and functions.
PINCH ROLLERS
FEED ROLLERS
LEFT SIDE COVER
Used to provide input directly to the cutter. Covered in detail in the
CONTROL PANEL
"Control Panel" section of this manual.
CARRIAGE ARM
Holds the blade (or pen) carriage.
PINCH ROLLERS
Holds the media tightly to the feed roller below.
FEED ROLLERS
Positions the cutting material during operation.
LASER
Used by the cutter to determine the location of cut contours
Contains the power cable port, power switch, and fuse cartridge for the
LEFT SIDE COVER
cutter.
RIGHT SIDE COVER
Contains the USB and serial cable ports for the cutter.
425.481.3555
CONTROL PANEL
CARRIAGE ARM
LASER
RIGHT SIDE COVER
8
10
www.uscutter.com
RIGHT SIDE VIEW
USB CABLE PORT
SERIAL (COM) CABLE PORT
LEFT SIDE VIEW
POWER SWITCH
POWER CABLE PORT
FUSE CARTRIDGE
CARRIAGE SLOT
LOCKING KNOB
425.481.3555
Get to know your cutter
Used to connect a USB cable
USB CABLE PORT
from the cutter to a computer.
SERIAL (COM) CABLE
Used to connect a serial cable
from the cutter to a computer.
PORT
Used to connect a power cable
POWER CABLE PORT
from the cutter to a wall outlet
or surge protector.
Main power switch for turning
POWER SWITCH
the power of the cutter on (1)
or off (0).
Allows access to the fuse inside
FUSE CARTRIDGE
of the cutter.
Holds the blade carriage in
CARRIAGE SLOT
place.
Allows access to the blade/pen
LOCKING KNOB
carriage slots for exchanging/
replacing carriages.
