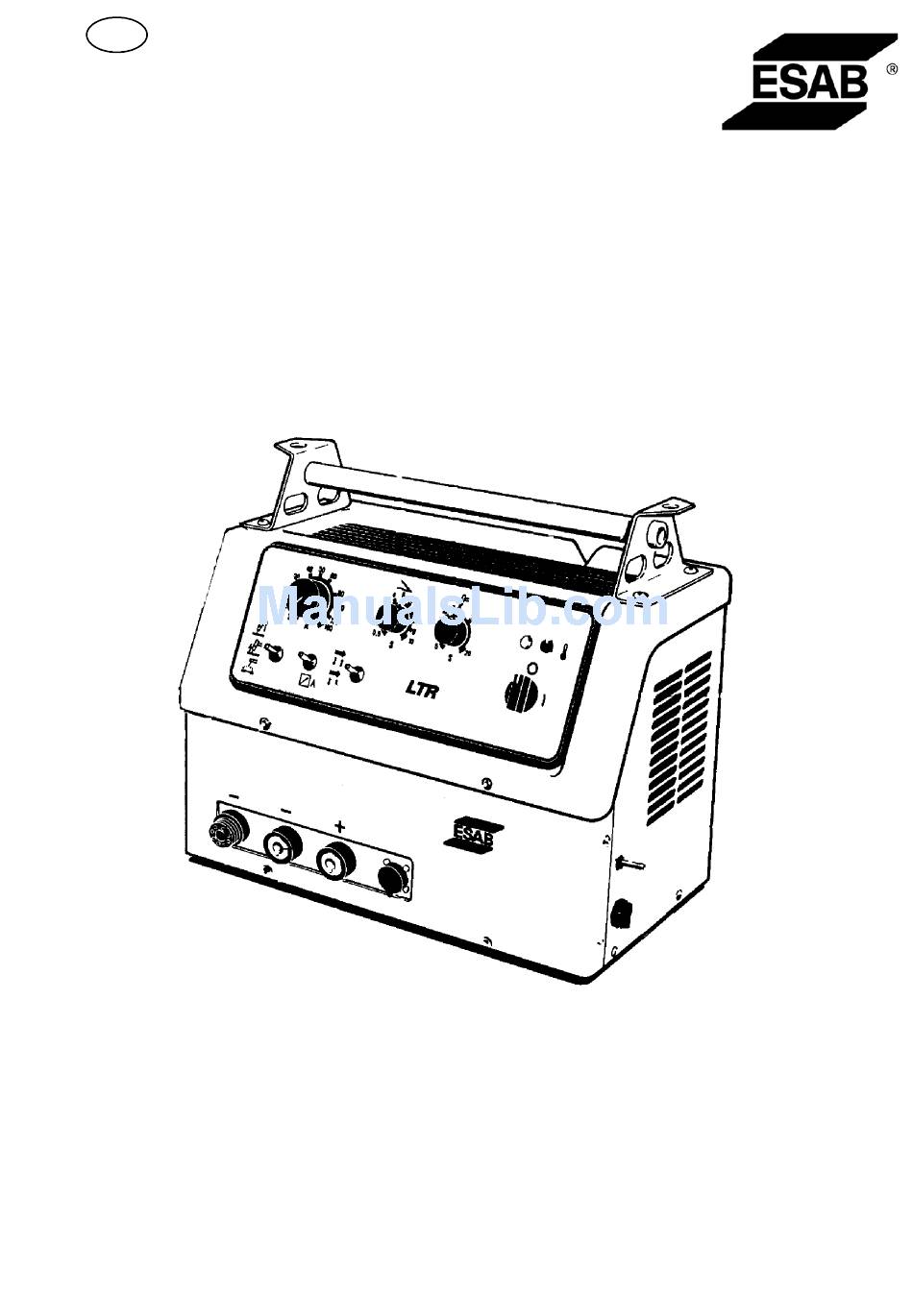

- Page 1 Power Tig 160 Power Tig 200 LTR 160, LTR 200 Instruction manual 0457 305 201 GB 041101 Valid for serial no. 011- -xxx- -xxxx...
-
Page 2: Table Of Contents
1 DIRECTIVE ............2 SAFETY . -
Page 3: Directive
DECLARATION OF CONFORMITY Esab Welding Equipment AB, S--695 81 Laxå, Sweden, gives its unreserved guaran- tee that welding power source LTR 160/200 from serial number 842 complies with standard EN 60974--1, in accordance with the requirements of directive (73/23/EEC) and addendum (93/68/EEC) and with standard EN 50199 in accordance with the re- quirements of directive (89/336/EEC) and addendum (93/68/EEC). -
Page 4: Introduction
The advanced electronic design permits rapid regulation and first class welding characteristics. LTR 160/200 is available in two versions, one with a central socket and one with an OKC socket for connecting a TIG torch. LTR 160/200 is supplied complete with 5 metre mains cable, 5 metre return cable, gas hose and hose clamps. -
Page 5: Technical Data
TECHNICAL DATA LTR 160 LTR 200 Permitted load at 20 % duty cycle, MMA 160 A/26 V 35 % duty cycle, TIG 160 A/16 V 200 A/18 V 35 % duty cycle, MMA 200 A/28 V 60 % duty cycle... -
Page 6: Installation
*) When welding with max 100 A a 10 A slow rupture fuse is sufficient. LTR 160/200 are equipped with mains voltage compensation, which means that a ¦10 % variation in the mains voltage only results in a ¦0,2 % variation in the welding current. -
Page 7: Operation
OPERATION General safety regulations for the handling of the equipment can be found on page 3. Read through before you start using the equipment! Mains power switch on/off Remote control connection Yellow indicating lamp Dust filter White indicating lamp Gas nipple (connection of gas cylinder) Slope--down time Connection for TIG torch Lift--Arc/HF--unit/MMA... -
Page 8: Liftarc
Mode = MMA. In this mode the machine is set up for welding with coated electrodes. The HF unit and Lift--Arc are disabled and the Hot--start unit is now activated to give a higher current during striking. Mode 2/4- -stroke 2 stroke: arc is struck when the torch trigger is depressed and extinguished when the trigger is released. -
Page 9: Maintenance
Repair and electrical work should be performed by an authorized ESAB serviceman. Use only ESAB original spare and wear parts. LTR 160, LTR 200 is designed and tested in accordance with the international and Eu- ropean standards IEC/EN 60974- -1 and EN 50199. It is the obligation of the service unit which has carried out the service or repair work to make sure that the product still conforms to the said standard. -
Page 10: Diagram
Diagram LTR 160 - - 10 - - Edition 041101 bt16e11a... - Page 11 LTR 200 - - 11 - - Edition 041101 bt16e11a...
-
Page 12: Ordering Number
LTR 160, LTR 200 Ordering number Ordering no. Denomination Type Notes 0456 840 800 Welding power source LTR 160 with central connection for TIG welding 0456 840 881 Welding power source LTR 160 with OKC connection for TIG welding 0456 840 882 Welding power source... -
Page 13: Spare Parts List
LTR 160, LTR 200 Spare parts list Item Ordering no. Denomination 0441 819 001 Screw 0468 275 001 Grill 0468 519 001 Filter Edition 041101 - - 13 - - bt19s11a... -
Page 14: Accessories
LTR 160, LTR 200 Accessories Trolley for 5 l gas cylinder ..0468 530 880 Trolley for 10- -50 l gas cylinder 0456 804 880 Protective handle for connections .. - Page 15 LTR 160, LTR 200 Top handle ..... . . 0468 305 880 bt07t004 For LTR 200 & LTR 255 Cooling unit OCF 2L ....
- Page 16 (state the length when ordering) ....0262 613 602 LTR 160 & LTR 200: Return cable, 25 mm (state the length when ordering) ..
- Page 17 - - 17 - -...
