GETTING STARTED

1
Check the contents of your TC7000.
The shipping case should include the
following items:
• TC7000 Thermal Imaging Camera
• USB Communication Wand
• USD Documentation Key
•
Certificate of Conformity
• Neck Strap
• Rechargeable Battery Pack
• Lens Cleaner
•
Wrist Strap
• Access key
• Battery Charging Station and Mains
Charging unit
2
Please ensure that you fully charge the
battery prior to use. The battery is charged
using the docking station supplied.
(See page 7.)
3
Before using TC7000 consider the objects
that you are going to image. Will you use
comparative thermography (simply looking
for temperature difference) or are you going
to attempt to make an accurate temperature
measurement?
RUGGED AUTHORITY
4
For comparative thermography, do not
amend the emissivity setting and leave this
constant every time you carry out imaging.
Temperature differences over time will then
be valid although the ambient temperature
may have changed as well as the electrical
or mechanical load of the object.
5
For accurate thermal measurement the
emissivity of the object will need to be
considered and the camera emissivity
setting corrected.
In addition background and reflected ambient
will need to be considered as well as thermal
and solar reflection and relative humidity.
!
Please Note: It is recommended
that users attend formal
thermography training to
understand the implication of
these parameters.

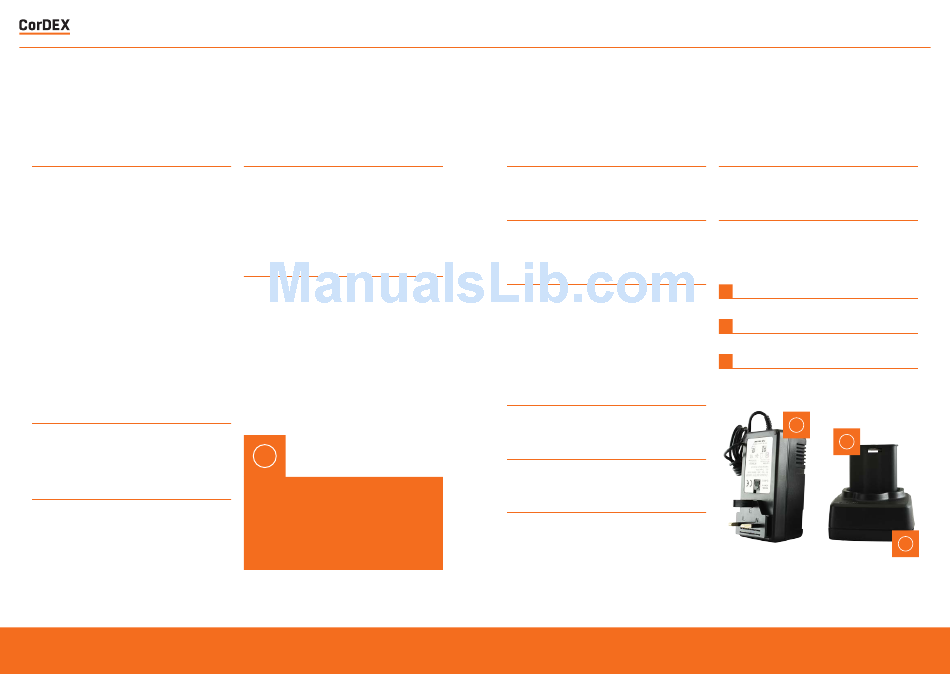

A GUIDE TO CHARGING
YOUR TC7000
1
Remove the battery from the battery
compartment of the camera.
2
Plug the mains charging unit to a mains circuit
and plug the jack from the charging unit into
the battery station.
3
Insert the battery into the battery charging
compartment on the battery charging station.
A green light will show that the unit has
power. The charging light on the charging unit
will flash amber whilst the charger assesses
the charge held on the battery. Following this
a solid amber light will be displayed showing
that the unit is charging.
4
When the amber light is no longer displayed,
the battery is fully charged.
5
Remove the battery from the charging
compartment.
6
Insert the battery pack into the camera paying
careful attention to the orientation of the pack.
T7000 – Intrinsically Safe Thermal Imaging Camera
7
Insert the battery pack into the camera paying
careful attention to the orientation of the pack.
8
Remove battery when the camera is no longer
in use. DO NOT REMOVE BATTERY WHILST IN
HAZARDOUS AREA.
1
Rechargeable/Removable Battery
2
Mains Charging Unit
3
Battery Charging Station
2
1
3
7
