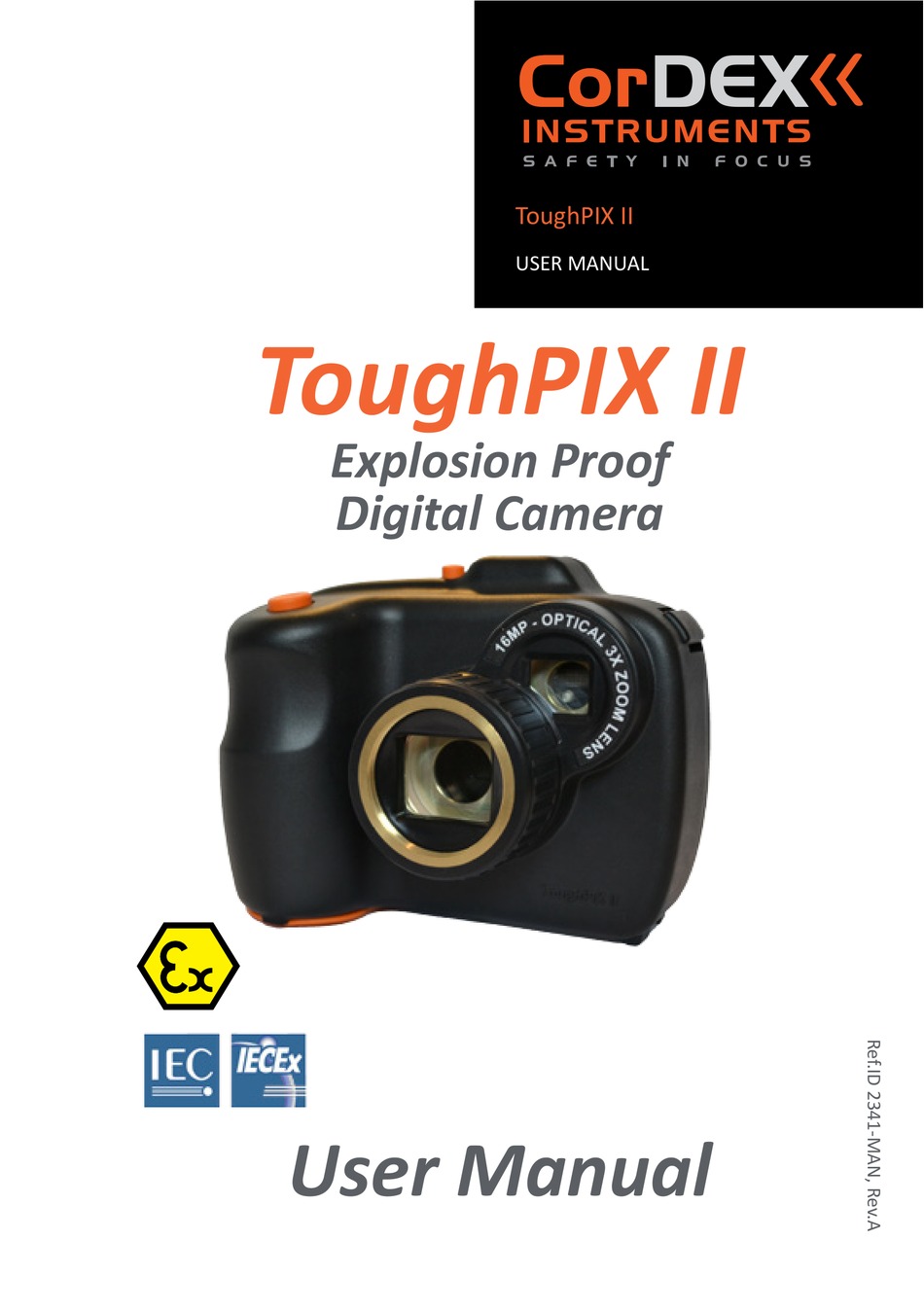

Page 1: Digital Camera
TC7000 ToughPIX II USER MANUAL USER MANUAL ToughPIX II Explosion Proof Digital Camera User Manual... - Page 2 Please ensure that the certification matches or exceeds the hazardous area characteristics that will be clearly displayed on site. ToughPIX II is certified ATEX/IECEx as follows: - Ex d IIB+H2 T6 Gb / II2G Gb T6 Whilst in a hazardous area, do not attempt to change batteries or download images,...
-
Page 3: Table Of Contents
ToughPIX II USER MANUAL Contents Getting To Know Your ToughPIX II Camera Charging/Docking Station Overview Package Contents Battery Charging Getting Started - Turning the Power On/Off - Mode Selection Taking Pictures P.9-10 - Optical Zoom - Digital Zoom - Flash... -
Page 4: Getting To Know Your Toughpix Ii
ToughPIX II USER MANUAL GETTING TO KNOW YOUR TOUGHPIX II ❷ ❶ ❸ ❹ ❶ ❸ Power button Flash light ❷ ❹ Shutter button Lens... - Page 5 ToughPIX II USER MANUAL GETTING TO KNOW YOUR TOUGHPIX II ❾ ❾ ❼ ❶ ❺ ❷ ❽ ❻ ❹ ❸ ❶ ❹ ❼ LCD Screen Mode Up/Delete ❷ ❺ ❽ Left/Scene Menu Button Right/Flash ❸ ❻ ❾ Playback Down / Self Time...
-
Page 6: Camera Charging/Docking Station
ToughPIX II USER MANUAL CAMERA CHARGING / DOCKING STATION ❶ ❹ ❸ ❺ ❷ ❶ ❷ Data communication USB Terminal interface ❸ ❹ Power Supply for Battery recharging charging unit compartment ❺ Battery release lever... -
Page 7: Overview

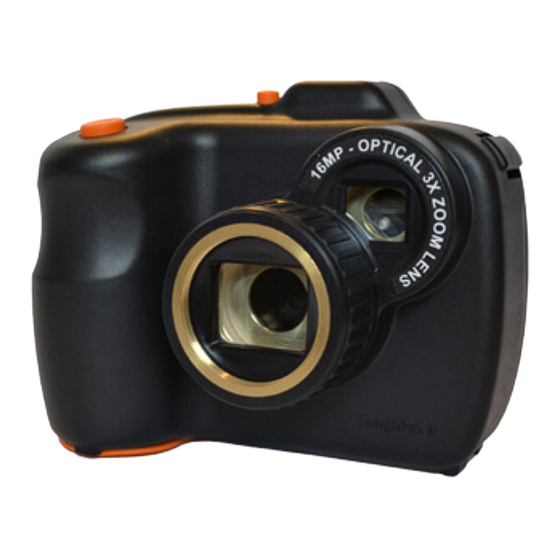

USER MANUAL OVERVIEW The SLR style ToughPIX II incorporates a 16 Megapixel sensor with 16GB memory and High Definition video capability. Close up and wide area photography is simple with crisp and clear images using the built-in macro feature, anti-shake technology, 3x optical and 4x digital zoom. -
Page 8: Battery Charging
Press the shutter button to take a photo. Mode Selection ToughPIX II has three operating modes, Camera Video and Playback Camera mode is the default from Power On and pressing the MODE button will toggle between Camera and Video mode. -
Page 9: Taking Pictures
ToughPIX II USER MANUAL TAKING PICTURES Optical Zoom You can magnify your subject up to 3 times using the optical zoom by pressing the T and W buttons to zoom in and out. Digital Zoom You can magnify your subject up to 4 times further using the digital zoom by pressing the T and W buttons to zoom in and out. -
Page 10: Delete
ToughPIX II USER MANUAL TAKING PICTURES CONTINUED Delete Press the up button to delete the last photo or video captured. A “Delete This Image” confirmation message will appear in the display, use the left/right buttons to choose yes to delete the image or no to cancel the delete Image Size To set the image size, press MENU and use the right/left button to select the MP icon. -
Page 11: Downloading Files
ToughPIX II USER MANUAL DOWNLOADING FILES Photo and video file can only be downloaded using the docking/charging station supplied. These files may then be transferred to any PC with a USB connection • Connect one end of the USB cable to an available USB port on your computer •... -
Page 12: Technical Information
ToughPIX II USER MANUAL TECHNICAL INFORMATION Certificate Information ATEX / IECEx Certificate No: TRAC13ATEX0046X / IECEx TRC 13.0016x ATEX / IECEx Certificate Types Ex d IIB+H2 T6 Gb / II2G Gb T6 Ambeint Temperature -4°F to 1112°F (-20°C to +600°C )
