Summary of Contents for Necchi FA16

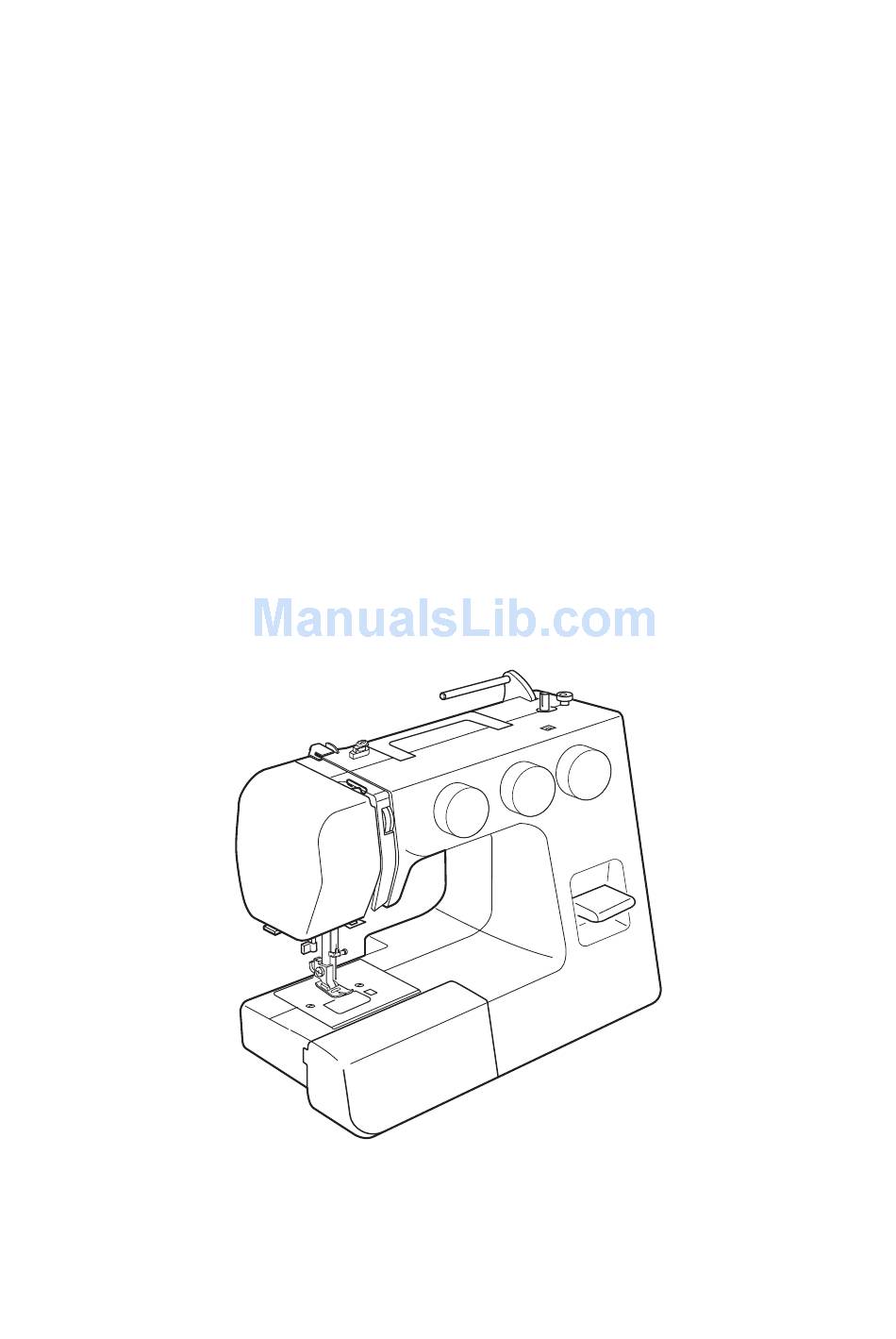

- Page 1 Instruction Manual...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic safety precautions should always be followed, including the following: This sewing machine is designed and manufactured for household use only. Read all instructions before using this sewing machine. DANGER — To reduce the risk of electric shock: 1. -
Page 3: Table Of Contents
TABLE OF COTENTS SECTION 1. KNOW YOUR MACIHNE SECTION 4. UTILITY STITCHES Names of Parts ...............2 Basic Zigzag ..............17 Setting the Spool Pin ............2 Overcasting ..............17 Standard Accessories.............3 Tricot Stitch (Multiple Zigzag Stitch) ......18 Extension Table ..............3 Knit Stitch ..............18 Straight Stretch Stitch ...........19 SECTION 2. -
Page 4: Section 1. Know Your Macihne
SECTION 1. KNOW YOUR MACIHNE Names of Parts Bobbin winder stopper Bobbin winder spindle Spool pin Bobbin winder thread guide Thread guide Thread take-up lever Face plate Thread cutter Needle threader Needle plate Extension table (Accessory storage) Hook cover plate Hook cover plate release button Thread tension dial Reverse stitch lever... -
Page 5: Standard Accessories
Standard Accessories q Bobbins Ñòàíäàðòíûå àêñåññóàðû w Needle set e Blind hemming foot G 1 Øïóëüêè r Zipper foot E 2 Íàáîð èãë t Sliding buttonhole foot J 3 Ëàïêà äëÿ ïîòàéíîãî øâà G y Spool holder (large) 4 Ëàïêà äëÿ ìîëíèè E u Spool holder (small) 5 Ëàïêà... -
Page 6: Section 2. Getting Ready To Sew
SECTION 2. GETTING READY TO SEW Connecting the Power Supply z Turn the power switch off. x Insert the machine plug into the machine socket. c Insert the power supply plug into the wall outlet. v Turn the power switch on. q Power switch w Machine plug e Machine socket... -
Page 7: Controlling The Sewing Speed
Controlling the Sewing Speed Êîíòðîëü ñêîðîñòè øèòüÿ Êîíòðîëü ñêîðîñòè øèòüÿ Foot control Íîæíàÿ ïåäàëü Sewing speed can be varied by the foot control. Íîæíàÿ ïåäàëü Ñêîðîñòü øèòüÿ ìîæíî èçìåíÿòü ïðè ïîìîùè The harder you depress the foot control, the faster the ïåäàëè. -
Page 8: Raising And Lowering The Presser Foot
Raising and Lowering the Presser Foot Ïîäúåì è îïóñêàíèå ïðèæèìíîé ëàïêè The presser foot lifter raises and lowers the presser foot. Ðû÷àã ïîäúåìà ïðèæèìíîé ëàïêè ïîäíèìàåò è You can raise the foot about 1/4˝ (0.6 cm) higher than the îïóñêàåò ïðèæèìíóþ ëàïêó. normal up position for easy removal of the presser foot, Âû... -
Page 9: Changing Needles
Ñìåíà èãë Changing Needles ÂÍÈÌÀÍÈÅ! CAUTION: Ïåðåä çàìåíîé èãë îòêëþ÷àéòå ïèòàíèå ìàøèíû. Always make sure to turn the power switch off and disconnect the machine from power supply before 1. Ïîâåðíèòå ìàõîâîå êîëåñî ïðîòèâ ÷àñîâîé changing the needle. ñòðåëêè è ïîäíèìèòå èãëó â âåðõíåå ïîëîæåíèå. Îïóñòèòå... -
Page 10: Winding The Bobbin
Óñòàíîâêà êàòóøêè íà êàòóøêîäåðæàòåëü Winding the Bobbin À Óñòàíîâèòå íà ñòåðæåíü êàòóøêó, ðàçìàòûâàÿ Setting the spool íèòêó ïî íàïðàâëåíèþ, ïîêàçàííîì íà ðèñóíêå. Place a spool of thread on the spool pin with the thread Ñâåðõó íàäåíüòå áîëüøîé äåðæàòåëü è ïëîòíî coming off the spool as illustrated. -
Page 11: Winding The Bobbin
Winding the Bobbin Íàìîòêà øïóëüêè 1. Âûòÿíèòå íèòü ñ êàòóøêè. Íàïðàâüòå íèòü çà íèòåíàïðàâèòåëü âåðõíåé íèòè. Ïðîòÿíèòå íèòü ÷åðåç íàïðàâèòåëü øïóëüíîé íèòè. 1 Íèòåíàïðàâèòåëü âåðõíåé íèòè 2 Íàïðàâèòåëü øïóëüíîé íèòè z Hold the thread with both hands and pass the thread under the thread guide. -
Page 12: Inserting The Bobbin
Inserting the Bobbin Óñòàíîâêà øïóëüêè z Place the bobbin in the bobbin holder with the thread 1. Ïîìåñòèòå øïóëüêó â äåðæàòåëü, îòìàòûâàÿ running off as illustrated. íèòü ïðîòèâ ÷àñîâîé ñòðåëêè. q Thread 1 Êîíåö íèòè 2. Ïðîïóñòèòå íèòü â ïåðâûé ïàç â ïåðåäíåé x Guide the thread into the front notch on the front side ÷àñòè... -
Page 13: Threading The Machine
Threading the Machine To set the needle thread: Raise the presser foot. Turn the hand wheel to raise the thread take-up lever to its highest position. z Draw the thread from the spool and pass it under the thread guide. q Thread guide x Draw the thread down along the right channel and pull it up around the bottom of the thread guide plate. -
Page 14: Needle Threader
Needle Threader z Raise the needle to its highest position. Pull down the needle threader knob as far as it will go. x Turn the knob in the direction of the arrow in the illustration, then insert hook into the needle eye. Lead the thread around guide and under hook. -
Page 15: Selecting The Stitch Pattern
ïåðåêëþ÷àòåëü âûáîðà ñòðî÷åê òàê, ÷òîáû áóêâà ñ èçîáðàæåíèåì íóæíîé îïåðàöèè ñîâïàëî ñ ÂÍÈÌÀÍÈÅ! èíäèêàöèîííîé ìåòêîé. Ïîäíèìèòå èãëó íàä òêàíüþ êîãäà âûáèðàåòå Selecting the Stitch Pattern ñòðî÷êó. 1 Ïåðåêëþ÷àòåëü âûáîðà ñòðî÷åê Raise the needle to its highest position. 2 Èíäèêàöèîííàÿ ìåòêà Pattern selector dial ÂÍÈÌÀÍÈÅ! Ïåðåêëþ÷àòåëü... -
Page 16: Balancing Needle Thread Tension
Balancing Needle Thread Tension Íàñòðîéêà íàòÿæåíèÿ âåðõíåé íèòè The thread tension should be adjusted depending on the sewing materials, layers of fabric and sewing method. Íàñòðîéêà íàòÿæåíèÿ âåðõíåé íèòè Äëÿ ïðÿìîé ñòðî÷êè: To adjust the thread tension, turn the tension dial. Íàòÿæåíèå... -
Page 17: Section 3. Basic Sewing
SECTION 3. BASIC SEWING Straight Stitch Sewing Machine setting q Stitch pattern: A or B w Presser foot: Zigzag foot A e Thread tension: 2 - 6 r Stitch length: 1.5 - 4 t Stitch width: 0 or 5 Starting to sew Raise the presser foot and place the fabric under the foot. -
Page 18: Use The Seam Guide
Use the Seam Guide The seam guides on the needle plate help you to measure seam width. The numbers indicate the distance between the center needle position and the guide line. q Seam guides Numbers on the needle 1 1/2 plate Distance in —... -
Page 19: Section 4. Utility Stitches
SECTION 4. UTILITY STITCHES Basic Zigzag Machine setting q Stitch pattern: w Presser foot: Zigzag foot A e Thread tension: 2 - 5 r Stitch length: 0.5 - 3 t Stitch width: 1 - 5 Simple zigzag stitching is widely used for overcasting, sewing on buttons etc. -
Page 20: Tricot Stitch (Multiple Zigzag Stitch)
Tricot Stitch (Multiple Zigzag Stitch) Machine setting q Stitch pattern: w Presser foot: Zigzag foot A e Thread tension: 1 - 4 r Stitch length: 0.5 - 1.5 t Stitch width: This stitch is used to finish the seam allowance on synthetics and other fabrics that tend to pucker. -
Page 21: Straight Stretch Stitch
Straight Stretch Stitch Machine setting q Stitch pattern: A or B w Presser foot: Zigzag foot A e Thread tension: 2 - 6 r Stitch length: S.S. t Stitch width: 5 or 0 The pattern is sewn with two stitches forward and one stitch backward, forming a seam that does not rip easily. -
Page 22: Button Sewing
Button Sewing Machine setting Ïðèøèâàíèå ïóãîâèö q Stitch pattern: w Presser foot: Zigzag foot A Óñòàíîâêà ìàøèíû e Thread tension: 3 - 7 1 Âûáîð ñòðî÷êè: Ñ r Stitch length: 2 Äëèíà ñòåæêà: ëþáàÿ t Stitch width: Adjust as necessary 3 Íàòÿæåíèå... -
Page 23: 4-Step Buttonhole
4-Step Buttonhole ûòÿãèâàíèå íèæíåé íèòè Ïå Ïåòëÿ çà 4 øàãà Machine setting Ïîäíèìèòå ïðèæèìíóþ ëàïêó, ñëåãêà Óñ Óñòàíîâêè ìàøèíû äåðæèâàéòå èãîëüíóþ íèòêó ëåâîé ðóêîé. q Stitch pattern: w Presser foot: Sliding buttonhole foot J 1 Âûáîð ñòðî÷êè: 2 Äëèíà ñòåæêàâ: 0,5- 1 Èãîëüíàÿ... -
Page 24: Corded Buttonhole
Corded Buttonhole Machine setting q Stitch pattern: w Presser foot: Sliding buttonhole foot J e Thread tension: 1 - 5 r Stitch length: 0.5 - 1 t Stitch width: 3 - 5 z With the buttonhole foot raised, hook the filler cord on the spur at the back of the foot. -
Page 25: Zipper Application
Óñòàíîâêà øïóëüêè Ïðèøèâàíèå ìîëíèè Zipper Application Óñòàíîâêà øïóëüêè 1. Ïîìåñòèòå øïóëüêó â äåðæàòåëü, îòìàòûâàÿ Óñòàíîâêà ìàøèíû Machine setting íèòü ïðîòèâ ÷àñîâîé ñòðåëêè. 1 Âûáîð ñòðî÷êè: À 1. Ïîìåñòèòå øïóëüêó â äåðæàòåëü, îòìàòûâàÿ q Stitch pattern: 2 Äëèíà ñòåæêà: 1,5 - 4 íèòü... - Page 26 To sew z Attach zipper foot with the right side pin. Fold back the upper layer seam allowance. Fold back the lower layer seam allowance to leave a 1/8˝ (0.4 cm) margin of fabric. q Lower layer w End of the opening e Zipper teeth r 1/8˝...
- Page 27 b Raise and release the foot, and re-attach it with the left side pin. Starting just below zipper bottom stop, sew across fabric to about 3/8˝ (1 cm) distance from the basting line. Turn fabric 90 degrees and sew a seam the entire length of the zipper tape.
-
Page 28: Blind Hemming
Blind Hemming Machine setting q Stitch pattern: E or H w Presser foot: Blind hemming foot G e Thread tension: 2 - 4 r Stitch length: 1 - 3 t Stitch width: z On heavy weight fabrics that ravel, the raw edge should be overcast first. -
Page 29: Section 5. Decorative Stitches
SECTION 5. DECORATIVE STITCHES Shell Tuck Machine setting q Stitch pattern: w Presser foot: Zigzag foot A e Thread tension: 6 - 8 r Stitch length: 2 - 3 t Stitch width: Place the folded edge along the slot of foot. The needle should fall off the edge of the fabric on the right forming a tuck. -
Page 30: Applique
Applique Machine setting q Stitch pattern: w Presser foot: Zigzag foot A e Thread tension: 1 - 4 r Stitch length: 0.5 - 1 t Stitch width: Baste (or fuse with iron-on fabric joiner) applique pieces on the fabric. Stitch around the applique making sure the needle falls along the outer edge of the applique. -
Page 31: Satin Stitches
Satin Stitches Machine setting q Stitch pattern: F or G w Presser foot: Zigzag foot A e Thread tension: 1 - 4 r Stitch length: 0.5 - 1 t Stitch width: 3 - 5 For a delicate appearance on fabric such as chiffon, use a single layer with a tear-away backing, if necessary. -
Page 32: Section 6. Care And Maintenance
SECTION 6. CARE AND MAINTENANCE WARNING: Turn the power switch off and unplug the machine before cleaning. NOTE: Do not dismantle the machine in any way other than what is explained in this section. Remove the setscrew by turning it counterclockwise with a screwdriver and remove the foot holder. -
Page 33: Replacing The Bobbin Holder
Replacing the Bobbin Holder Ñáîðêà øïóëåäåðæàòåëÿ z Insert the bobbin holder into the hook race. 1. Âñòàâüòå øïóëåäåðæàòåëü â ãíåçäî 2. Óñòàíîâèòå øïóëåäåðæàòåëü òàê, ÷òîáû x Lift up the bobbin holder and remove it. ãîëîâêà ïîäîøëà ê ñòîïîðó øïóëåäåðæàòåëÿ. q Knob w Stopper 1 Ãîëîâêà... -
Page 34: Troubleshooting
Troubleshooting Reference Problem Cause See page 11. The needle thread breaks. 1. The needle thread is not threaded properly. See page 14. 2. The needle thread tension is too tight. See page 7. 3. The needle is bent or blunt. See page 7. - Page 36 508-800-409 (EN)
