- Page 1 USER INSTRUCTIONS AND SAFETY Firmware Version: 1.0x...
- Page 2 Congratulations on your purchase of an N-Com product. N-Com M5 was made using the most advanced technologies and the best materials. Long-running tests and thorough system development have allowed the highest audio quality to be achieved. For additional information about M5 visit the website www.n-com.it...
-
Page 3: Table Of Contents
Contents WARNINGS AND SAFETY ....................4 1.1.Road safety ................................4 1.2.Switching on the system in safe environments ..................4 1.3.Interferences................................4 1.4.Appropriate use ............................... 5 1.5.Qualified personnel..............................5 1.6.Accessories and batteries ............................ 5 1.7. Disposal ..................................6 CONTENT OF THE PACKAGING ..................7 INSTALLATION........................8 3.1.Positioning the speakers and the microphone.................. -
Page 4: Warnings And Safety
Caution: The product cannot be used in official or non-official competitions, motordromes, circuits, racing tracks and the like. Caution: Installation of the N-Com M5 system results in a weight increase of approximately 100 g, which is added to the weight of the helmet and of the other accessories. -
Page 5: Appropriate Use
1.6. Accessories and batteries Only use the type of batteries, battery chargers and accessories approved by Nolan for the specific model. The use of a battery type different from the recommended one may lead to dangerous situations ... -
Page 6: Disposal
1.7. Disposal Refer to this user manual and to manuals related to other parts of the N-Com system in order to disassemble the system from the helmet. Once the system has been disassembled, dispose of it according to the following instructions: The presence of a crossed-out wheelie bin indicates that in the European Union the ... -

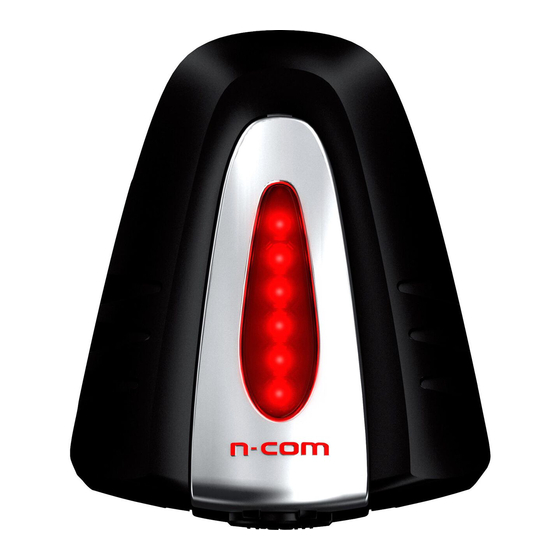

Page 7: Content Of The Packaging
CONTENT OF THE PACKAGING The N-Com M5 package contains: e-box M5 Bluetooth wireless keypad Wiring system Microphone for Flexible boom microphone Velcro kit full-face helmets E-box PC connection Fixing feet kit safety USB battery charger cable block... -
Page 8: Installation
INSTALLATION 3.1. Positioning the speakers and the microphone Remove the protective film from the Velcro of the speakers; Position the speakers near your ears, so that they stick perfectly to the helmet. N.B.: possible, position speakers underneath the comfort padding of the helmet. Fig. -
Page 9: Installing The E-Box
(Fig. 5). 3.2. Installing the e-box The M5 e-box must be positioned in the back of the helmet, using the adhesive feet supplied as standard equipment. Thoroughly clean the surface of the helmet where the feet will be applied;... - Page 10 Important: Should you wish to use the emergency brake light (see Chapter 10), you need to position the M5 e-box so that it is vertical or with an inclination of +/-30° with respect to the vertical axis while you are riding, so as to allow the triaxial accelerometer to properly measure the motorcycle deceleration.
- Page 11 Position the "safety block" on the wiring, then secure it in the e-box housing (Fig. 14-15-16). Fig. 14 Fig. 15 Fig. 16 Remove the protective film from the feet and apply the system to the helmet (Fig. 17-18); Important: If the position is less than perfect, remove the foot from the helmet immediately and try again.
-
Page 12: Positioning The Bluetooth Keypad
3.3. Positioning the Bluetooth keypad The Bluetooth wireless keypad can be positioned as desired, provided it is within a 5-meter radius from the e-box. The recommended position is the left side of the helmet, so that it can be easily used with the left hand. -
Page 13: Basic Functions
The system does not have to be turned on and off every time you use the motorcycle: thanks to the triaxial accelerometer, if the helmet does no move for more than 30 seconds, the M5 system goes into “deep sleep” mode. The system is completely turned on as soon as movement is detected. -
Page 14: Mobile Phone
Conference call function When a call comes in on a mobile phone connected via Bluetooth to M5, the Rider-Pillion Passenger intercom is temporarily turned off. However, if you wish to share the phone call with the other helmet, simply turn on the intercom manually during the phone call. -
Page 15: Managing Two Mobile Phones (Or Bluetooth Devices)
6.2. Managing two mobile phones (or Bluetooth devices) The M5 system can be hooked up to two phones (or Bluetooth) devices at the same time. The second phone (secondary device) can receive calls but not make them. To pair up the second Bluetooth phone (secondary device): Make sure the M5 is turned off;... -
Page 16: Satellite Navigator For Motorcycles
M5 system is compatible with the most common satellite navigators for motorcycles. For a list of compatible models and additional details, visit the website www.n-com.it To pair up a satellite navigator to the M5 system, follow the same procedure illustrated in Chapter 5.3. GPS Conference Call Function The Conference function allows you to keep the “Rider-Pillion Passenger”... -
Page 17: Emergency Stop Signal (Ess)
11. EMERGENCY STOP SIGNAL (ESS) The M5 system is equipped with a LED system to assist emergency braking. In case of sudden braking, the LEDs on the M5 flash for a few seconds. The braking level can be adjusted through a PC (N-Com Wizard) or Smartphone Android, iPhone and iPad thanks to the dedicated N-Com App. -
Page 18: Bike-To-Bike Intercom
Fig. 20 Fig. 21 The M5 system entails the use of a default “STANDARD” commands configuration, or the use of a “FRIENDS” configuration that can be turned on from the N-Com Wizard or dedicated App. The difference between the two configurations lies in the number of motorcycles that can be hooked up: the STANDARD configurations allows up to 3 different motorcycles to be hooked up to the M5 system, while the FRIENDS configurations allows up to a total of 6. -
Page 19: Bike-To-Bike Intercom Function
CHANNEL 1 is typically used for the Rider-Pillion Passenger connection, however it can also be used for the Bike-to-Bike intercom. The use of CHANNEL 1 is different from the other channels due to the following specific characteristics: By pressing key "n", the intercom connection is automatically activated. ... -
Page 20: Universal Intercom" Intercom
The N-Com M5 system can be connected via Bluetooth to intercom systems of other brands, thanks to the UNIVERSAL INTERCOM function. If you want to use the UNIVERSAL INTERCOM function in bike-to- bike mode, you need to open the antennas of the e-box M5, as shown in the figure on page 18. 14.1. -
Page 21: Setting Mode
15. SETTING MODE All Bluetooth pair ups and other adjustments are carried out in this mode. To put the system in Setting mode (system turned off), press the “BACK” key and keep it pressed for 4 seconds, until the red LED starts to flash quickly. ▲... -
Page 22: Battery And Recharge
To charge the system, hook it up to the battery charger or to a USB outlet powered with the USB-mini USB cable supplied as standard equipment. The charge will take place as follows: When you connect the M5 system to the battery... -
Page 23: Summary Table Of Controls - Standard Configuration
17. SUMMARY TABLE OF CONTROLS – STANDARD CONFIGURATION Button BACK Turning on Turning off 2 sec Increase Volume Decrease Volume Turning on/off the Emergency Stop Signal Answer phone call Voice call 2 sec Redial last number Dial Friend Number 2 sec Hang up/reject a phone... - Page 24 Button BACK Turning on the Radio Turning off the Radio Automatic search for new 2 sec station Change station 2 sec (pre-set stations) Pre-set station 4 sec Play music (Play) Pause Function (Pause) Next track (Forward) 2 sec Previous track (REW) 2 sec...
-
Page 25: Limited Warranty
18. LIMITED WARRANTY With this LIMITED WARRANTY CERTIFICATE, Nolangroup warrants this Product to be free from defects in material and workmanship at the time of its original purchase by the buyer. We invite you to: - Read the cautions pertaining to safety and proper use. - Read the warranty terms and conditions. -
Page 26: Procedure For The Forwarding Of Claims
THAT CAN BE DEROGATED AT THE PARTIES’ WILL; SPECIFICALLY, NOLANGROUP DOES NOT GRANT SPECIFIC WARRANTS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO CASE SHALL NOLAN BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL DAMAGES, TO THE FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY THE LAW. -
Page 27: Warranty Registration Form
19. WARRANTY REGISTRATION FORM Product name: Identification code Buyer’s Information Name Last name Address Phone e-mail Dealer’s stamp Date of purchase... - Page 28 M5 rel. 1 - 10/04/2015 09:59:00...
