Maxitrol MP2+ Installation Manual

Multiple prigram process temperature controller
Hide thumbs Also See for MP2+:

Advertisement

Quick Links

+
Multiple Program Process Temperature Controller
Installation Guide
���
www.maxitrol.com
© 2006 Maxitrol Company, All Rights Reserved

Advertisement

Table of Contents
loading

Summary of Contents for Maxitrol MP2+

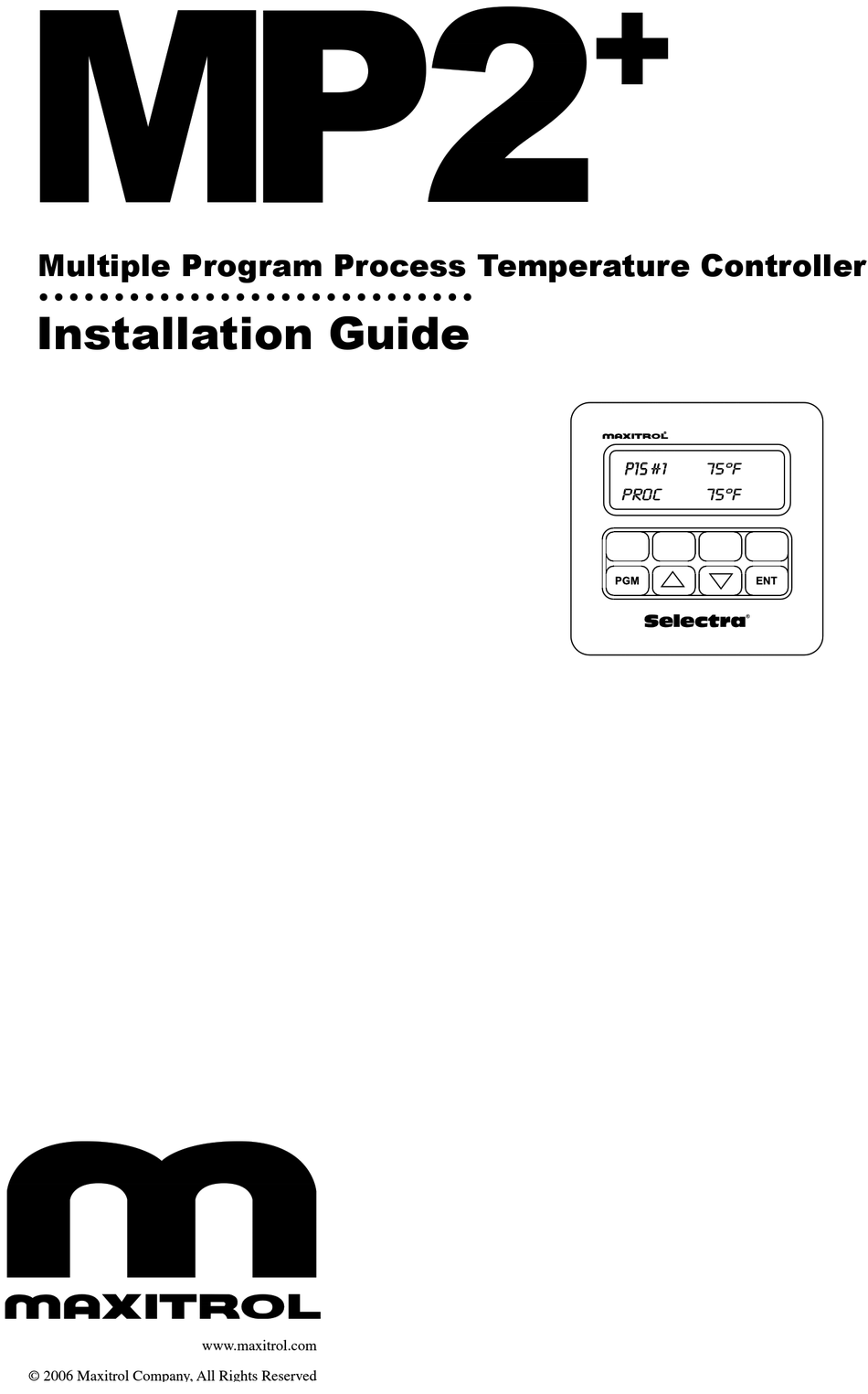

  • Page 1 Multiple Program Process Temperature Controller Installation Guide ��� www.maxitrol.com © 2006 Maxitrol Company, All Rights Reserved...
  • Page 2: Warnings

    This control must be electrically wired in accordance with lo- cal codes, or in the absence of local codes, with the Nation- al Electrical code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1 as applicable. © 2006 Maxitrol Company, All Rights Reserved...
  • Page 3: Table Of Contents

    Installation......................8 MP2+ Process Control System ............... 8 MP2+ Process Control System w/ TM02 Multifunctional Timer Control............. 9 Glossary ......................10 Please refer to the MP2+ User’s / Programming Guide for programming instructions. © 2006 Maxitrol Company, All Rights Reserved...
  • Page 4: Technical Data

    1,000 ohm RTD TS194Q use with mixing tube Valves M411, M511, M611, MR212 NOTE: Please read safety warning instructions fully for Maxitrol Modulator Valves [MI2040] prior to attempting to install, operate, and/or main- tain the MP2+ system. Components AM02+ Amplifier ...
  • Page 5: Dimensions

    The following voltage will be measured across the #9 terminals: Note Polarity Controller in the “READY” position 0 VDC Controller operating in any of the 8 processes making up a Program 24 VDC 2W max © 2006 Maxitrol Company, All Rights Reserved...
  • Page 6: Wiring Diagrams

    Wiring Diagrams Fig. A Wiring Diagram...
  • Page 7 Lockout Switch Settings, SW1 Level SW1 Dipswitch position Accessible Menus 1-closed, 2-closed None 1-open, 2-closed Process 1-closed, 2-open Process and Operation 1-open, 2-open Process, Operation and Diagnostic Level 0 Level 1 Level 2 Level 3 © 2006 Maxitrol Company, All Rights Reserved...
  • Page 8: Installation

    (see the MP2+ User’s / Programming Guide).  After programming, the MP2+ System will default to Process 1 of the current program. Set the Programming Lockout feature to the appropriate user access (see figure B, page 7). © 2006 Maxitrol Company, All Rights Reserved...
  • Page 9: Mp2+ Process Control System W/Tm02 Multifunctional Timer Control

    Start Process 1 of the program by pushing and releasing Button 1 or momentarily latching (make) a set of contacts wired to the TB1 terminal (i.e. typically accomplished by a momentary ON (normally open) switch). © 2006 Maxitrol Company, All Rights Reserved...
  • Page 10: Glossary

    A momentary switch closure moves the con- troller from the “Ready” position to the First Process. Programming Lockout Switch When set, this feature can limit user access to programming menus (see figure B, page 7). © 2006 Maxitrol Company, All Rights Reserved...
  • Page 11 Notes © 2006 Maxitrol Company, All Rights Reserved...
  • Page 12 © 2006 Maxitrol Company, All Rights Reserved 23555 Telegraph Road Southfield, MI 48033 248.356.1400 tel 248.356.0829 fax www.maxitrol.com...
