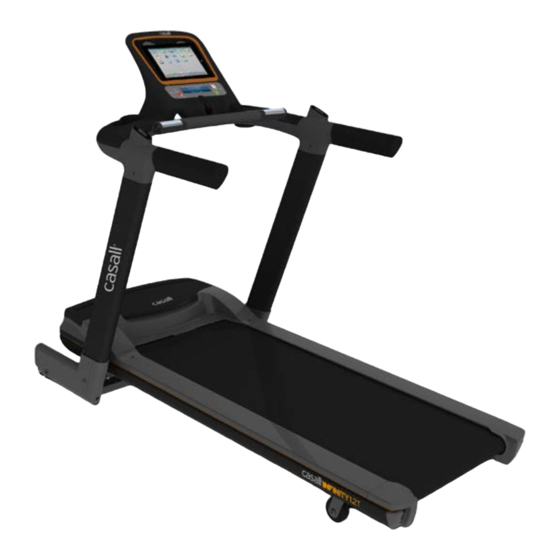

INFINITY 1.2T TREADMILL USER MANUAL

Advertisement

loading

Related Manuals for Casall INFINITY 1.2T

Summary of Contents for Casall INFINITY 1.2T

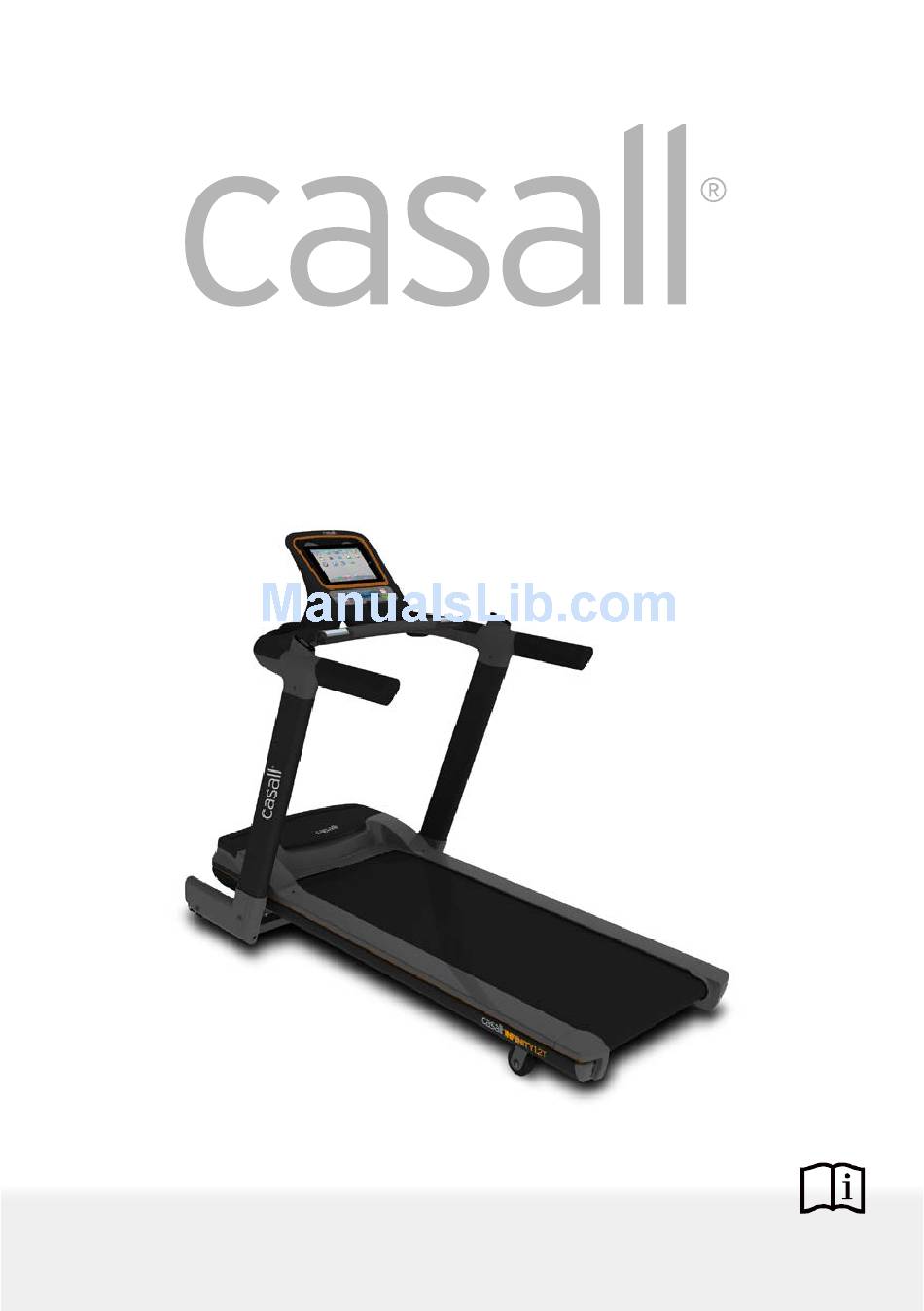

  • Page 1 INFINITY 1.2T TREADMILL USER MANUAL...
  • Page 3 Precautions Before assembling or using the treadmill, please read the following instructions carefully. They contain important information for use and maintenance of the equipment as well as for your personal safety. Keep these instructions in a safe place for maintenance purposes or for ordering spare parts. •...
  • Page 4 be affected. • Use-Environment: The product is made for home use only. Warranty and manufacturer's liability do not extend to any product or damage to the product caused by commercial use. • User-Health: Consult your physician before starting with any exercise programs to receive advice on the optimal training technique.
  • Page 5 to the securing bolts for saddle and handlebars. • Product-Maintenance: Incorrect repairs and structural modifications (e.g. removal or replacement of original parts) may endanger the safety of the user. • Product-Maintenance: Damaged components may endanger your safety or reduce the lifetime of the equipment.
  • Page 6 A.CONTENTS CHECKLIST B.HARDWARE COMPARISON CHART...

  • Page 7: Assembly Instruction

    Assembly instruction...
  • Page 15 Power on the computer 1.Connceting the power cord 2.Turn on the power switch...
  • Page 16 3. Inserting the safety key into the slot of console 4. Press the safety slightly ,and push it up to light the LCD...
  • Page 17 Adjustable cushion Adjusting the Feet If your treadmill is slightly unbalanced due to uneven floor surfaces, you can adjust the feet to prevent any wobbling. This is done by screwing the feet in or out until the treadmill sits evenly on the floor.
  • Page 18 Fold up/Unfold up...
  • Page 21 Transport...

  • Page 22: Correct Use

    Correct Use Correct biomechanical position: Please refer to left picture. Running straight on the treadmill is made easier by focusing on a fixed object in front of you in the room. Run as if you wanted to approach the object. Always keep a distance which you can reach the front hand bar.
  • Page 23 GB: DECK LUBRICATION: The walking belt has been pre-lubricated at the factory. However, it is recommended that the walking board be checked periodically for lubrication to ensure optimal treadmill performance. Please ensure the lubrication of the running belt is checked every 4-6 weeks after the initial 100 miles/kilometers of use. Every 30 days or 30 hours of operation lift the sides of the walking belt and feel the top surface of the walking board as far as you can reach.
  • Page 24 keep liquids away and keep it out of direct sunlight. Inspect and tighten all parts of the treadmill regularly. Replace any worn parts immediately. Belt Adjustment The running belt has been adjusted properly by the factory. However transportation, uneven flooring or other unpredicted reasons could cause the belt to shift off centre resulting in the belt rubbing with the plastic side rail or end caps and possibly causing damage.
  • Page 25 Wiring diagram...
  • Page 27 Exploded view 105 104...
  • Page 29 849 802...
  • Page 32 Part No. Part name Quantity Console housing-upper Console housing-lower Safety Key fix plate Safety Key base Safety Key Loud speaker Computer fixed frame Pad soft cushion iPad protection frame Box holder-upper-Left Box holder-upper-Right Box holder-lower-Left Box holder-lower-Right Front handlebar assembly sets Console tube assembly sets-Left Console tube assembly sets-Right Handle pluse cover sets...
  • Page 33 Part No. Part name Quantity Elevation support Frame Elevation support Frame cover-Upper Elevation support Frame cover-Lower 089 Spring 2.0X ∮14X4 Base Frame Rubber adjustment Cushion–Rear 36X10-M8X25 Elevation support Frame ring cover-Left Transport wheel Bracket Elevation support Frame ring cover-Right Transport wheel Foot lock plastic cover Base frame transport wheel cover –Front Base Frame Rubber Cushion...
  • Page 34 Part No. Part name Quantity Motor hood decorate strip-Left Motor hood decorate strip-Right Motor hood vent cover Motor Motor holder Driving belt Elevation motor gear sleeve assembly Power switch board Running belt Running deck Side rail Side rail decorate strip Side rail rear cap-Left Side rail rear cap-Right Side rail guider...
  • Page 35 Part No. Part name Quantity Handle pluse sensor wire-600mm 6PIN cable-220mm Motion control sensor wire-red 600mm Motion control sensor wire-black 600mm Grounding wire-300mm Elevation control board Electric Protector Electric Outlet Power Switch Computer assembly Main frame Rear Roller Tube+Shaft Front Roller Tube+Shaft Rear Caster Nylon25.6X25X41.6XR17 Ruber cushion with shaft...
  • Page 36 Part No. Part name Quantity Round head cross- screw M3X8 Button head inner hexagon M8X18 Button head inner hexagon M8X36 Locknut M10 ∮8X36 Bolt M8 C-clip M5X14 screw/washer Round head cross- screw M5X14 Inner hexagon M10X52 Button head inner hexagon M8X65 Button head inner hexagon screw M10X67 Washer ∮6X13X1.5...
  • Page 37 Part No. Part name Quantity Cross-screw M8X25 Inner hexagon M6X70 Inner hexagon M6X55 Washer ∮6X13X1.5 Button head inner hexagon M10X38X10 Shrapnel 21X13X0.7 M4X15 screw M4X12 screw Cross-screw M8X30 4.2X16 Screw Outer hexagon screw M5X15 Washer ∮10X20X1.5 Thin Nut M5 Cross-screw M4X12 Plastic insert Hardware Kit...
  • Page 38 Display (1)PROGRAM/ DISTANCE 9 PROGRAMMES,IWM, P1 to P8 Distance range from 0.0 to 99.9 KM (2)CALORIES/SPEED Calories range form 0 to 990 Minimum speed is 1.0KM/H, maximum speed 18.0KM/H (3)PULSE/INCLINE Display the current pulse Minimum incline is 0 level, maximum incline is 12 level (4)DOT MATRIX（SPEED PROFILE OR INCLINE PROFILE）...

  • Page 39: Buttons And Functions

    (4.4) AGE Age setting range from 10 years to 99 years , the default age display is 30 (5)TIME Display the workout time Buttons and Functions START Press to start exercise at an initial speed of 1.0 KM/H/ 0.6 mph STOP/ENTER Press to stop exercise during workout time Press to confirm program and preset function values during setting mode.

  • Page 40: Display Mode

    DISPLAY MODE Exercise data will be scan during exercise every 10 seconds Press the DISPLAY MODE button to switch the PROGRAM/DISTANCE， PULSE/INCLINE，SPEED/CALORIES INCLINE UP Press Incline up button to increase the incline level. ， the Max.incline is level 12 INCLINE DOWN Press Incline down button to decrease the incline level.
  • Page 41 1. After switching on the MOTION CONTROL wave your right hand approximately 6 cm above the motion sensor on the right handle bar to increase the speed. The sensor will sound one short BEEP per scan and speed up by 0.1 km/mph per BEEP. Holding your right hand approximately 6 cm above the right sensor results in the sensor repeatedly sounding consecutive BEEPs and increasing the speed quickly by 0.1 km/hr / mph per second.
  • Page 42 Wave both hands approximately 6 cm above both motion sensors at the same time. The sensor will sound two short BEEP sounds then slow the treadmill belt to a stop. Always switch off the motion control function by touching the MOTION CONTROL button on the console before turning off the power to the treadmill (the icon is no longer highlighted in the display).

  • Page 43: Power On Mode

    POWER ON MODE When the unit is switched on, “PRESS START TO QUICK START OR STOP/ENTER TO SELECT PROGRAM” will display on the LCD. Press START to begin training in QUICK START MODE or STOP/ENTER to go into PROGRAM MODE. UNIT CONVERSION MODE –...
  • Page 44 Program Selecting Procedure POWER ON status, user may then press the “STOP/ENTER” button on the computer key board ,then “IWM” will be shown and flashing on the computer LCD screen .Press the SPEED UP/DOWN button to select the one of program. Then computer LCD screen will show “IWM→P1→P2→P3→P4→P5→P6→P7→P8”(Scan ) Short introduction of the IWM is a customized exercise e program.
  • Page 45 overweight and one above 30 is considered obese. The ranges of BMI values are only as statistical guide when applied to adults. They are not a prediction of health. The Body mass index (BMI) is a heuristic proxy for human body fat based on an individual's weight and height.
  • Page 46 USER "AGE " After the GENDER has been confirmed the SPEED’s display will show AGE initial value “30” or the previous setting and begin flashing. Press the UP/DOWN button to adjust the user age information then, press STOP/ENTER to confirm. USER "HEIGHT "...
  • Page 47 Press the “MODE” button third, computer display screen figures will come back to scan status automatically To pause the program while exercising, press the “STOP” button. To quit the program, press the “STOP button” twice. At the end of the program when the target has been achieved, the computer will beep. P1- TARGET TIME PROGRAM Power on the computer, press the STOP/ENTER button, then the IWM will be flashing.
  • Page 48 P2: TARGET DISTANCE PROGRAM Power on the computer, press the STOP/ENTER button, then the IWM will be flashing. Press the SPEED UP/DOWN button to select the P2(Program 2) , then press the STOP/ENTER button again, computer will go to P2 procedure Weight setting When the P2 display on the computer display screen dot matrix area, users press the STOP/ENTER button, the figure”0.0”...
  • Page 49 Weight setting When the P3 display on the computer display screen dot matrix area, users press the STOP/ENTER button, the figure”0.0” and the dot will be flashing where point at WEIGHT. Press the SPEED “UP /DOWN“ button to input the weight and press the STOP/ENTER button to confirm. Calories setting After inputting weight, press the STOP/ENTER button to confirm.
  • Page 50 Duration Time setting After inputting weight, press the STOP/ENTER button to confirm After you have selected “P4- IENTERVAL Incline program” press the “STOP/ENTER” button. The “TIME ”display will show the time of “24:00” workout time, press the SPEED “UP /DOWN“ button to set up total workout time in iENTERvals of 4:00 (min.), then press STOP/ENTER to confirm the setting.
  • Page 51 “TIME ”display will show the time of “24:00”, press the SPEED “UP /DOWN“ button to set up total workout time in iENTERvals of 4:00 (min.), then press STOP/ENTER to confirm the setting. Press the “START” button to begin the exercise program. The program will count down the pre-set time, “DISTANCE and CALORIES” will count up from 0.
  • Page 52 Speed 4.2 4.2 6.1 6.1 4.2 4.2 6.1 4.2 6.1 6.1 4.2 4.2 6.1 6.1 section 2.6 3.8 3.8 2.6 2.6 3.8 3.8 2.6 2.6 3.8 3.8 2.6 2.6 3.8 Incline section All exercise figures will be displayed on the computer display screen when you start to do exercise, and the figures will be scan automatically during exercise.
  • Page 53 figures will be scan automatically during exercise. To increase or decrease the speed while exercising, press the SPEED “UP /DOWN“ button, To switch the screen display while exercising, press the “MODE” button to switch the “( PROG. / DIST. ) , ( PULSE / INCLINE ) , (CAL.
  • Page 54 Max. Pulse will be calculated automatically Time setting After inputting the default Max. Pulse, press the STOP/ENTER button to confirm,, the TIME display will show the workout time setting of “30:00”, press the “UP /DOWN ” button to adjust workout time then press “STOP/ENTER”...
  • Page 55 PULSE does not reach the target workout pulse, the incline will increase one level every 30 seconds automatically. “ The preset estimate normal pulse” is equal to Default Max. Pulse/0.85 *0.65, for example, the Preset target workout Max. pulse rate is 161, then the preset estimate normal pulse will be “161/0.85*0.65=123”...
  • Page 56 COOL DOWN –Heart rate program After completing the Target pulse and the TIME counts down to zero there is a one-minute COOL DOWN program. The TIME display will show “COOL” for 10 seconds and start flashing. The SPEED will return to 20 watts as the time counts down from 1:00 (including the 10 seconds ‘COOL’...
  • Page 57 Heart Rate diagram You can calculate the target-heartrate for your training as follows: Maximum heartrate = 220 minus age For the different training targets you should train with the following percentage of your maximum heartrate: Health/Fat Burning: 50 – 70% of your max. heartrate Fitness/Bodyshaping: 70 –...
