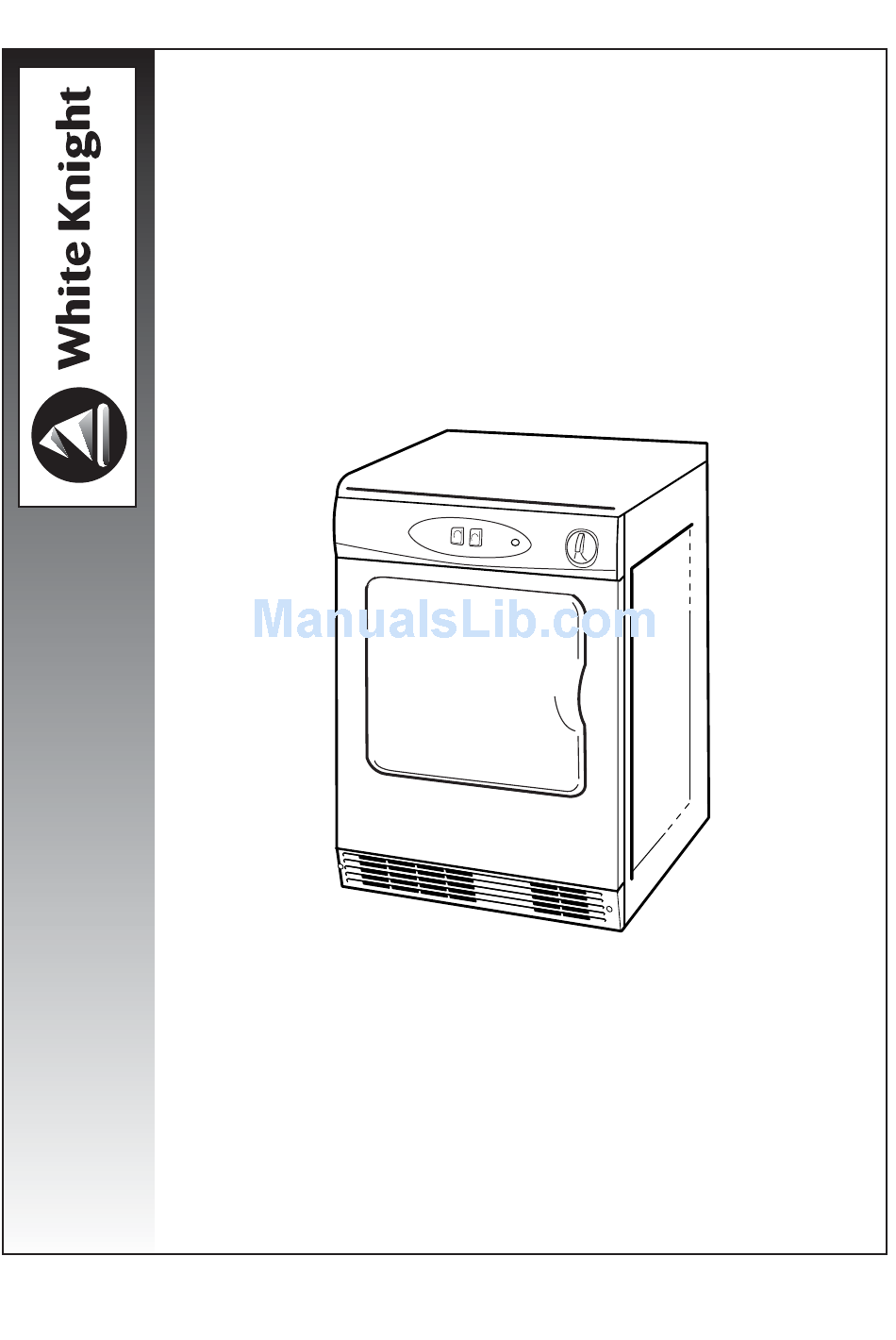

- Page 1 Service Manual White Knight Rotary Sensing Air Vented Dryer 0312 83A 15100 Wiring Diagram Exploded Views Parts List October 2011...
- Page 2 Large Door Air Vented Dryer - Exploded View 1 235a 248a...
- Page 3 Large Door Air Vented Dryer - Exploded View 2...
- Page 4 Rotary Sensing Air Vented Dryer - Wiring Diagram Anticrease Neon ST-SW K D D 8 Position 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 Rotary Selector TB-L B/K D-SW TB-N...
- Page 5 White Knight Large Door Electronic Sensing Air Vented Dryer - Parts List Item Description Part Number Expl.View Motor & 8µf Capacitor Assembly 4213 092 46231 Capacitor Assembly 8uf 4213 092 08091 Drive Belt 4213 092 46241 Mains Cable 4213 076 35123...
- Page 6 White Knight Large Door Electronic Sensing Air Vented Dryer - Parts List Front Bearing 4213 092 37511 4213 077 40896 Access Cover Assembly 4213 092 18081 Spring Clip (fan) 4213 075 71162 Filter 4213 092 31081 Duct Seal 4213 077 08932...
